Pressure Washer 44mm 100pcs Adjufix

Description

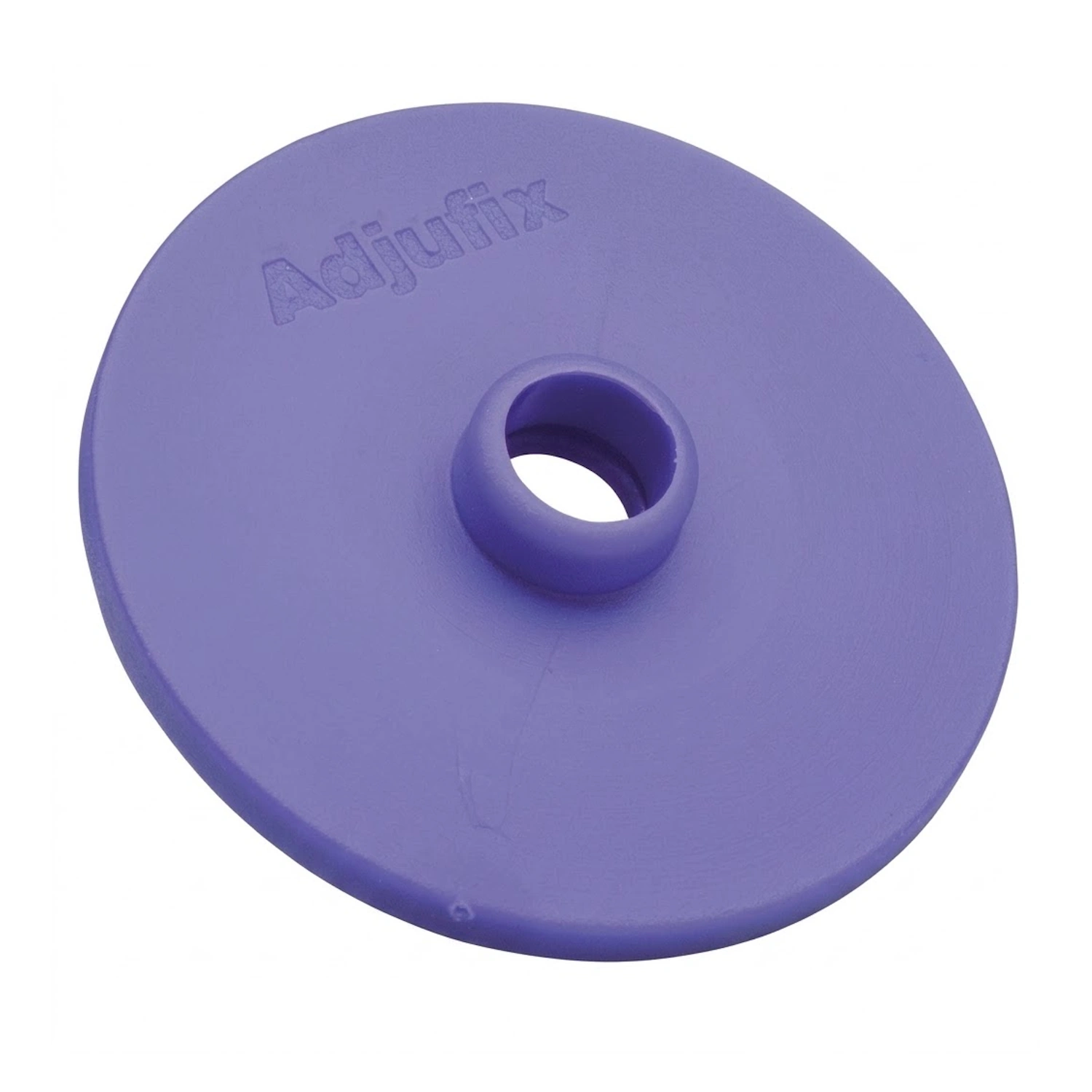

Adjufix pressure washer 44 mm is an indispensable accessory for a professional and stable installation of window and door frames. The washer is attached directly to the Adjufix frame sleeve and functions as a pressure distributor between the end of the sleeve and the wall material. By spreading the contact pressure over a 44 mm large surface, the washer prevents the sleeve from being pressed into porous substrates during readjustment or settlement in the structure.

Areas of use for 44 mm pressure washers

The pressure distribution washer is specially developed for two critical installation situations:

• Porous and brittle facade materials: When attaching to materials with lower compressive strength - such as lightweight concrete (Siporex/Ytong), Leca blocks, lightweight clinker and hollow bricks. The washer prevents the substrate from being crushed or crumbled under load.
• Heavy wooden frame sections: When installing extra heavy exterior doors, fire doors, lift-and-slide sections and large window sections where the frame's own weight and movement require maximum contact surface and load-bearing capacity.

Properties and benefits

• Protects the wall material: Spreads the load evenly and minimizes the risk of settlement and cracking in the substrate.
• Easy application: Clicks or threads smoothly onto the Adjufix frame sleeve before the frame is placed in place and adjusted.
• Precise adjustment maintained: Ensures that the frame sleeve maintains its exact setting dimension without digging into the wall over time.
• Cost-effective bulk pack: Supplied in a pack of 100 – suitable for both professional craftsmen and larger renovation projects.

How to install the Adjufix pressure washer

• Preparation: Check that the frame sleeves are installed and centered in the frame according to the supplier's instructions.
• Installing the washer: Place the pressure washer over the outer end of the Adjufix sleeve so that the flat contact surface faces outwards towards the sill/wall.
• Positioning: Lift the frame into place in the opening. The washer now lies between the sleeve and the wall construction.
• Adjustment & Anchoring: Screw in the cam screw/fixing screw through the sleeve into the pre-drilled base. Adjust the frame with the Adjufix key to perfect plumb and level. The washer ensures that the sleeve is not pressed into the Leca or lightweight concrete wall during tightening.

Specifications

• Product type: Pressure washer / Pressure distribution washer
• Diameter: 44 mm
• Compatibility: Adjufix frame sleeves (wooden and aluminum frames)
• Suitable substrates: Lightweight concrete, Leca, hollow brick, sand-lime brick, wood
• Quantity per package: 100 pcs
