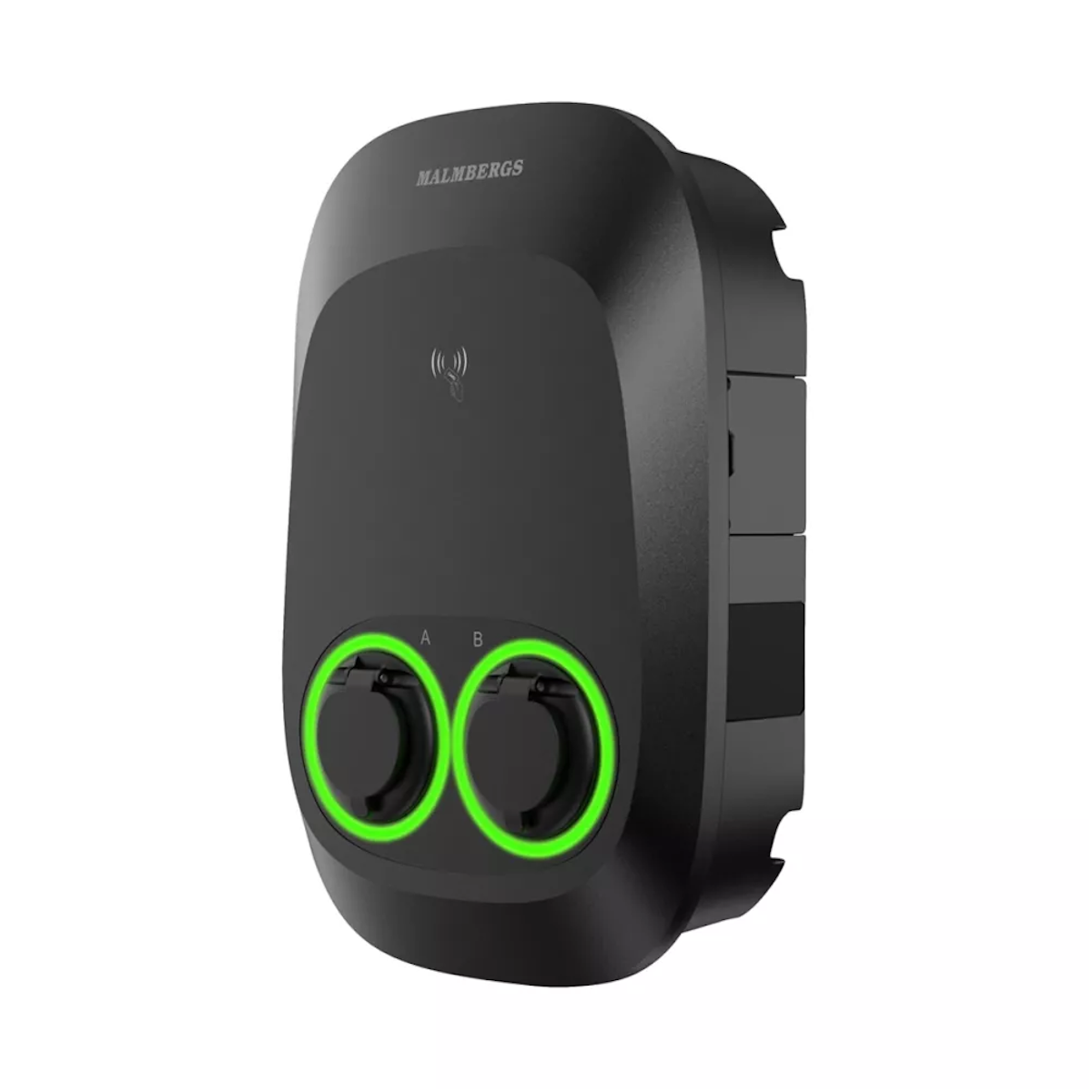

Charging Station Evon Dual 32A 22kW 400V 3-Phase With Outlet MID Type 2 IP54 Malmbergs 2700677

Description

Optimize your electric car charging with Malmbergs EVON DUAL, a user-friendly and robust charging box designed for both private homes and public environments such as BRF or workplaces. With a total charging power of up to 22kW (2x11kW) and smart connection options, this box offers a future-proof solution for households with multiple electric cars.

Smart control and precise measurement with MID approval

This model is equipped with a MID-approved energy meter, which enables precise billing and monitoring of electricity consumption. Manage your charging easily via the EVCHARGO app, RFID card or direct connection. Thanks to support for WiFi, 4G, Ethernet and Bluetooth, you are always connected even in environments with poor coverage.

Key features

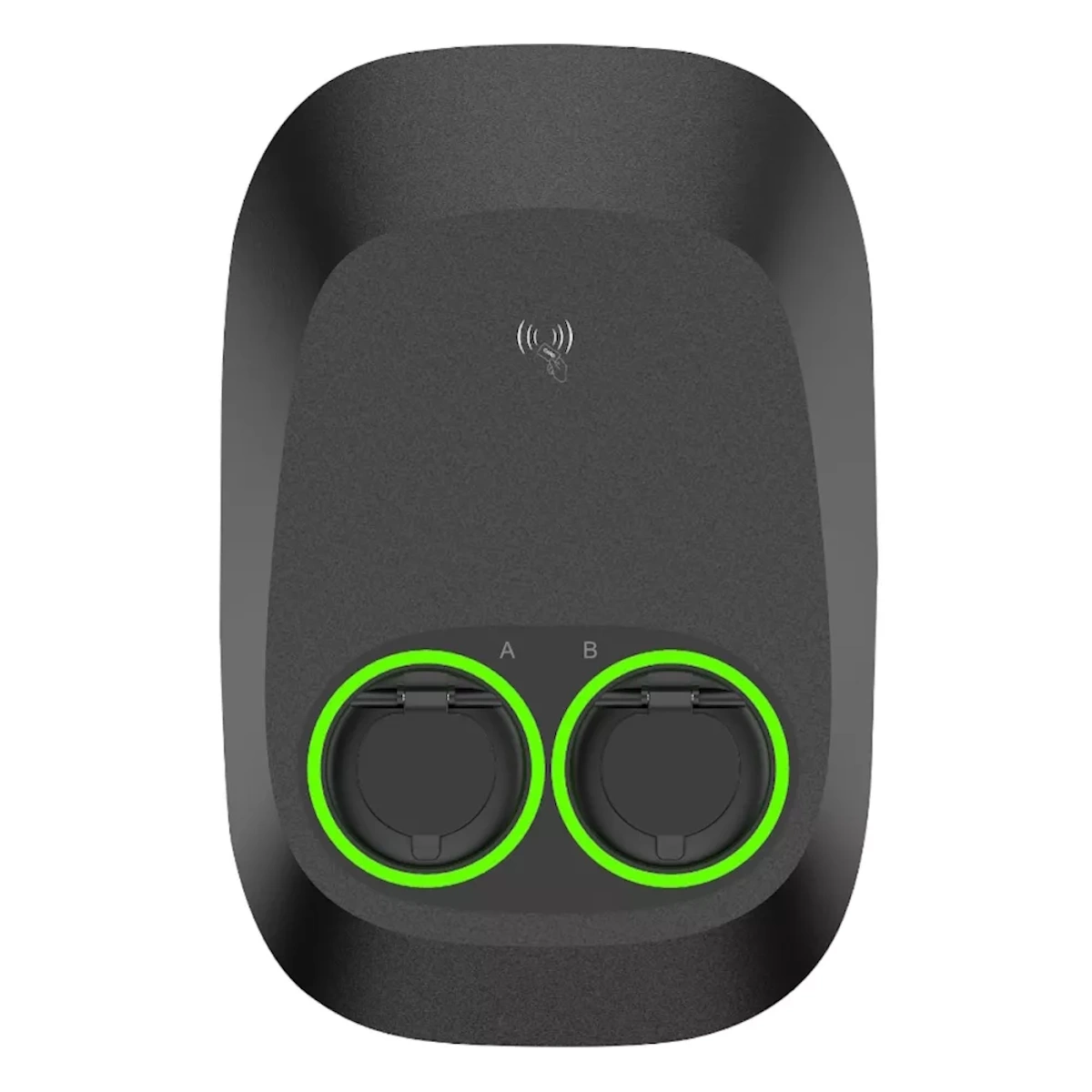

• Dual Type 2 sockets: Charge two cars simultaneously with 11kW per socket.
• Highest safety: Built-in personal protection switch Type A and 6mA DC fault current protection.
• Future-proof connection: WiFi, 4G (incl. SIM card), Ethernet and Bluetooth.
• MID-Certified: Precise measurement for billing purposes.
• Long-term security: Full 5-year warranty from Malmbergs.

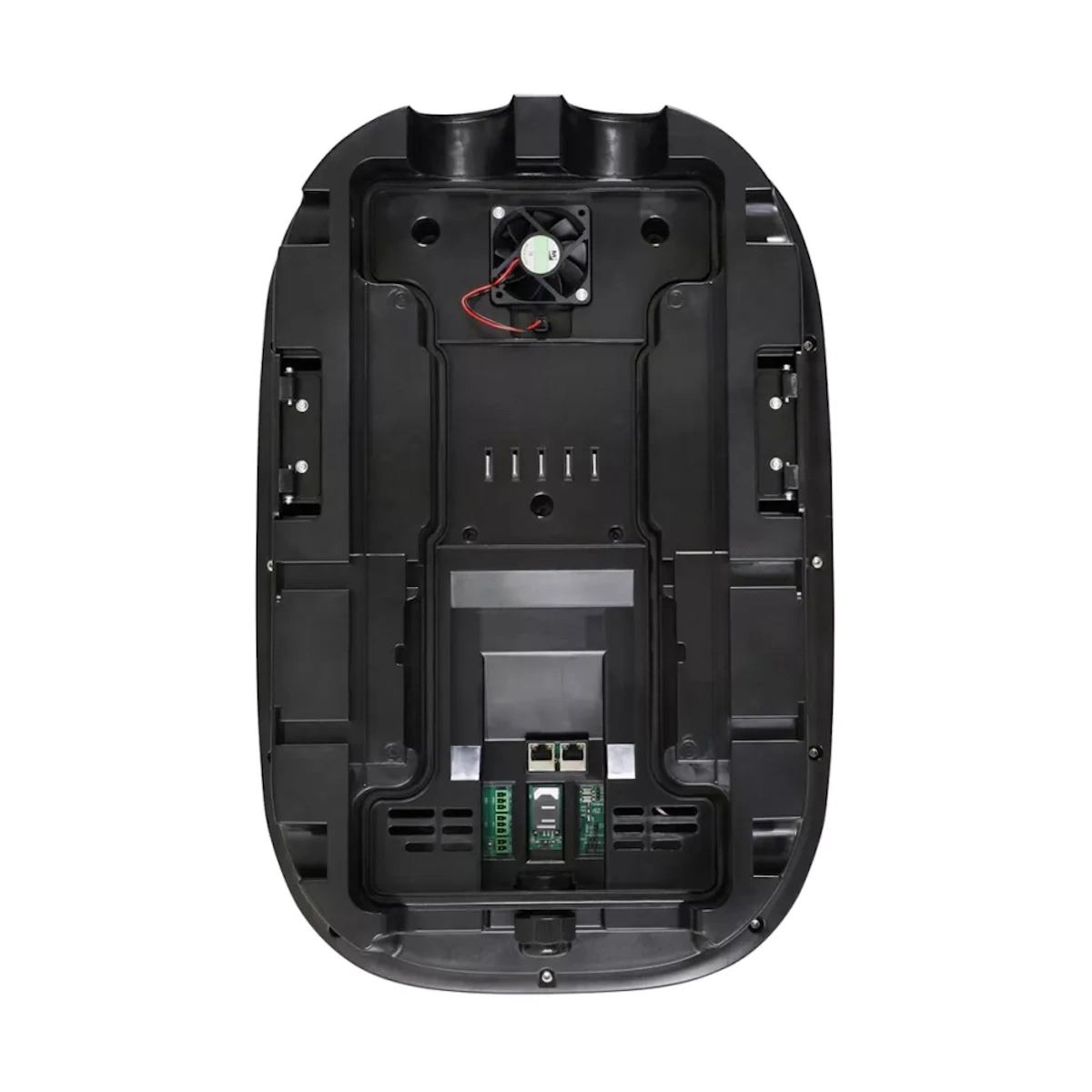

• Easy installation: Generous space and smart base plate reduce installation time.

Specifications

• Connection: Terminal 25 mm² (100A)
• Number of phases: 3-phase alt. 1-phase
• Working range humidity: 5-95%
• Certificates: CE, RoHS, Tested by TÜV Rheinland
• Energy measurement: Yes
• Frequency: 50/60Hz
• Features: Overcurrent protection, Earth fault protection, Over/undervoltage protection, Over/under frequency protection, Overheat protection, Short circuit protection
• Colour: Black

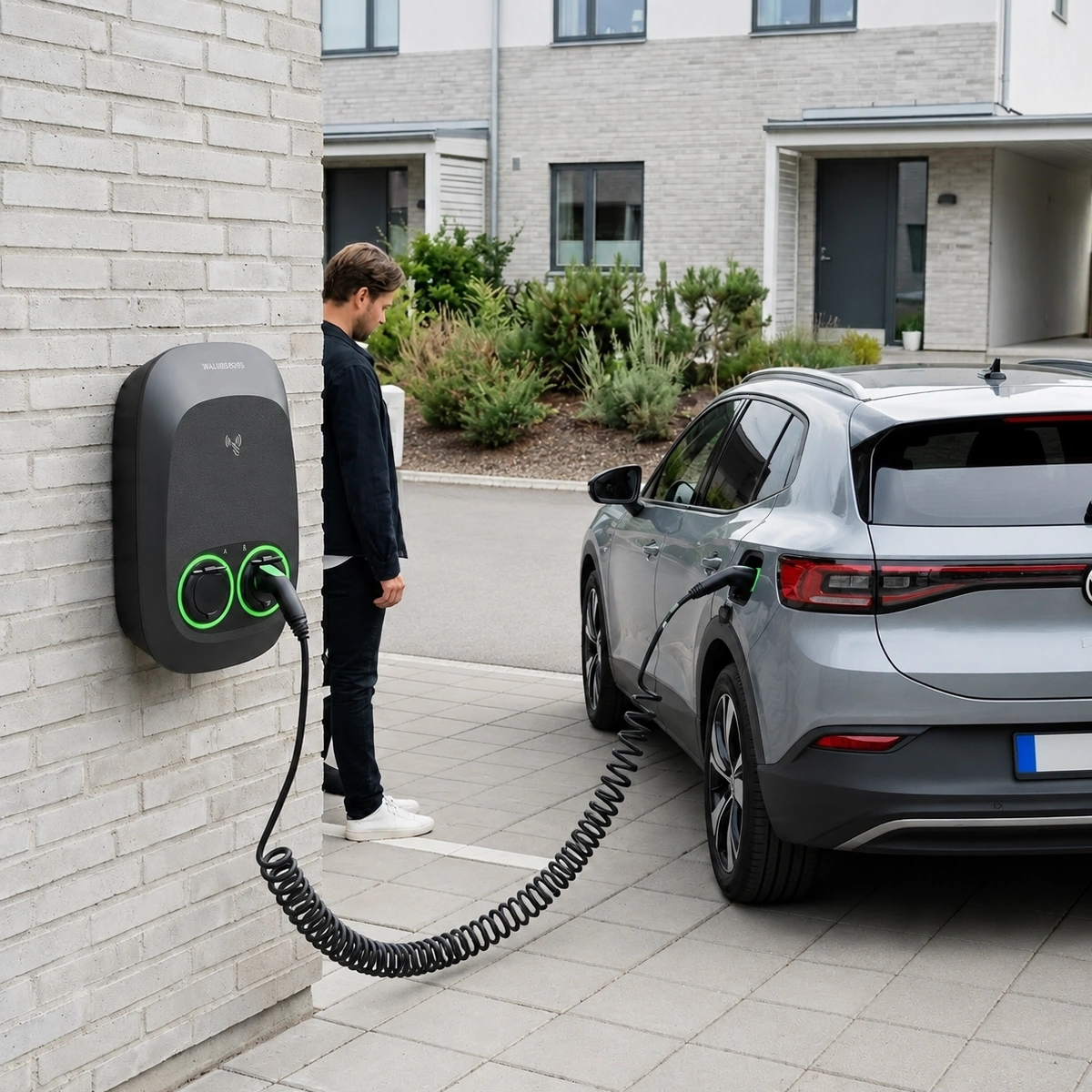

• Installation: Wall mounting or on pole
• Ground system: TN, IT, TT
• Protection class: IP54
• Communication: WiFi / Ethernet / Bluetooth / 4G
• Charging connector: 2x Type 2
• LED indicator light: Green/Yellow/Red
• Material: PC (polycarbonate)
• Max. power: 22kW
• Max. rated current: 32A
• Dimensions (WxHxD): 369x559x198 mm
• Rated power: 22kW
• Rated voltage: 400V AC

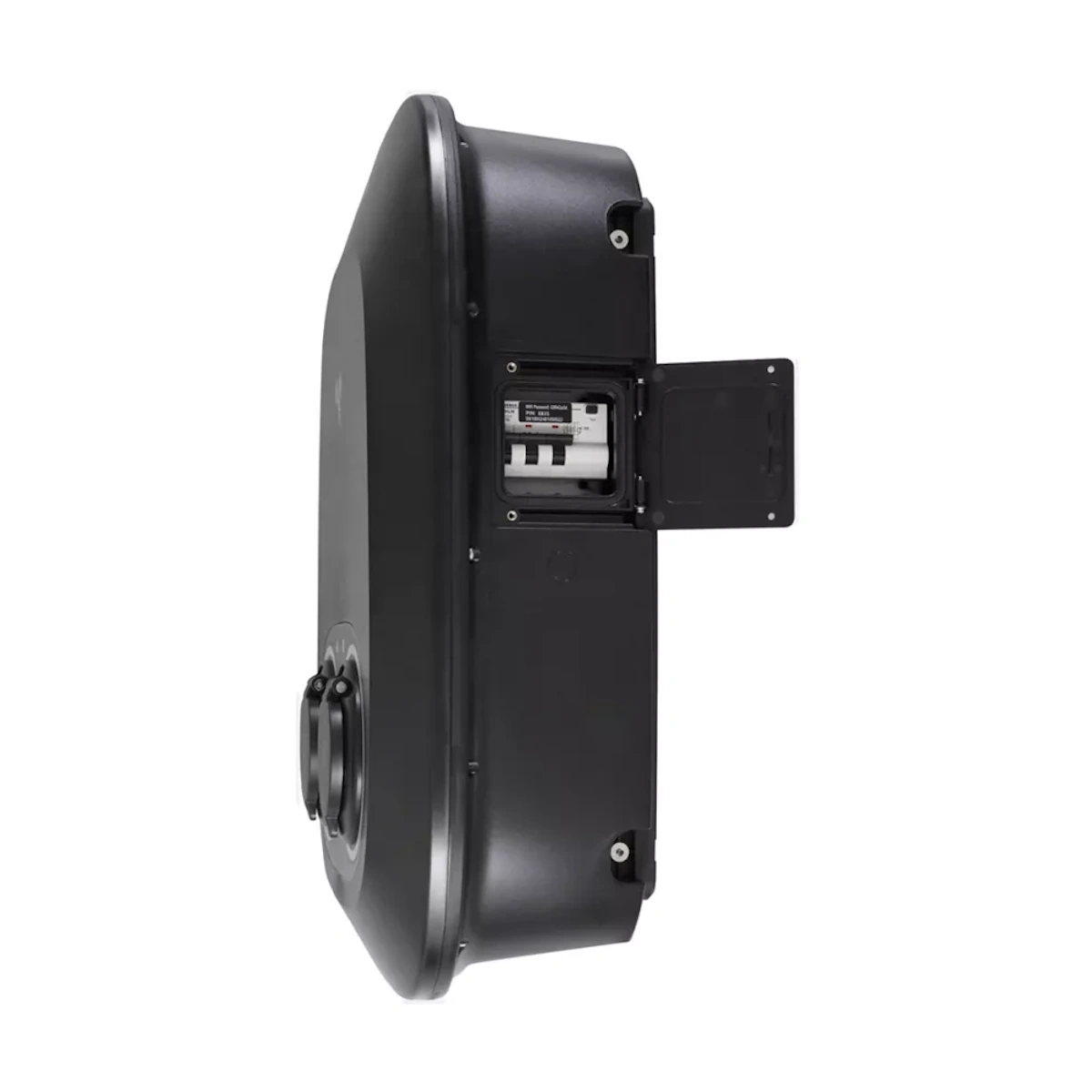

• Personal protection switch: 40A 30mA Type A + 6mA DC
• Protocol: OCPP1.6 Json
• RFID: Mifare ISO/IEC 14443A
• Impact resistance: IK10
• Standards: EN IEC 61851-1:2019, EN IEC 61851-21:2021, IEC 62955:2018, IEC 62321
• Start mode: RFID tag (4 pcs) / APP / Direct charging
• Power supply: 3P+N+J
• Load balancing support: Yes
• Temperature range: -30°C - +50°C
• Design: With socket MID
• Output voltage: 400V AC
• Warranty: 5 years
