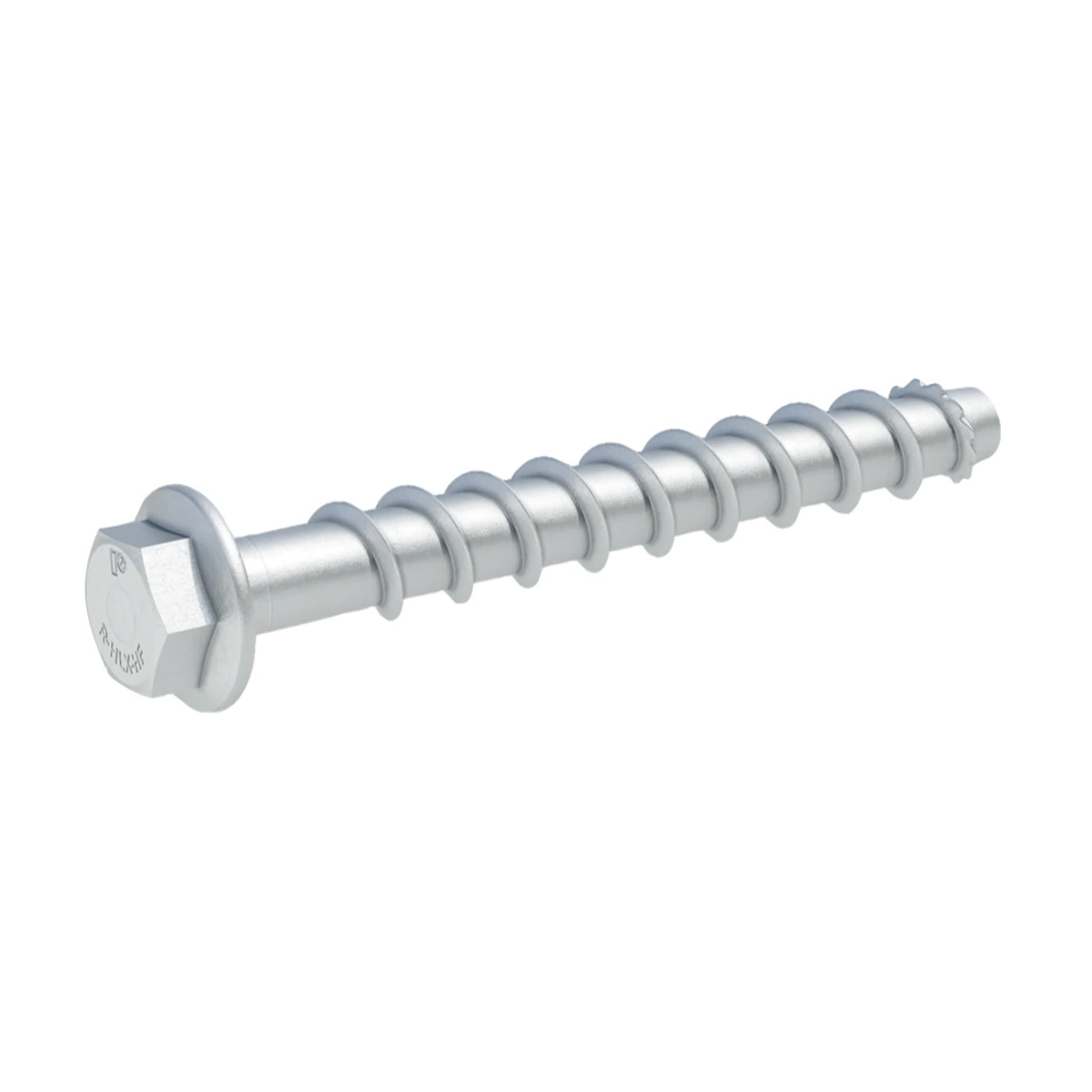

Concrete Screw HLX-HF Zinc Flake C4 8x75mm 25pcs Fast 288318

Description

Fast HLX-HF is a high-performance concrete screw with hexagon head and integrated flange, created for quick and safe installation in both cracked (Option 1) and non-cracked concrete (Option 7). The extra cutting teeth in the tip allow the screw to easily penetrate harder materials, making installation both quick and easy - even if you encounter reinforced concrete (C20/25 to C50/60).

Since the concrete screw is non-expanding, stresses in the substrate are minimized. This makes HLX-HF ideal for installation near edges or where the attachment points are close together without the risk of the concrete cracking. The screw is also fully demountable and reusable, making it the perfect choice for both permanent and temporary constructions.

Maximum corrosion protection and seismic approval

With the ZFmax surface treatment, the screw achieves corrosivity class C4, which provides very high protection against rust and makes it perform excellently in outdoor environments. The HLX-HF is ETA-assessed (ETA-23/0707) and approved for use in earthquake-prone zones (seismic category C1 and C2), which confirms its extreme reliability under high loads.

Product features

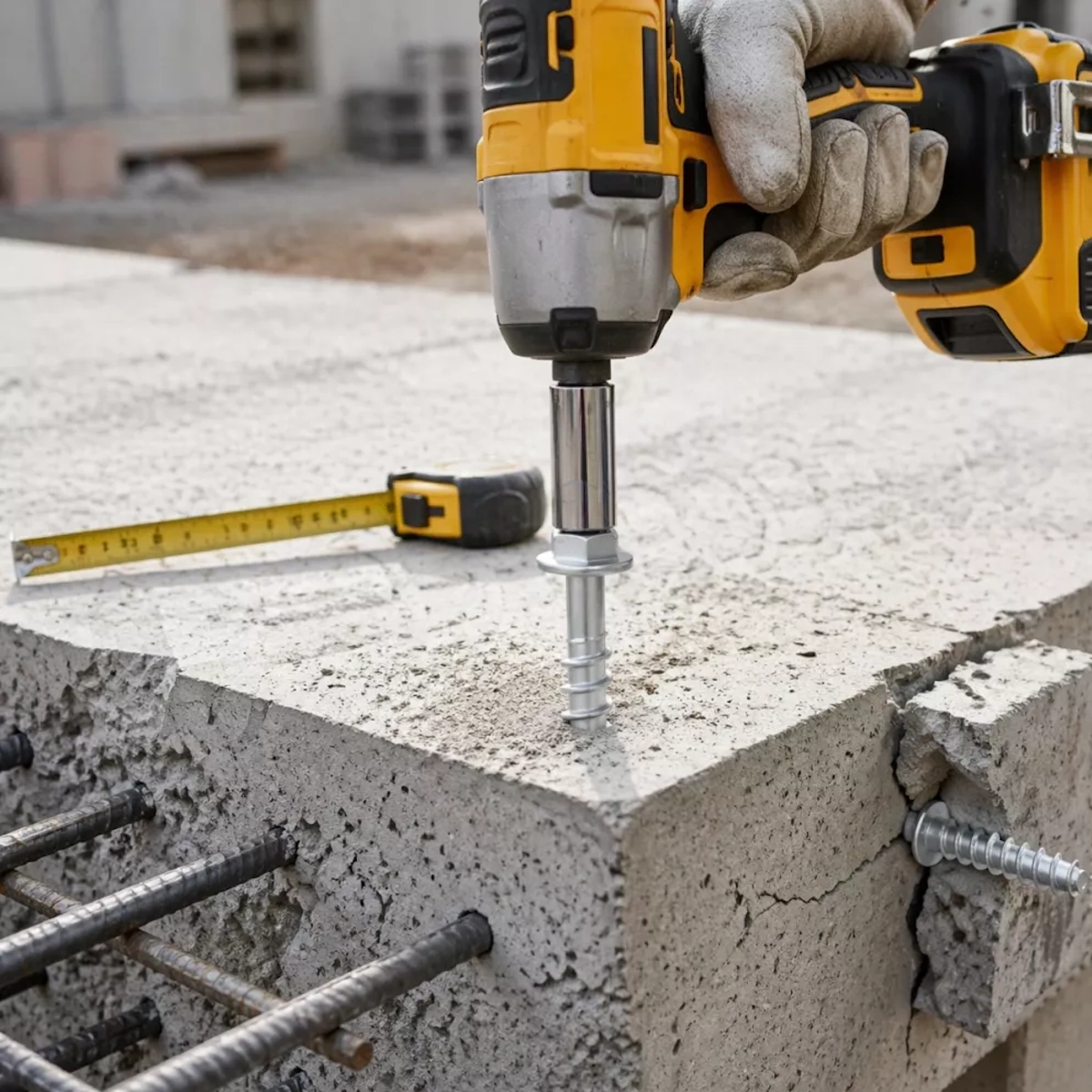

• Fast installation: Time-saving process – just drill the hole and drive the screw in directly.
• Reinforcement protection: Equipped with extra cutting teeth at the tip for smooth cutting in reinforced concrete.
• Close-to-edge installation: Non-expanding function provides low risk of damage and allows installation close to edges.
• Reusable: Can be dismantled and reused, optimal for temporary installations.
• Highest safety: Approved for cracked/non-cracked concrete and seismic performance (class C1 & C2).
• ETA-assessed: Certified according to ETA-23/0707.
• Corrosion class C4: Surface treated with ZFmax for strong protection against weather and wind.
• Important when installing: Always drill the hole 10 mm deeper than the actual insertion depth of the screw requires to allow for drilling dust.

Technical Data

Uncracked concrete C20/25 – Tensile force Nrec

• Standard installation depth: 9.81 kN
• Reduced installation depth: 6.61 kN
• Minimum installation depth: 5.67 kN

Cracked concrete C20/25 – Tensile force Nrec

• Standard installation depth: 5.24 kN
• Reduced installation depth: 4.29 kN
• Minimum installation depth: 3.81 kN

Specifications

• Model: HLX-HF (Hexagon Head with Flange)
• Dimension (Diameter x Length): 8 x 75 mm
• Surface treatment: Zinc flake (ZF) – High corrosion resistance
• Corrosivity class: C4 (Outdoor environments)
• Head type: Hexagon head with flange
• Drill diameter: 8mm
• Wrench size: 13mm
• Min installation depth: 60mm
• Quantity/pack: 25pcs
