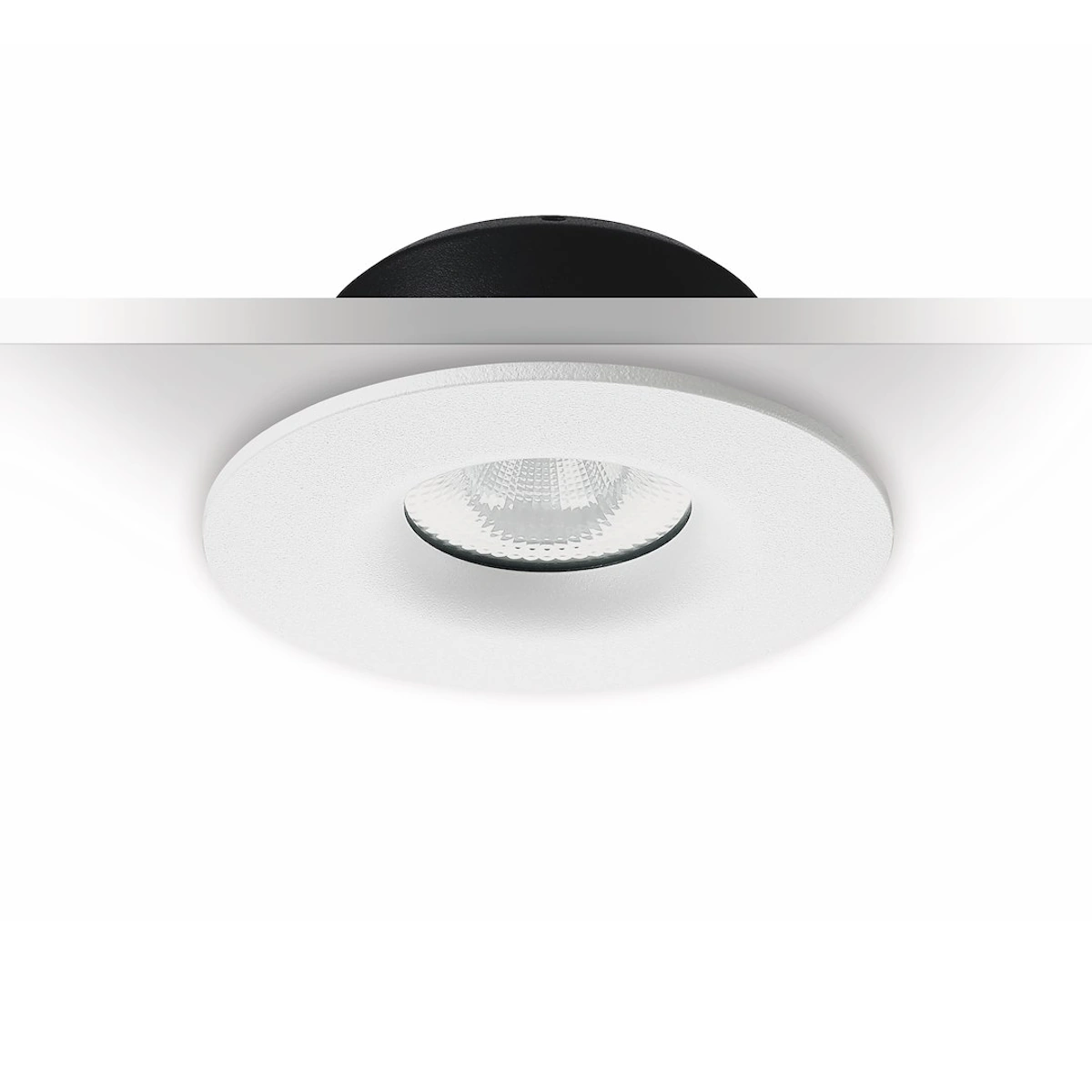

Downlight Picard LED 350mA 3.15W 9V DC 2700K 380lm IP44 White Malmbergs 9974620

Description

This recessed LED luminaire combines modern design with maximum safety and flexibility. Thanks to the luminaire's unique construction, it is approved for mounting directly against insulation, which makes the installation process both faster and easier because you avoid time-consuming and bulky protective boxes.

The luminaire requires a LED driver (driver) for constant current to function optimally and safely. To achieve the best possible performance and lifespan, we recommend the following compatible drivers:

• Malmbergs 7392529149234 (the standard choice for smooth light control)
• Malmbergs 7392529137118 (an excellent alternative for flexible control systems)

The benefits:

• Mounting directly against insulation: Approved for installation without bulky and expensive protective boxes.
• Fast and cost-effective: Saves valuable working time and reduces material costs during installation.
• High fire safety: Designed for low heat generation, which guarantees safe and secure operation in the ceiling.
• Stable constant current: Requires external driver, which provides a flicker-free light image and maximizes the lifespan of the LED chip.
• Guaranteed compatibility: Tested and optimized for safe operation and smooth dimming with driver 7392529149234 alt. 7392529137118.
• Energy-smart lighting: Modern LED technology that provides a bright, pleasant light with minimal energy consumption.

Technical Information

• Power: 3.15W
• Energy class: A--A++
• Color temperature: 2700K
• Color tolerance: 4 SDCM
• Color rendering: Ra>80
• Protection class: IP44
• Lifespan: LED: 50,000 hours.
• Luminous flux: 380 lm
• Brightness: 530 cd
• Spread angle: 36°
• Voltage: 9 DC V
• Current: 350mA

Specifications

• Color: White
• For holes: 70-83 mm
• Installation depth: 34 mm
• Dimensions: 95x38 mm
