NIBE IU33 Electric Immersion Heater 2250W

Description

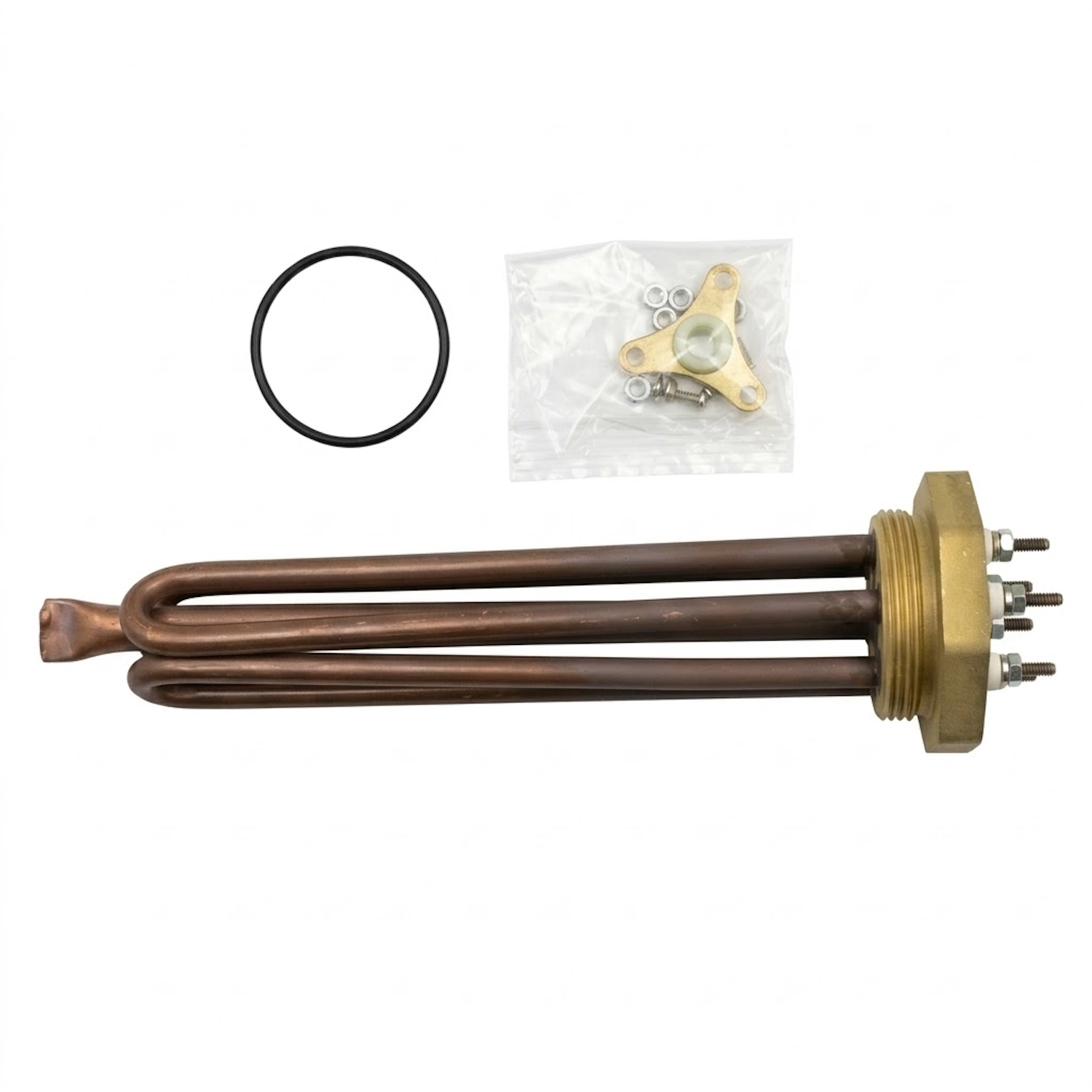

NIBE IU33 is a high-quality and efficient immersion heater designed for reliable heating in water heaters and storage tanks. Made with a durable copper cartridge element, this model offers excellent heat transfer and a long service life. With a standardized R50 thread (G 50 / 2 inch) and an insertion length of 260 mm, the immersion heater is easy to install in compatible systems. The immersion heater delivers an output of 2250 W (2.25 kW) and can be connected to both 230 V and 400 V for flexible adaptation to the facility's electrical installation and heating needs.

Key features and benefits

• High material quality: Made of copper for good corrosion resistance and optimal thermal conductivity.
• Standardized connection: R50 thread enables easy installation and a good fit in adapted spigots and threaded connections.
• Compact design: Insertion length of 260 mm makes it ideal even in spaces with limited depth.
• Versatile electrical data: Designed for 230 V and 400 V rated voltage for flexible installation.
• Stable operation: Provides a continuous output of 2.25 kW for effective additional heat or primary heating.

Areas of application and compatibility

NIBE IU33 is perfect as a backup heat, additional heat or regular heat source in water-borne systems. It is often used in combination with:

• Water heaters
• Accumulator tanks
• Heat pump systems with docking option
• Complementary heating systems

Technical specifications

• Product type: Immersion heater
• Model: NIBE IU33
• Material: Copper
• Thread connection: R50 (G 50)
• Insert length: 260 mm
• Power: 2250 W (2.25 kW)
• Connected load: 2250 kW
• Rated voltage 1: 230 V
• Rated voltage 2: 400 V
