Lift Hinge Left 3220 Förz-100 100x82mm Assa Abloy

Description

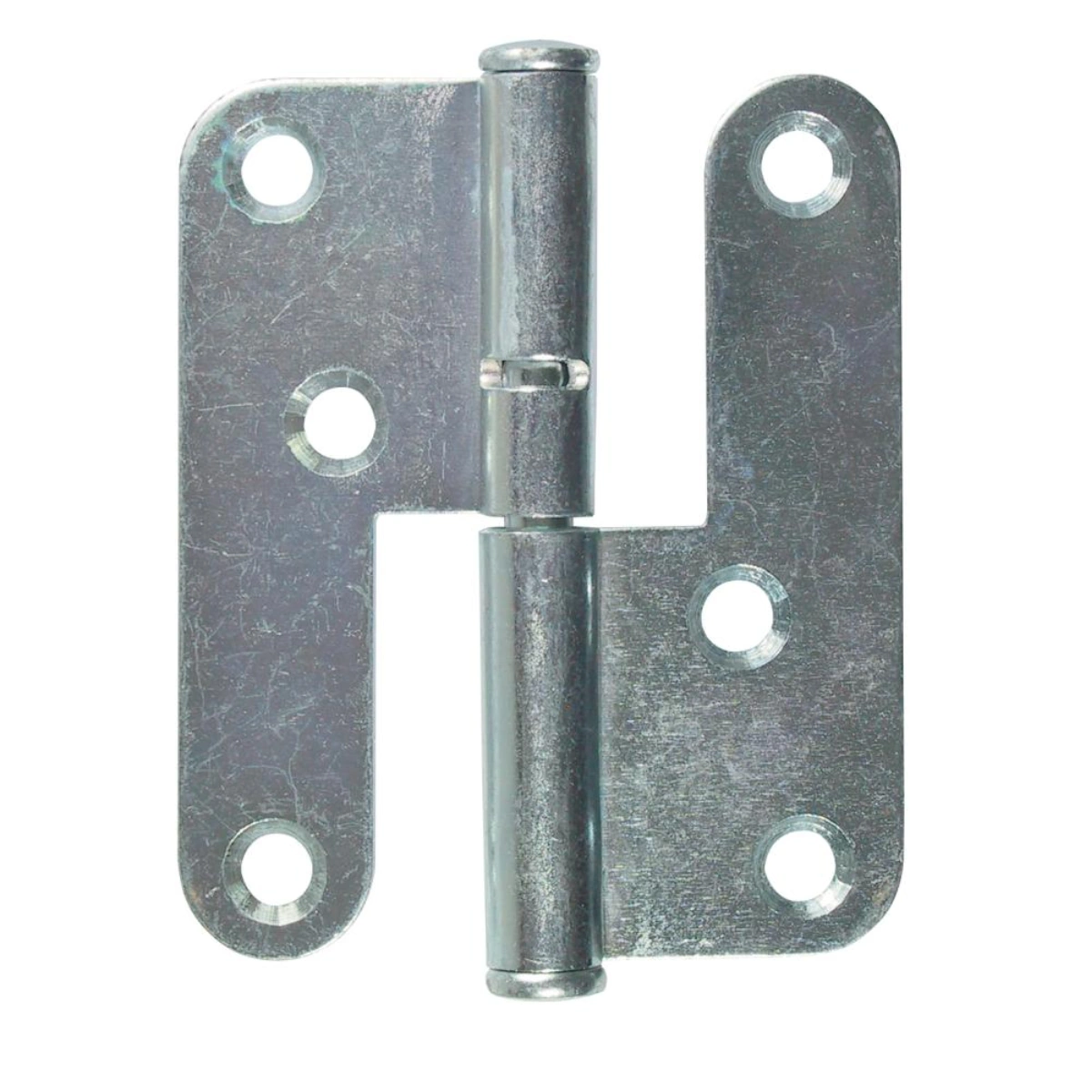

Durable and reliable lift hinge from Assa Abloy adapted for left-hung doors and windows. Model 3220 is a classic pin bearing hinge equipped with hardened steel pins, which provides optimal load-bearing capacity, smooth operation and long service life under daily load. The hinge is surface-treated in bright galvanized steel, which provides effective corrosion protection for indoor environments and protected exterior areas. The design makes it easy to lift off the door or window leaf for maintenance, painting or installation without unscrewing the hinge brackets.

Key Features and Benefits

• High load-bearing capacity and durability: Equipped with a hardened steel pin that minimizes wear and prevents the door from sagging over time.
• Smooth lifting: The lifting hinge design means that the door or window can be quickly hooked on and off when needed.

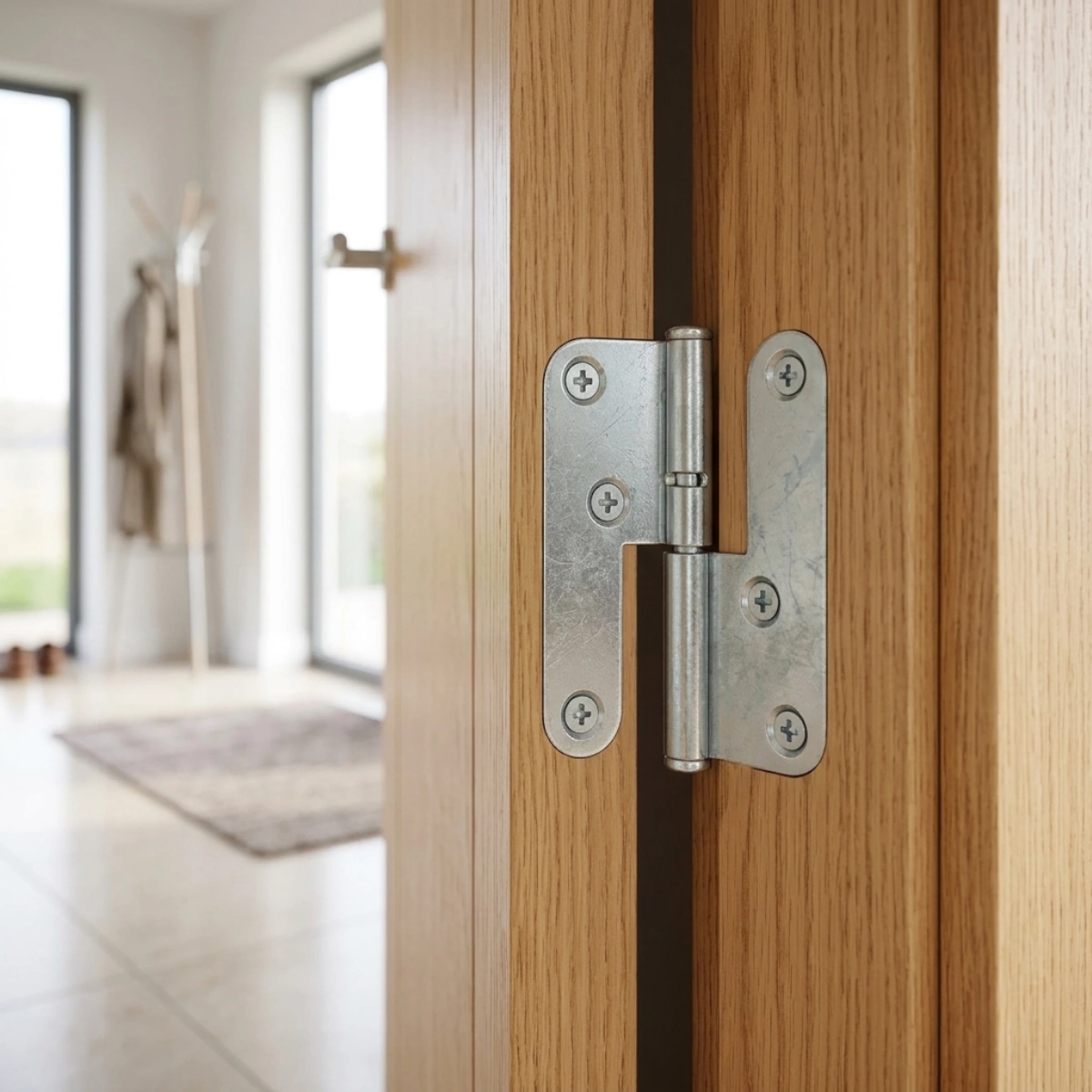

• Versatile use: Perfect for unrebated interior doors, exterior doors and outward-opening French doors/windows.
• Corrosion protection: Galvanized surface for increased resistance and a neutral, stylish finish.

Specifications

• Type: Lift-up hinge (Pin-bearing)
• Hanging / Direction: Left (DIN Left)
• Dimensions (Height x Width): 100 x 82mm
• Material: Steel with hardened steel pin
• Surface treatment: Zinc plated (Electro-galvanized/Bright zinc plated)
• Area of use: Unrebated doors, outward-opening windows and French doors
