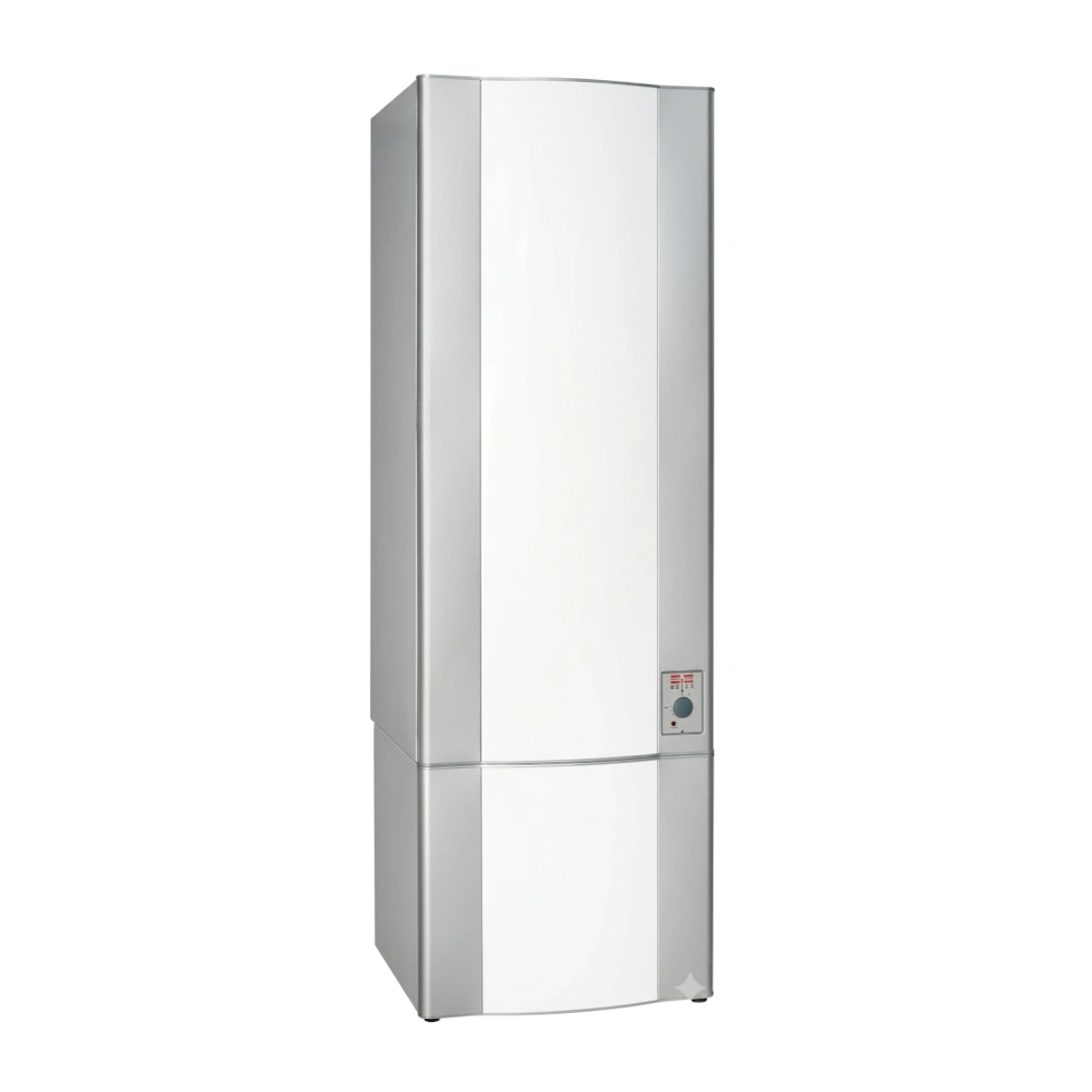

Metro Therm Water Heater Module 200 R

Description

Metro Therm Modul 200 R is a powerful water heater in a convenient 60x60 modular format. With its well-thought-out design and high performance, it provides worry-free hot water comfort for a long time to come. The volume of approximately 200 liters is easily enough to fill a bathtub or for 2-3 ten-minute showers in succession. Thanks to the efficient immersion heater, the water heater recovers quickly, so the next person doesn't have to worry about cold showers.

Easy installation and long service life

The Metro Therm Modul is just as appreciated by homeowners for its operational reliability as it is by installers for its spacious connection space. It is supplied complete with a fitting set (safety valve, mixing valve and shut-off valve). Thanks to adjustable feet, it stands firmly even on uneven surfaces in the laundry room or basement.

Stainless steel corrosion protection for optimal water

The pressure vessel is made of stainless steel, which provides strong and long-lasting corrosion protection and a lower net weight compared to enameled models. This stainless steel water heater is particularly suitable for you with:

• Low pH value (acidic water)
• Carbonated water
• Water with low chloride content

Important about your water quality: If you have hard water or water with a high chloride content, you should not choose a stainless steel water heater. For these types of water, we recommend an enamelled water heater from the Metro Therms Modul series instead.

Flexible electrical connection for maximum power

For maximum power, the connection cable is adapted for fixed installation to 2-phase (3 kW), which provides very fast heating. The heater can also be connected to 1-phase with a plug (1 kW) if that suits your home better.

Specifications

• Volume: 198 Litres
• Corrosion protection: Stainless steel
• Type: Water heater
• Thermostat: Traditional
• Pipe connection: Down
• Type name: Type 2002R
• Dimensions (HxWxD): 1450x595x615mm
• Fitting Diameter / C-C: Diameter 22 / 150 mm
• Power 230V: 1 kW
• Power 400V: 3 kW
• Electrical connection: Yes
• Heating time to 50° at 400 V (approx. min): 184
• Number of showers: 7 pcs 3 min
• Protection class: IP24
• Rated pressure (bar): 10
• Max. safety pressure: 13
