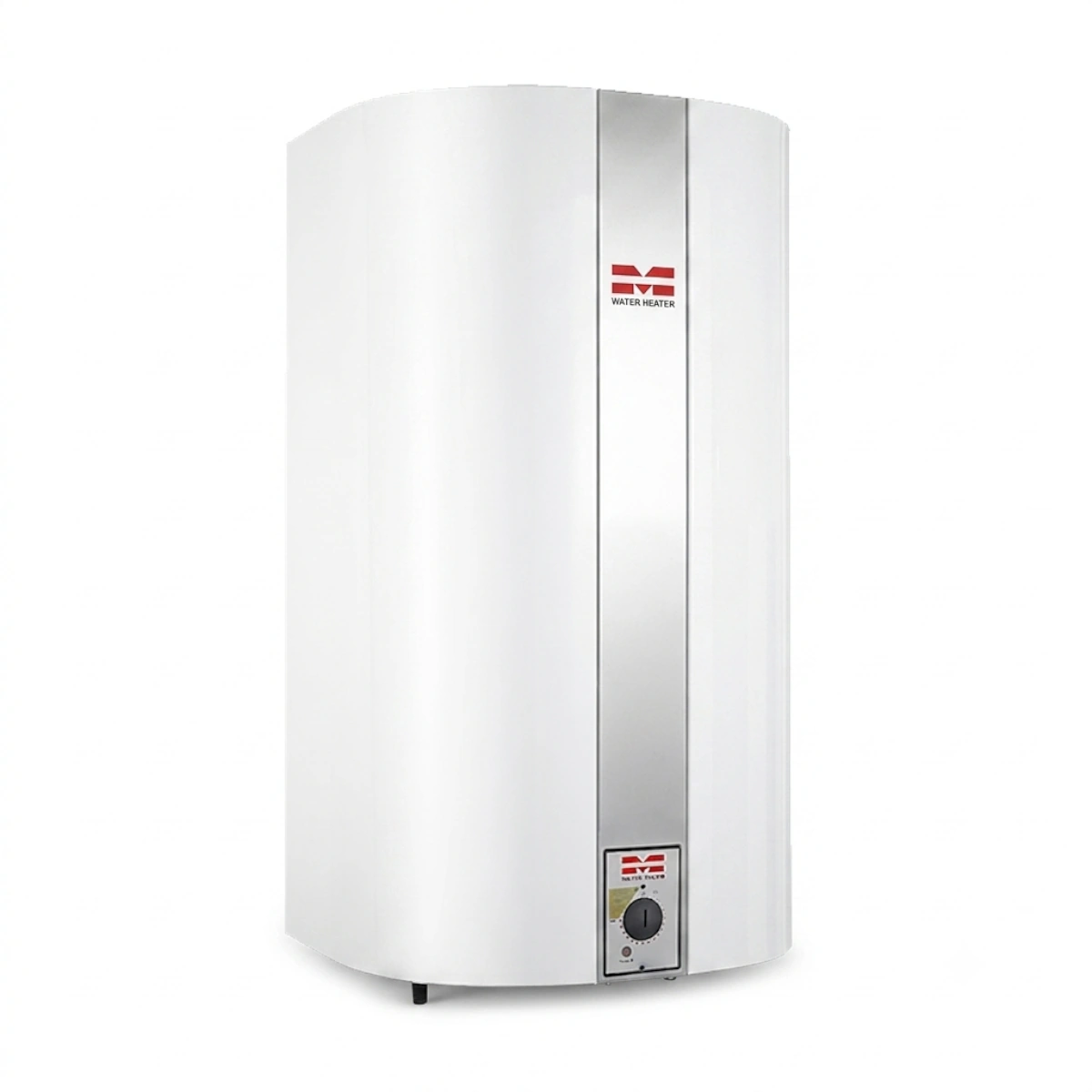

Metro Therm Water Heater Cabinet 60R

Description

The Metro Therm Cabinet series is known for its acclaimed Scandinavian design and is a test winner for its extremely low energy losses. With this compact water heater, you invest in worry-free and energy-efficient hot water comfort for a long time to come. The volume of the Metro Therm Cabinet 60 R is optimally adapted for the holiday home, the smaller year-round residence or households where the hot water requirement is more limited. The capacity is enough for 1-2 three-minute showers in a row, and thanks to the highly efficient immersion heater, the heater recovers very quickly.

Flexible installation and smart design

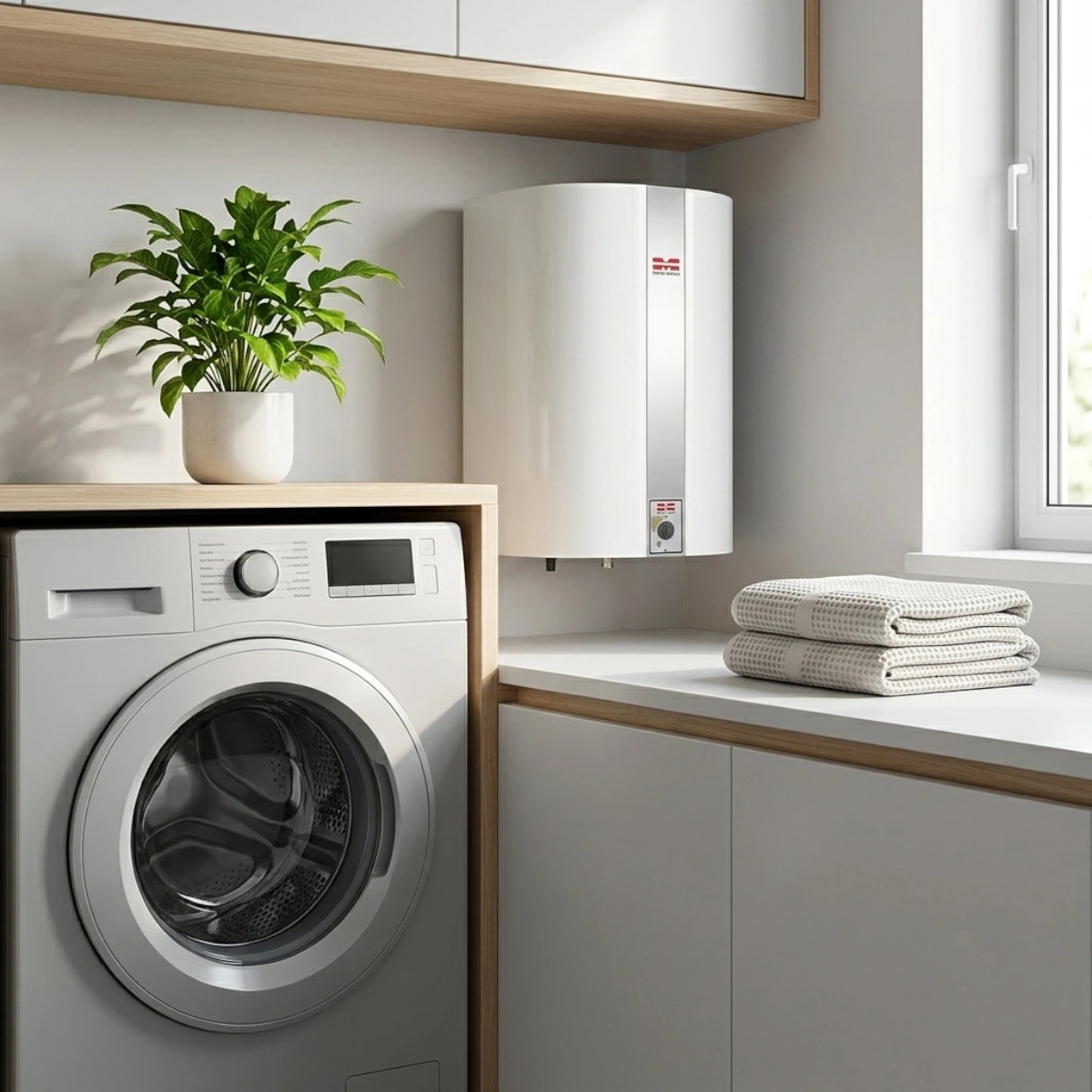

The Metro Therm Cabinet 60 R is a wall-mounted water heater that easily blends into modern homes and utility rooms. Don't have the opportunity to drill into the wall? No problem - a stable leg stand is available as an accessory for easy floor installation. The Cabinet series is also available in several sizes to suit your family's unique needs.

Technical specification and installation

• Complete fitting set included: Supplied with safety valve, mixing valve and shut-off valve.
• Flexible electrical connection: The immersion heater is 3 kW with fixed electrical installation (2-phase), which provides maximum power and the fastest heating. Can also be connected via 1-phase with a plug (then provides 1 kW power).
• Durable corrosion protection: The inner tank is made of high-quality stainless steel. This is the optimal choice for those with your own water that has a low pH value (acidic water) or is carbonated.

Note: If the water has high chloride levels, we recommend an enameled water heater from Metro Therm instead.

Specifications

• Volume: 56 Litres
• Corrosion protection: Stainless steel
• Type: Water heater
• Thermostat: Traditional
• Pipe connection: Down
• Type name: Type 622R
• Dimensions (HxWxD): 750x420x420mm
• Fitting Diameter / C-C: Diameter 15 / 150 mm
• Power 230V: 1 kW
• Power 400V: 3 kW
• Electrical connection: Yes
• Heating time to 50° at 400 V (approx. min): 56
• Number of showers: 2 pcs 3 min
• Protection class: IP24
• Qelec: 2,784
• Rated pressure (bar): 10
• Max safety pressure: 13
