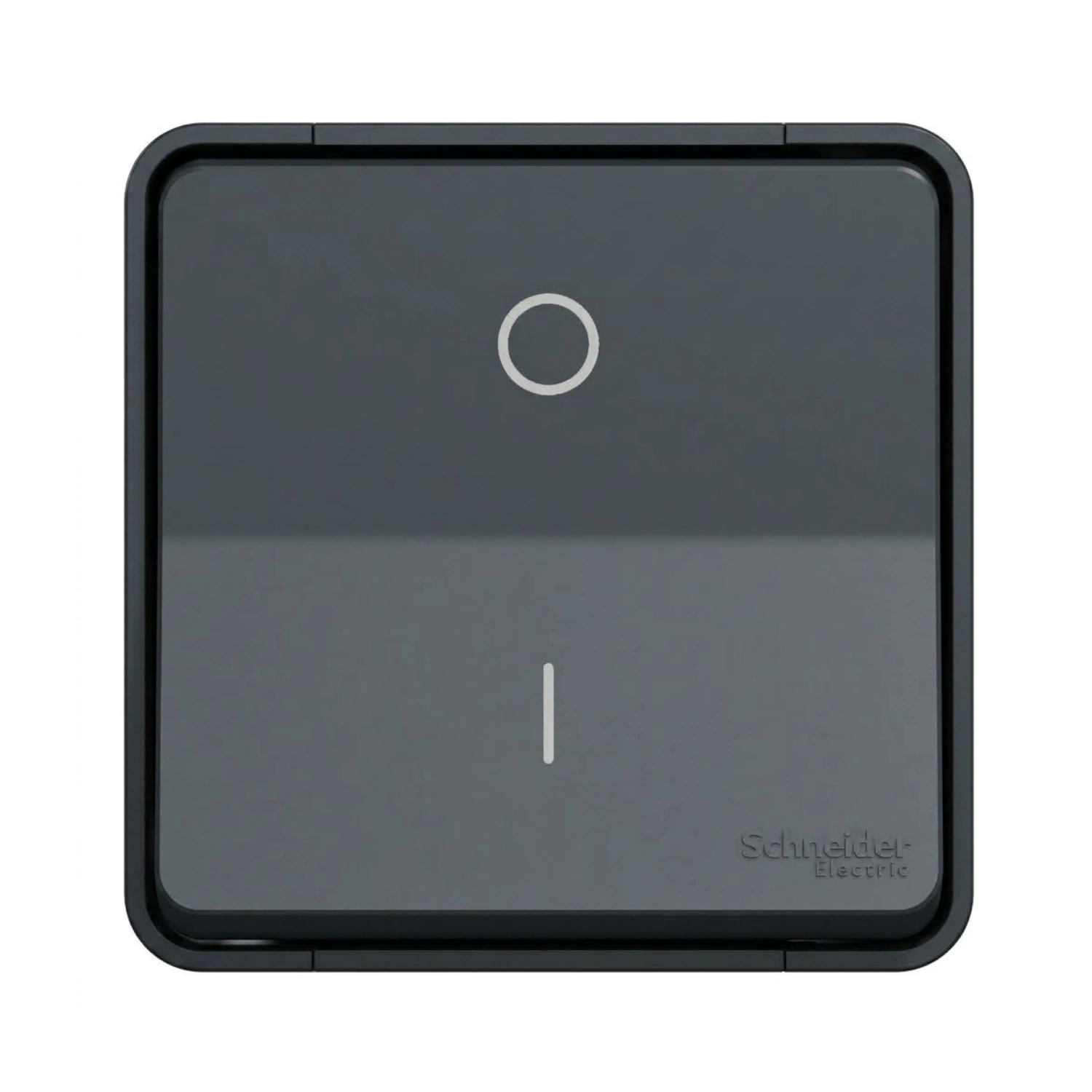

Switch Mureva Style 2Poles 16A 250V IP55 Grey Schneider Electric

Description

The Schneider Electric Mureva Style 2-poles switch is the perfect solution for both indoor and outdoor use. With its high IP55 rating, it guarantees effective protection against both dust and flushing water, making it ideal for garages, balconies, industrial premises and laundry rooms. Mureva Styl combines a modern, ergonomic design with maximum user-friendliness. This surface-mounted unit has a smooth click mechanism and is suitable for flexible, vertical or rigid cables (1.5-2.5 mm²). Made of high-quality, matt-finished thermoplastic in the classic grey shade RAL 7035 for long-lasting durability and a stylish finish.

Key Features

• Waterproof protection: IP55-rated for safe use in damp and demanding environments.
• High capacity: Rated current of 16A / 16AX (250V) suitable for both standard loads and fluorescent lamps.
• Easy installation: Surface-mounted screw mounting with quick access for cable connection.
• Durable material: Made of impact-resistant thermoplastic with a matt finish.

Main areas of use and environments

• Outdoor residential environments: Patios, balconies, storage rooms, garages, terraces and outdoor lighting exposed to rain and splashes.
• Indoor wet and damp rooms: Laundry rooms, basements, car washes, utility rooms and bathrooms where splash protection is required.
• Commercial and agricultural properties: Warehouses, workshops, greenhouses, stables and outbuildings requiring protection against dust and water jets.
• Industrial and technical areas: Factories, warehouses, loading docks and fan rooms exposed to airborne dust, dirt or hose cleaning.

Technical Suitability

• IP55 enclosure: Complete protection against harmful dust deposits and splashing water from all directions.
• 16AX marking for fluorescent and LED: Ideal for breaking heavy inductive lighting loads such as LED panels, fluorescent tubes and high-power outdoor lighting.
• 2-poles breaking: Breaks both phase and neutral simultaneously, which provides increased safety in outdoor or wet area installations.

Specifications

• Product series: Mureva Style
• Product type: 2-poles switch
• Rated current / Voltage: 16A / 250V AC
• Protection class: IP55
• Mounting method: Surface-mounted
• Connection area: 1.5 – 2.5mm²
• Color / RAL: Grey (RAL 7035)
• Material: Thermoplastic (Matt surface)
• Dimensions (WxHxD): 76 x 64 x 60mm
• Installation depth: 10mm
