NIBE ES 160 Water Heater

Description

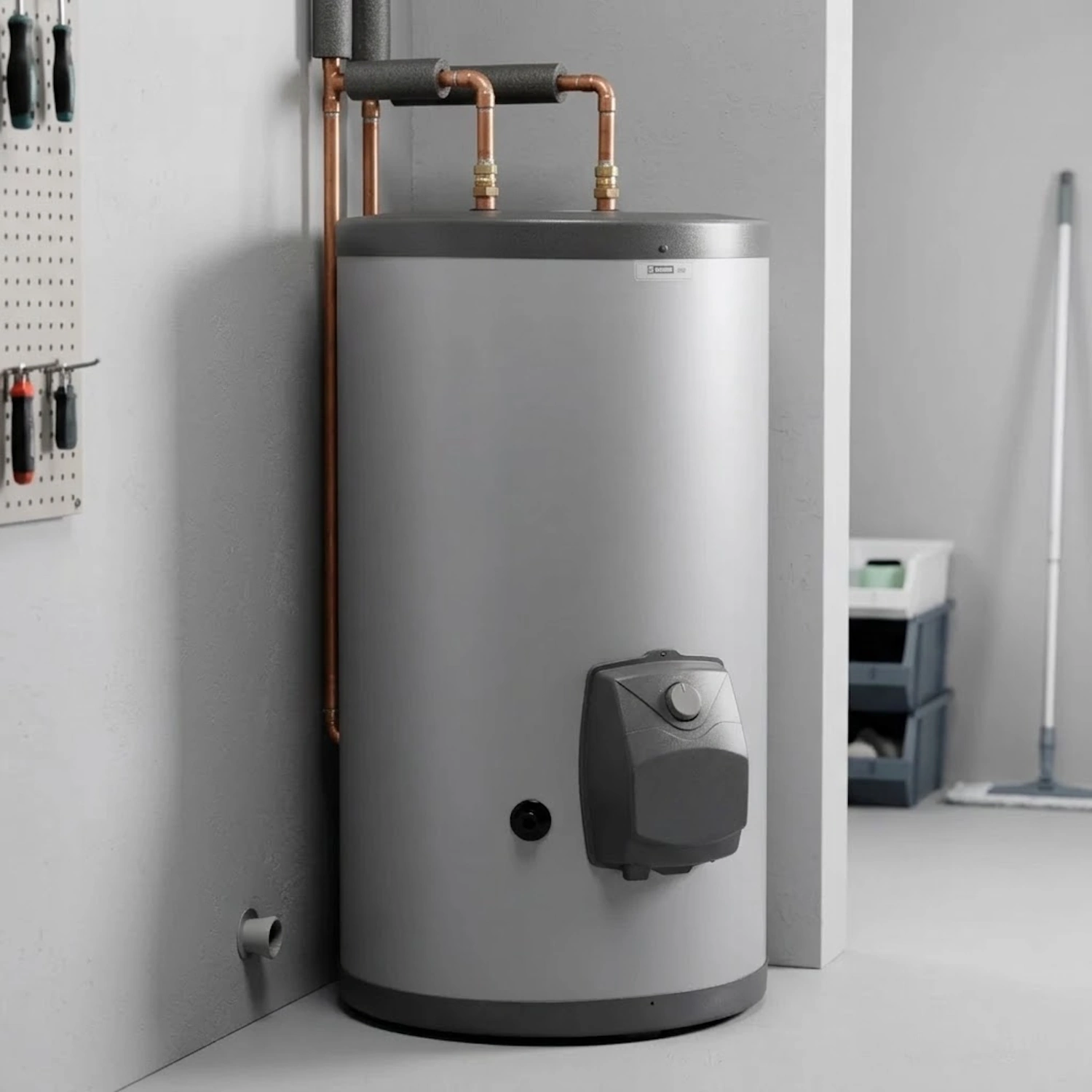

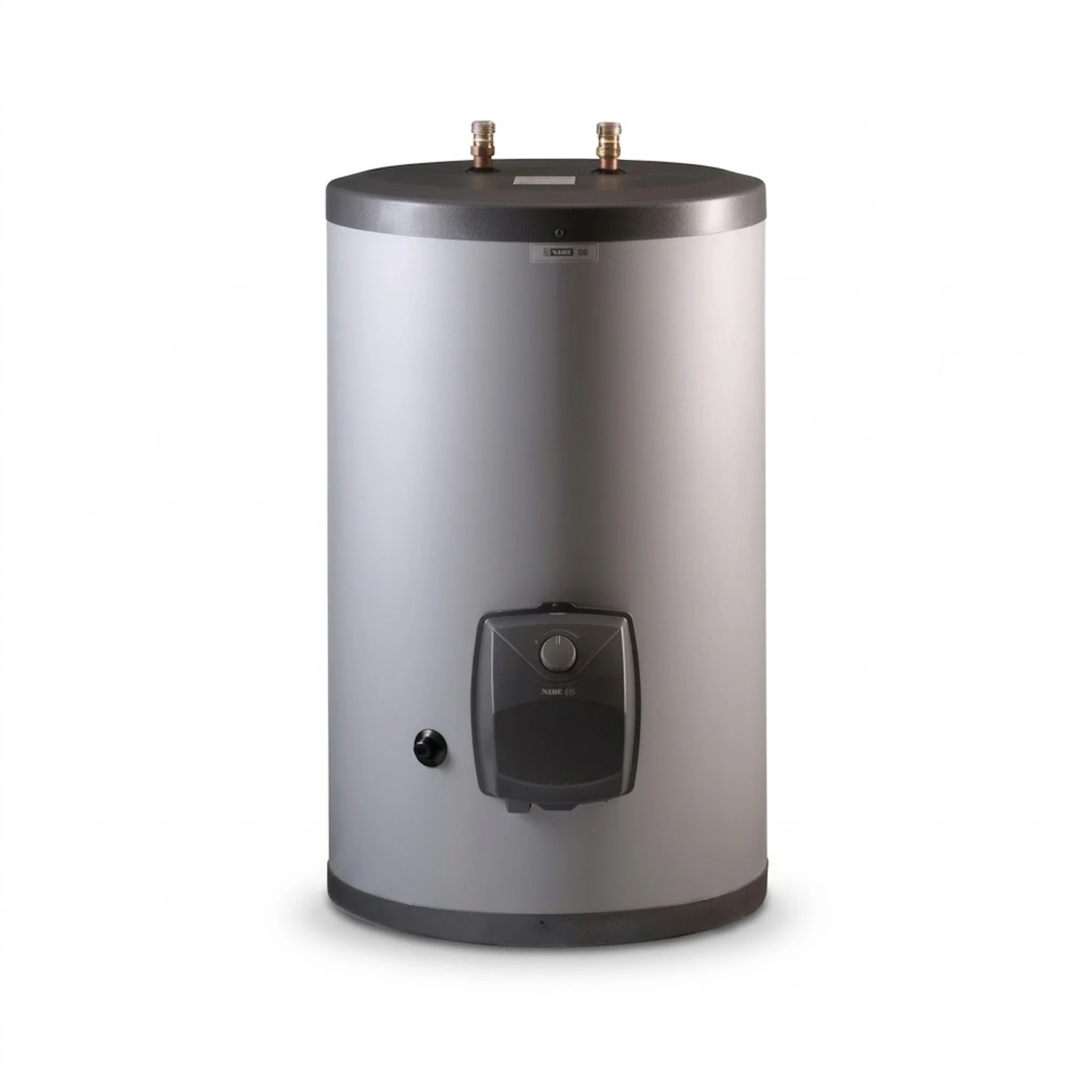

NIBE ES 160 is a robust and efficient electric water heater developed for properties, villas and industrial environments. With a volume of 159 liters, it delivers reliable hot water production and is specially designed for standing installation in spaces such as basements, garages or cold stores where there is no risk of freezing. Its tough outer casing in hardshell and steel tank with internal copper corrosion protection guarantee a long service life and high durability.

NOTE! Velltra assures that all NIBE products marketed and sold by us are manufactured in Sweden and contain components of the highest quality, especially adapted for the Nordic market and its challenging climate.

Power-adapted hot water production for all needs

NIBE ES 160 is very flexible when it comes to electrical installation and can be connected for 1-phase (230V, 1 kW) or 2-phase and 3-phase (400V, 3 kW). The high power provides rapid reheating of the hot water when needed, ensuring a stable and safe hot water supply even during periods of higher consumption. The declared tap profile XL makes the model optimal for environments with extensive hot water needs.

Maximum insulation and minimal energy losses

The water heater is designed with high-quality, effective insulation that minimizes heat loss and keeps energy consumption at a low level. The inner copper layer in the tank protects against corrosion and ensures clean and fresh hot water for a long time to come.

Thoughtful design and easy installation

Thanks to its compact dimensions and easily accessible connection points, the NIBE ES 160 is very easy to place and install. The heater is mounted vertically and has 22 mm connections for easy docking to existing pipe systems.

Warranty and security

Please note that the manufacturer’s full warranty is not applicable for units bought in Sweden and installed outside Sweden.

Secure business and delivery with Velltra

Velltra is a pioneer in heat pumps and has delivered thousands of units to satisfied customers throughout the EU over the years. When you shop with us, your investment is safe all the way. All our shipments are always insured for transport, which guarantees extra fast and smooth handling if transport damage should occur.

Product specifications

• Height: 980 mm
• Width: 600 mm
• Depth: 600 mm
• Size: 160L (600 x 980 mm)
• Net weight: 55 kg
• Volume of hot water heater: 159 liters
• Efficiency class hot water preparation: C
• Declared tap profile: XL
• Pressure / Flow / Temperature: Max 9 bar
• Power / Electrical data: 230V 1kW / 400V 3kW (connection for 1-phase, 2-phase and 3-phase)
• Connection dimension: 22 mm
• Tank material: Steel container with internal corrosion protection of copper
• Outer casing material: Steel and hardshell plastic
• Color: Gray
