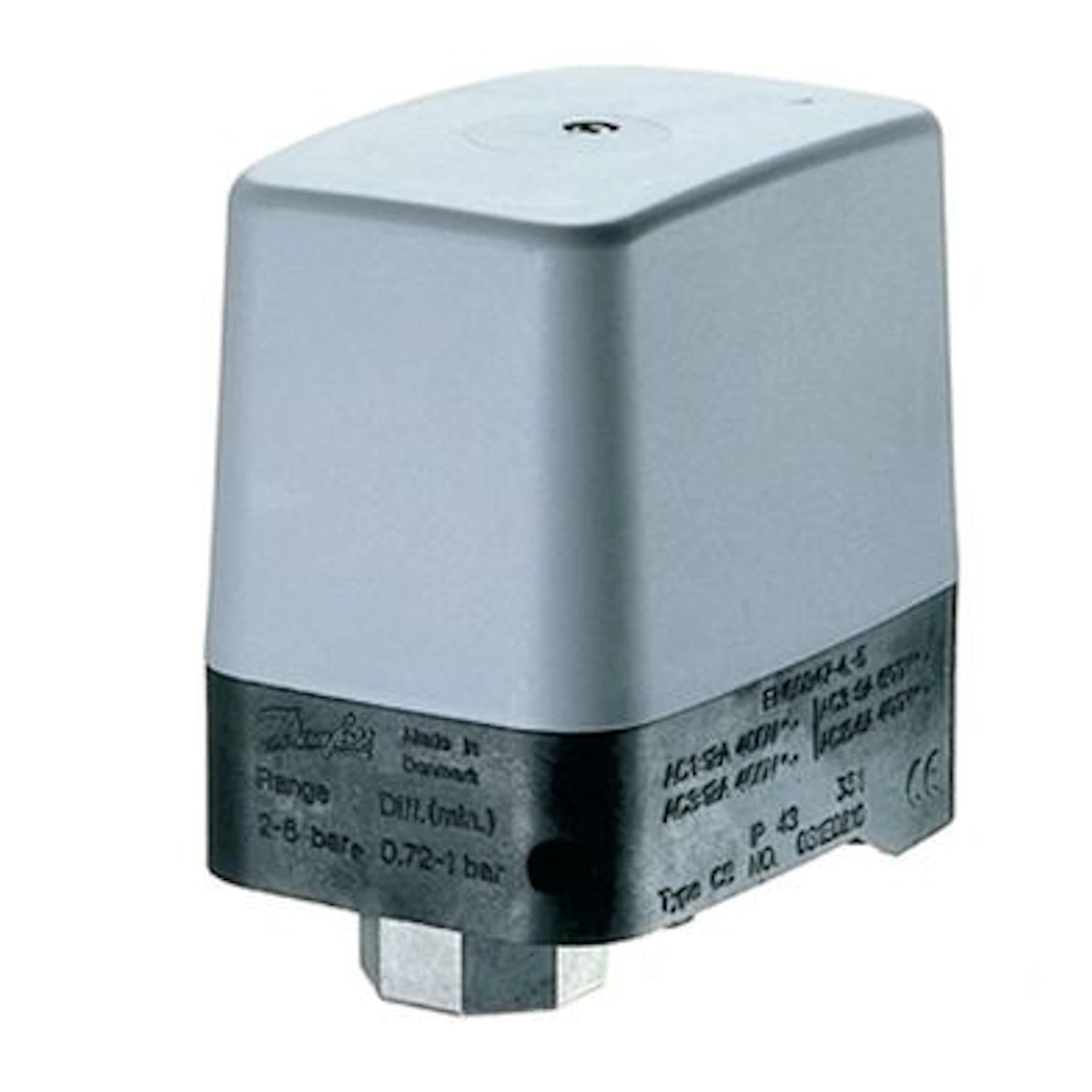

Pressure Switch CS 2-6 Bar Danfoss
Danfoss CS pressure switch 2-6 bar for automatic control of pumps and compressors, robust IP55 housing and 3-pole switch, buy here.
Watch this product and we will notify you once it is back in stock.
Pressure Switch CS 2-6 Bar Danfoss
Danfoss CS pressure switch 2-6 bar for automatic control of pumps and compressors, robust IP55 housing and 3-pole switch, buy here.
Description

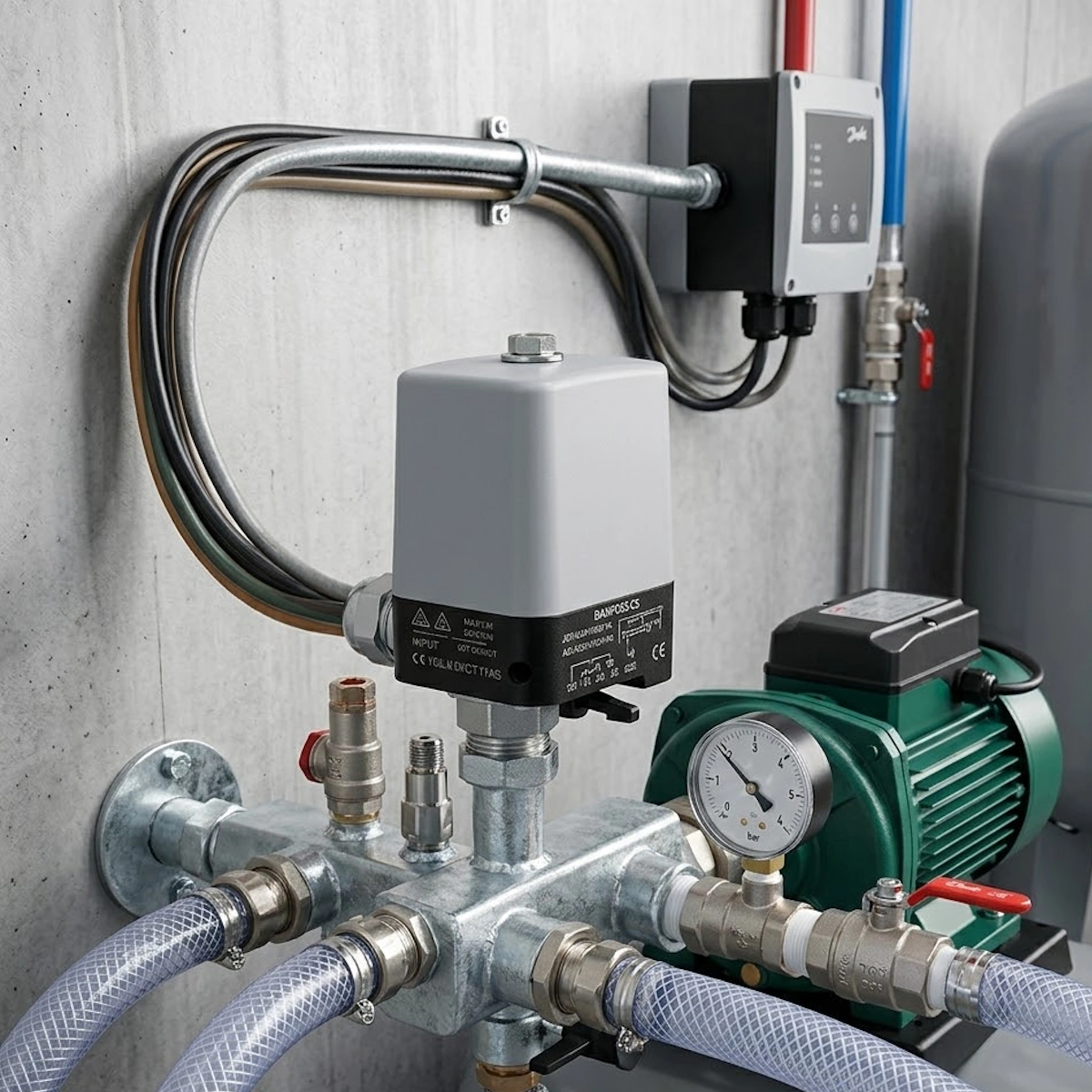

Danfoss pressure switch CS is a reliable and robust solution designed for automatic start and stop of water pumps and compressed air compressors. This pressure switch ensures efficient operation by regulating the pressure within the set range of 2-6 bar. The product is equipped with a 3-pole switch and has a manual switch that makes it easy to switch between manual and automatic operation. Danfoss CS combines durability with precision for a safe installation.
Technical Information
- Connection: G1/2
- Size: 2-6 bar, 3-pole, max 12A
- Protection class: IP55
- Voltage: 600V
- Power: 5400kW
- Connection pressure: 2 - 6 bar
- Max temperature: 70 °C
- Lifting height: 20-60 m
Specifications
- Material: Plastic
- Dimensions: 107x86x66mm
- Suitable as a guard: Yes
- Suitable as a two-point controller: Yes
- Suitable as a limiter: Yes
