Signal Lamp Red Green Orange Triple Indicator Light 230VAC IP20 Hager

Description

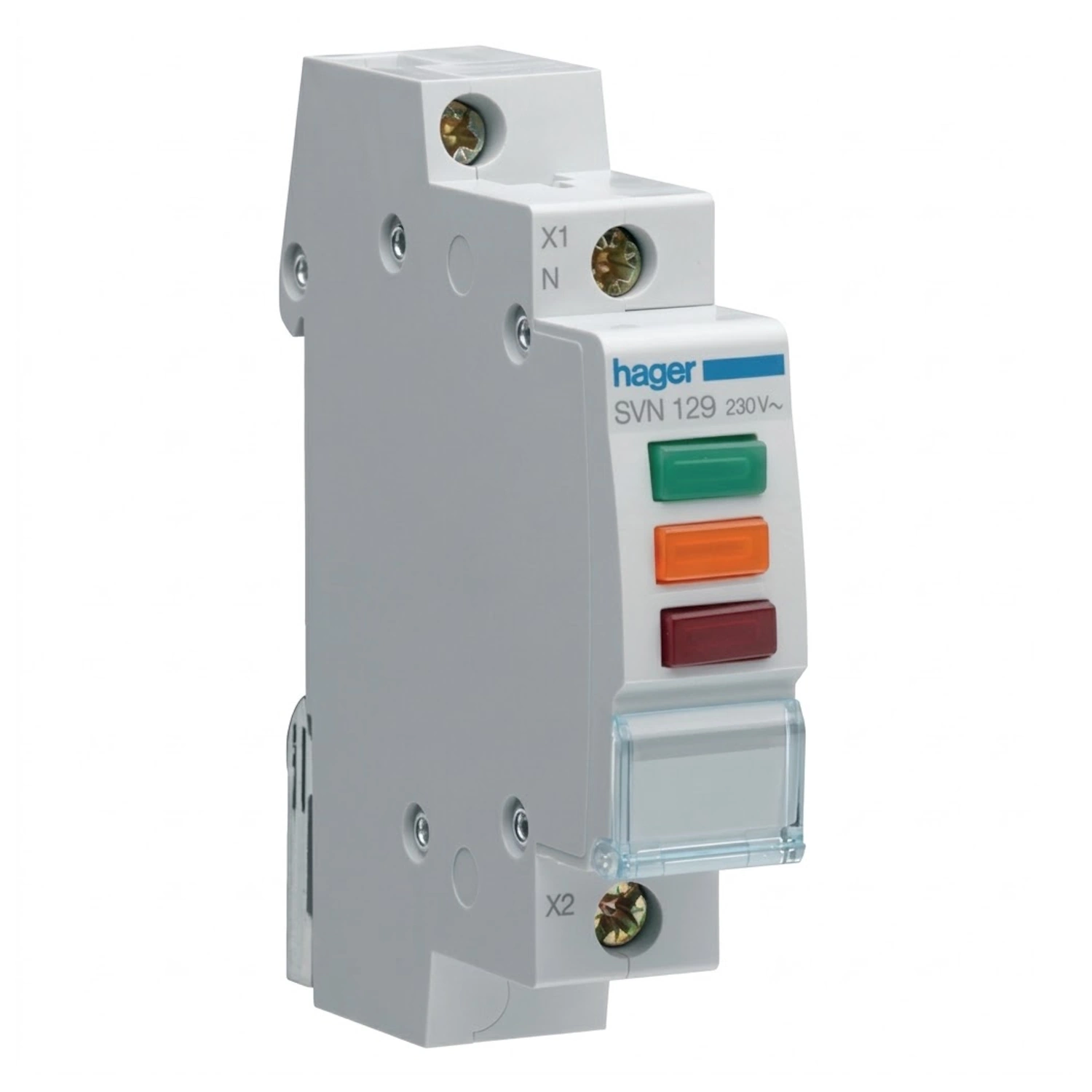

Create a professional, safe and clear overview in your electrical panel with the Hager SVN129 Triple Signal Lamp. This versatile and extremely reliable indicator lamp is specially designed for mounting on a standard DIN rail in modern standard panels, distribution cabinets and electrical systems. The device delivers immediate and clear visual status signaling for a wide range of electrical installations, circuits and industrial applications. With three integrated, highly efficient LED light sources in the colors red, green and orange, combined in an ultra-compact format of only 1 module (17.5 mm width), it is an ideal solution in confined spaces where the need for continuous operation indication, phase monitoring or fault status is high.

Thanks to the advanced LED technology, a long, maintenance-free service life and minimal heat generation are guaranteed with a very low total power loss of just 0.80 W. The signal lamp is designed for a rated operating voltage of 230 V AC (50/60 Hz) and has high safety margins with an insulation voltage of 400 V and an impulse protection of 4000 V. Installation is carried out quickly and safely via robust screw terminals that cover a wide cable range, from 0.75–6 mm² for flexible conductors up to 0.75–10 mm² for solid conductors, making the Hager SVN129 a versatile and reliable choice for both residential and commercial properties.

Key features and benefits

• Compact 1-module design: Accommodates three independent indicator lamps in a width of only 17.5 mm.
• Long life & low energy consumption: Maintenance-free LED technology with a total power loss of just 0.80 W.
• Reliable operation: Adapted for 230V AC (50/60 Hz) rated operating voltage.
• Safe wiring: Screw terminals approved for flexible conductors (0.75–6 mm²) and solid/rigid conductors (0.75–10 mm²).
• High protection: Insulation voltage (Ui) of 400 V and impulse protection (Uimp) of 4000 V for safe use in demanding environments.

Specifications

• Light colors: Red, Green, Orange
• Light source: LED (Fixed base)
• Rated operating voltage (Ue): 230 V AC (50 - 60 Hz)
• Width in modules: 1 module (17.50 mm)
• Dimensions (H × W × D): 83 mm × 17.5 mm × 62 mm
• Protection class: IP20
• Power loss (total): 0.80 W
• Rated insulation voltage (Ui): 400 V
• Rated impulse withstand voltage (Uimp): 4000 V (4 kV)
• Connection type: Screw terminal
• Area flexible conductor: 0.75 - 6 mm²
• Area solid conductor: 0.75 - 10 mm²
• Operating temperature: -20 °C to +50 °C
• Storage temperature: -40 °C to +80 °C
