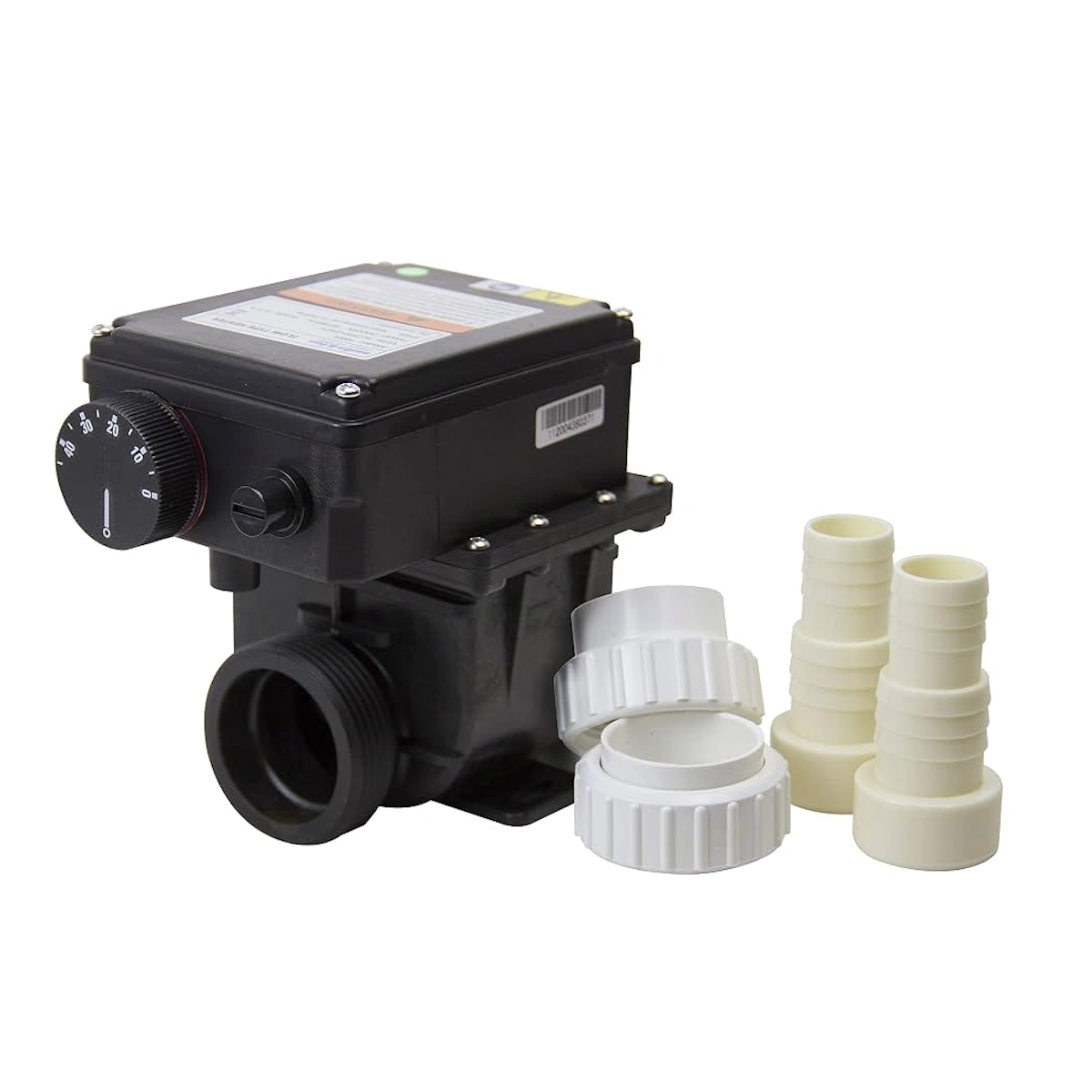

Swim & Fun Spa Heater Electric 2kW

Description

Enjoy a perfectly tempered spa bath regardless of the season. The Swim and Fun 2 kW electric heater is a reliable and compact solution developed for smaller spas, whirlpools and wilderness baths with a water volume of up to 1,000 liters. With an elegant black design and high functionality, the heater integrates seamlessly into the filter system to deliver even and comfortable heat.

Efficient heating and smart frost protection for cold days

This electric heater is designed to withstand the Nordic climate and works excellently in ambient temperatures down to -5 degrees. In a well-insulated 1,000 liter spa with a thermo cover, the water temperature is raised by approximately 0.7 degrees per hour. The built-in thermostat can be flexibly adjusted between 0 and 45 °C, making it easy to set the exact temperature you want for a relaxing swim or to keep the system frost-free during the winter.

Built-in flow switch for maximum operational reliability

Safety is in focus thanks to an integrated mechanical flow switch (Flow Switch). This smart function detects the water flow and only activates the heating element when the circulation is high enough, effectively preventing overheating and dry boiling. For the flow switch to function properly, a continuous water flow of at least 3,600 liters per hour is required.

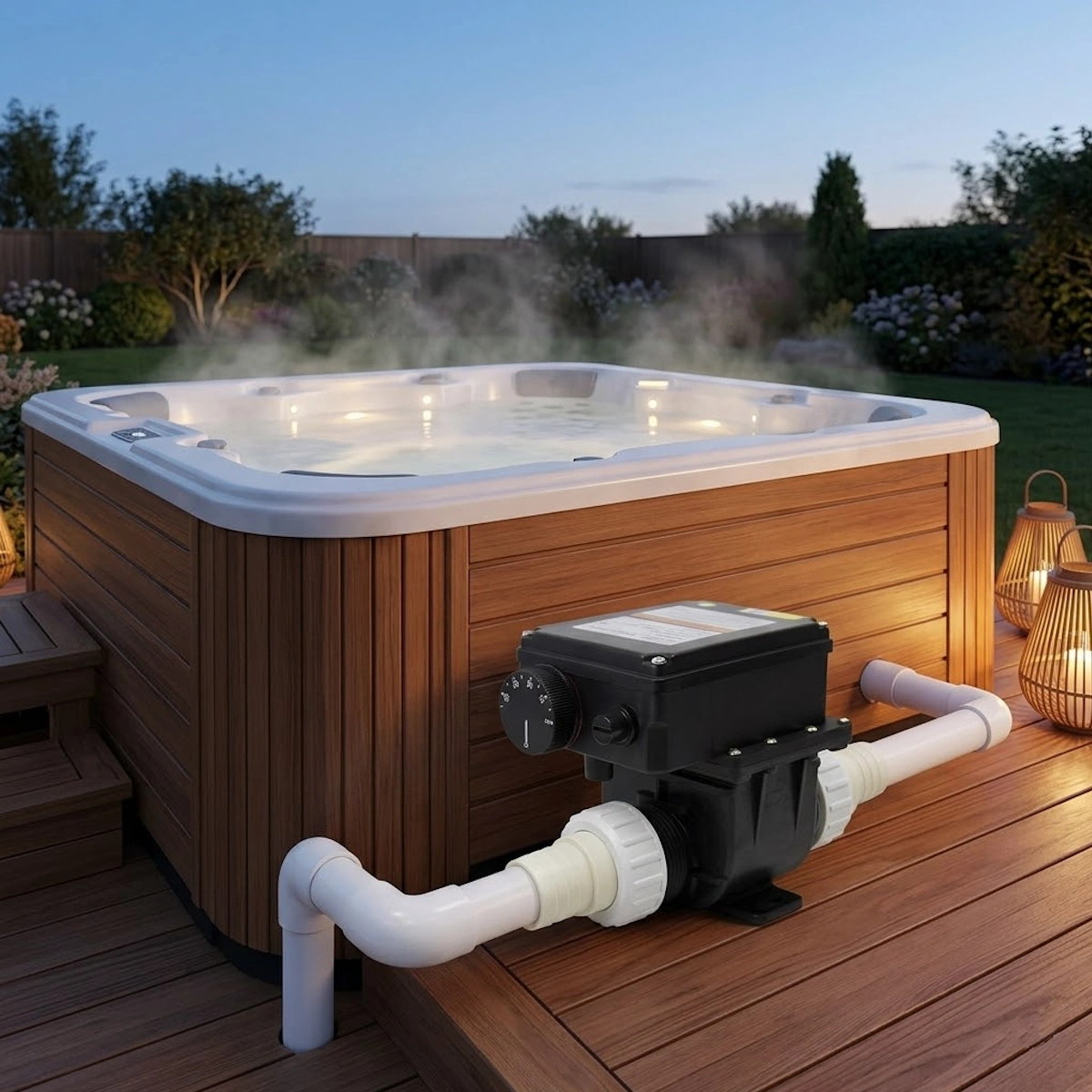

Versatile installation for indoor and outdoor use

The heater offers flexible mounting options and is suitable for installation both indoors and outdoors. When placed outdoors, it is important that the unit is protected in a waterproof and weatherproof box. The connections consist of 50 mm adhesive sleeves on both the inlet and outlet for a tight and stable connection to the rest of the pipe system.

• Please note that installation must be carried out by an authorized electrician to ensure safe and correct operation.

Technical specifications

• Power: 2.0 kW
• Voltage: AC 220-240 V, 50/60 Hz
• Current: 10 A
• Maximum working pressure: 0.035 MPa
• Protection class: IP45
• Capacity: +0.7 ºC per hour per 1000 liters of water
• Connection: 50 mm glued sleeve on inlet and outlet
• Thermostatic control: 0 to 45 °C
• Minimum flow requirement: 3,600 liters per hour
