Subcentral 730x900x280mm 63A IP44 Malmbergs 2470325

Description

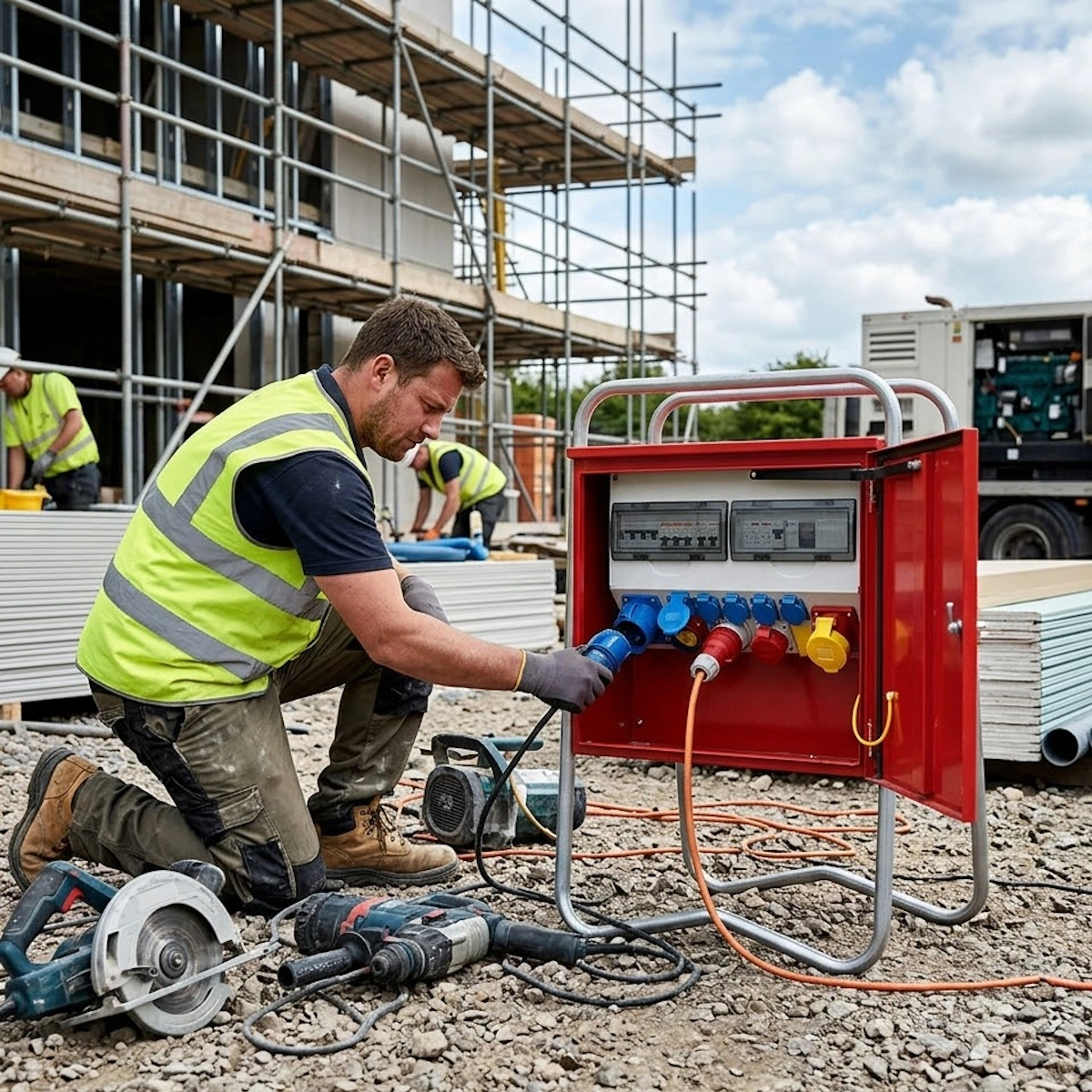

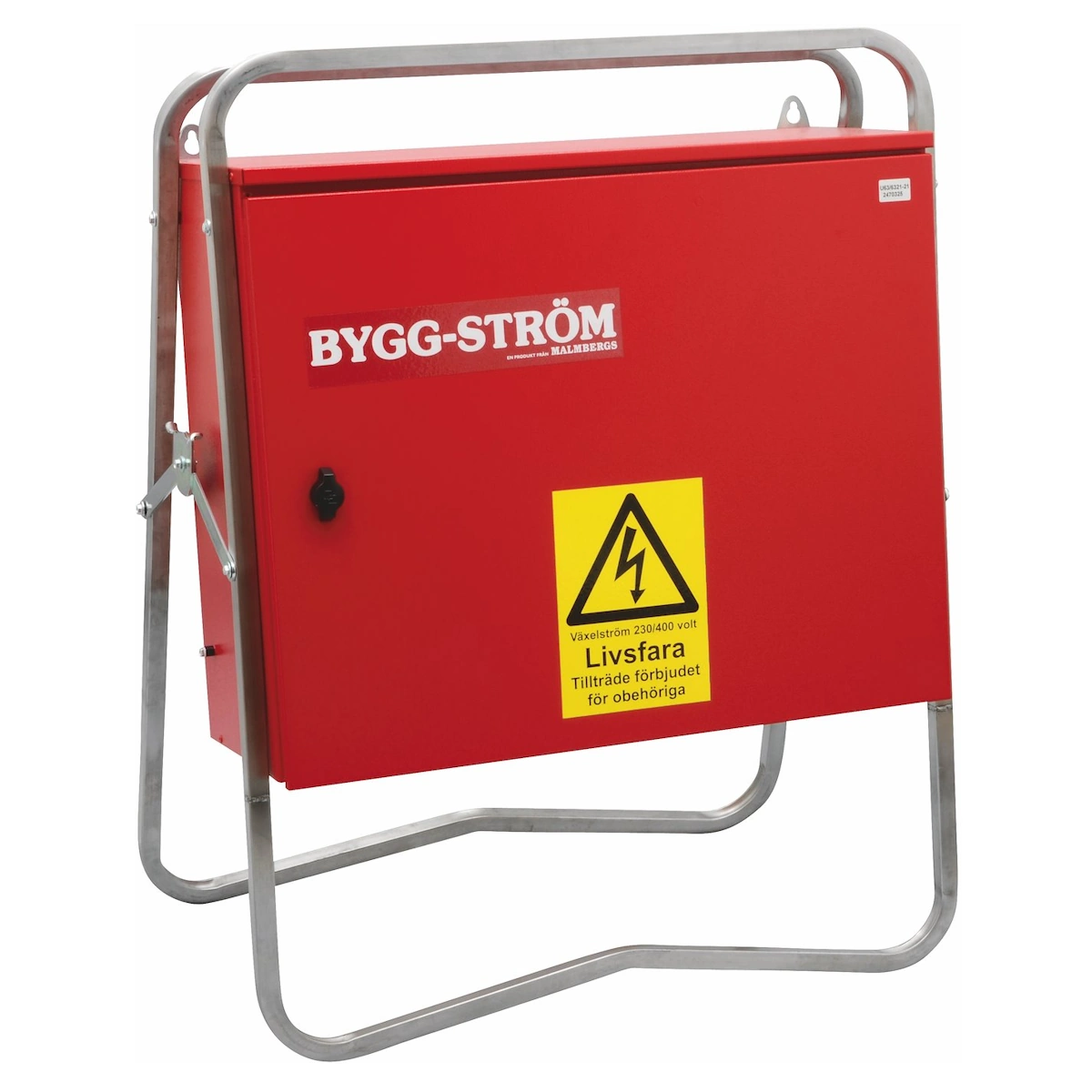

Durable and reliable substation for demanding environments. This high-quality construction power distributor is designed for professionals who demand maximum durability and easy handling on the jobsite. Made of painted galvanized steel sheet with a robust stainless steel frame, it is built to withstand tough conditions and the Nordic climate.

The advantages of the substation

• Smart storage: Equipped with fully foldable legs that make transport and storage extremely compact.
• High flexibility: Can either stand free on its frame or be mounted on the wall via the integrated wall brackets.

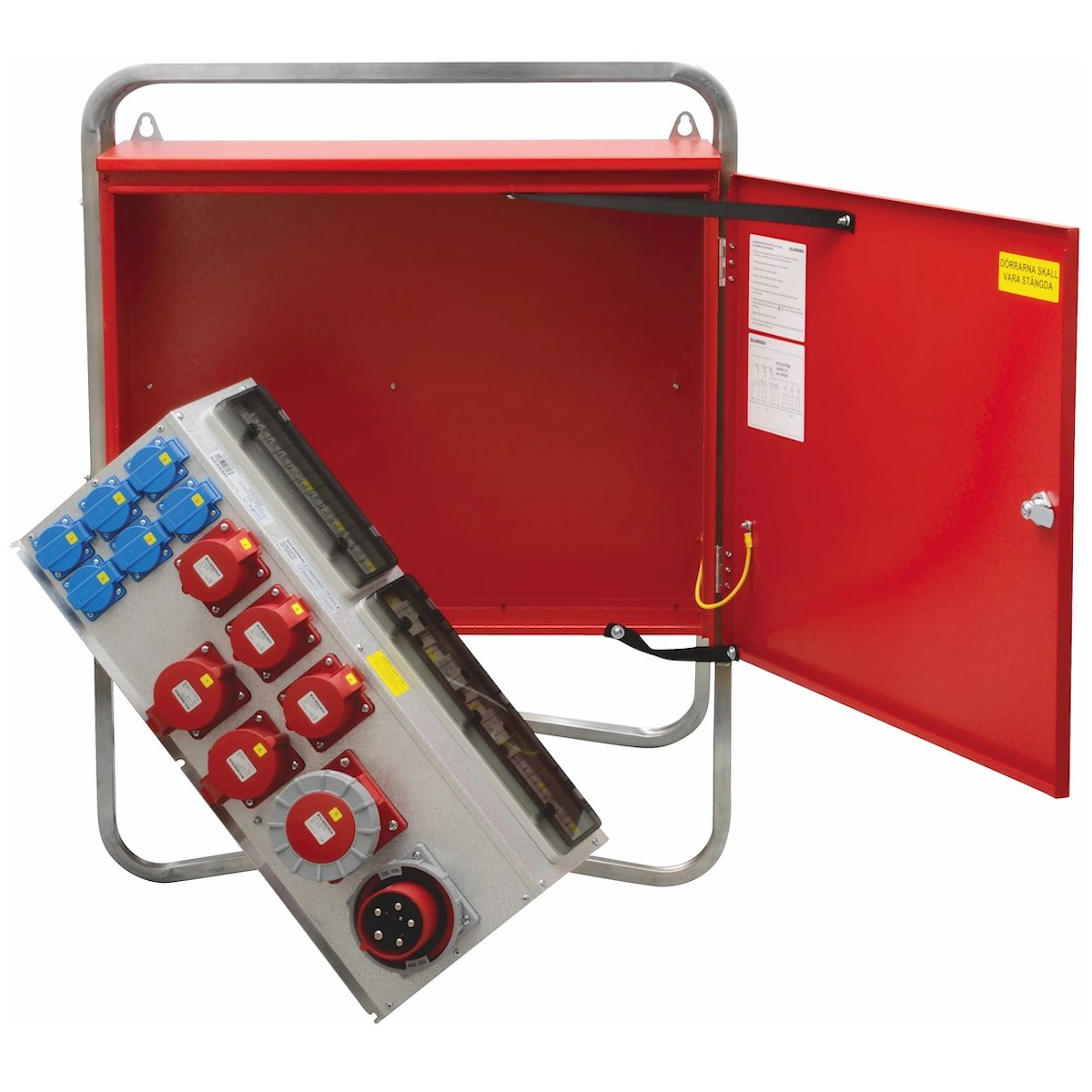

• Easy maintenance: The entire insert can be quickly removed from the cabinet, which simplifies service and cleaning.

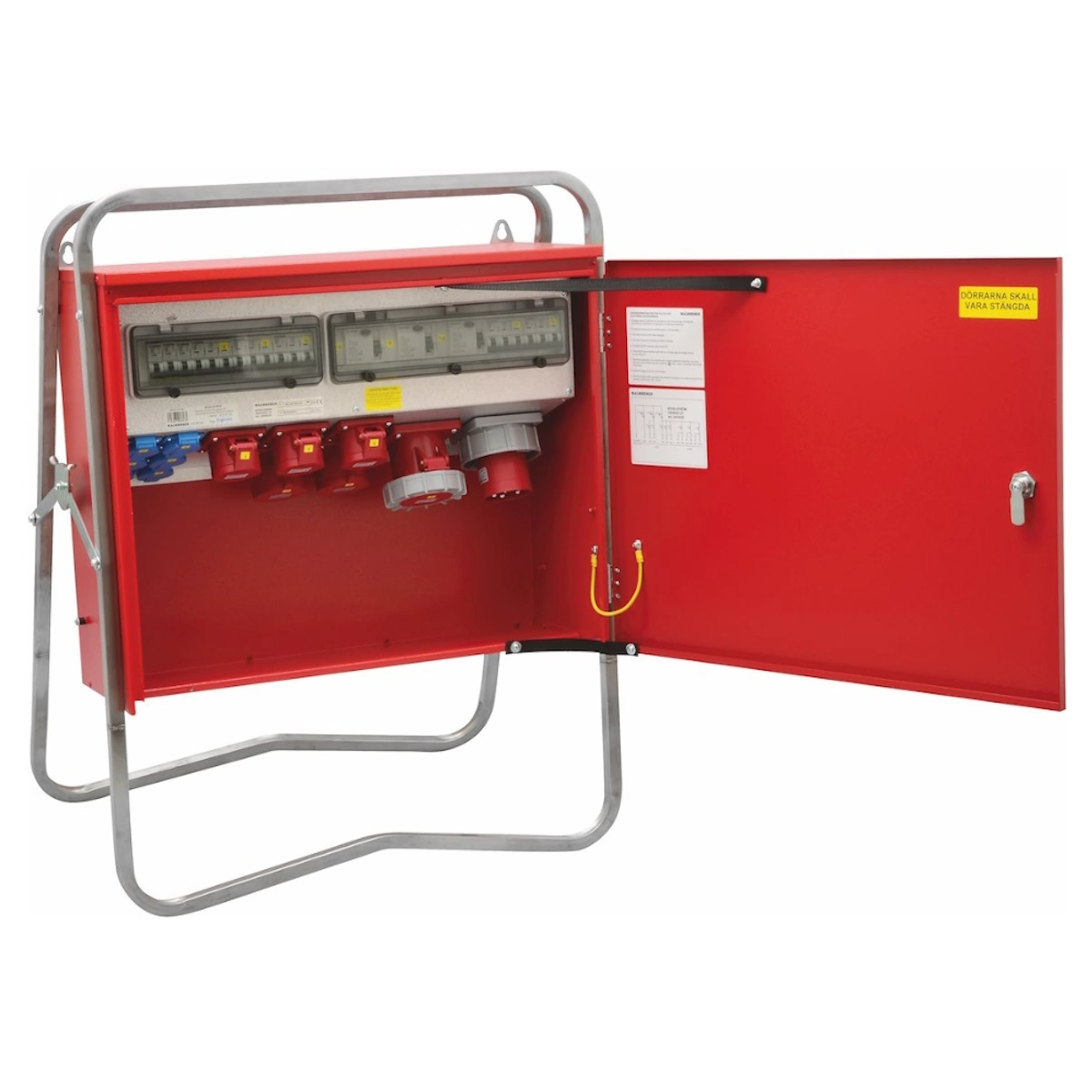

• Safety in focus: Lockable door (for padlock) protects the components, and all sockets are protected by earth leakage circuit breakers according to current standards (EN61439-4 and SS4364000 ed.2).

Supplied for TN-S system

• 1 pc CEE socket 3+N+J , 63A
• 1 pc CEE socket 3+N+J (not fused), 63A
• 2 pc CEE sockets 3+N+J, 32A
• 3 pc CEE sockets 3+N+J, 16A
• 6 pc Schuko sockets, 16A
• 2 pc Standard fuses 3-pole, 32A
• 3 pc Standard fuses 3-pole, 16A
• 3 pc Standard fuses 1-pole, 16A
• 1 pc Ground fault circuit interrupter 300mA, 63A
• 2 pc Ground fault circuit interrupter 30mA, 63A

Fuse and Ground fault circuit interrupter

For optimum operational reliability and selectivity, the control panel is divided into three separate ground fault circuit interrupters:

• JFB 1 (300mA, 63A): Protects 63A feed-through.
• JFB 2 (30mA, 63A): Protects 2 x 32A CEE sockets (fused with 3-pole standard fuses).
• JFB 3 (30mA, 63A): Protects 3 x 16A CEE sockets and 6 x Schuko sockets (fused with 3-pole and 1-pole standard fuses, respectively).

Specifications

• Protection class: IP44
• Dimensions (WxHxD): 730x900x280 mm (incl. stand)
• Rated current: 63A
