NIBE Compressor 6kW Benchmark

Description

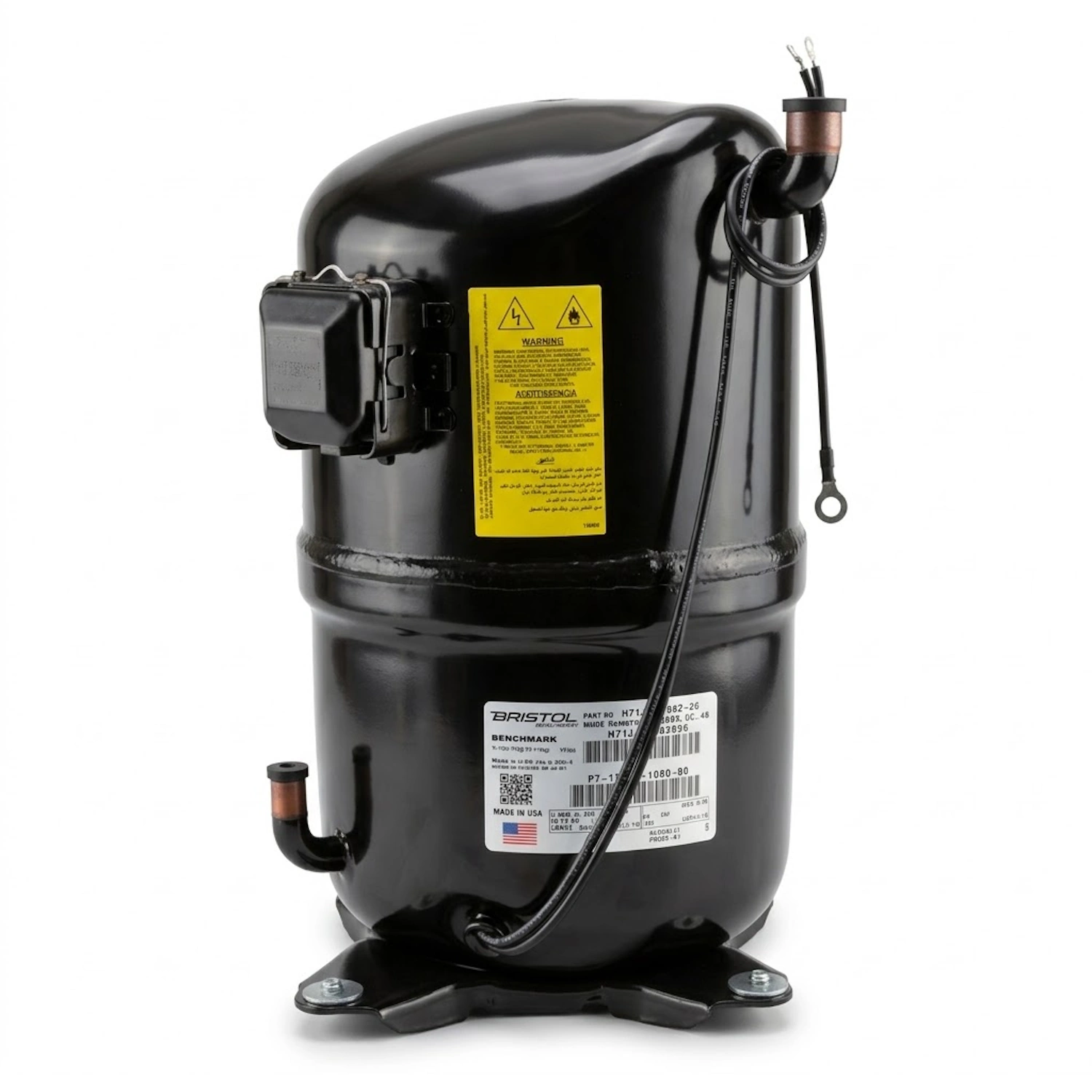

NIBE Benchmark 6kW compressor kit is a customized spare parts kit designed for reliable operation and high efficiency in ground source heat pumps and exhaust air heat pumps. This compressor unit made by Bristol Benchmark delivers stable heating output and is adapted for service, maintenance and replacement in compatible models within the NIBE Fighter series.

Complete installation kit for optimal operation and service life

The kit is delivered complete with necessary installation components and vibration-damping accessories for a quiet and durable installation. The included compressor heater ensures optimal starting and operation even in cold operating conditions, reducing wear and extending the life of the system.

Components included in the kit

• Compressor Bristol Benchmark H71J: 1 pc
• Compressor heater: 1 pc
• Cable F-1115: 1 pc
• Cable to compressor heater: 1 pc
• Vibration damper: 4 pcs
• Damper 32 mm diameter: 4 pcs
• Damper 32/19 mm diameter: 4 pcs
• Insulating sleeve: 4 pcs
• Flange nut with ratchet teeth: 8 pcs
• Fend washer: 8 pcs
• Wood screw pan head: 4 pcs
• Cable tie 150x3.5 mm: 1 pc

Compatibility and area of application

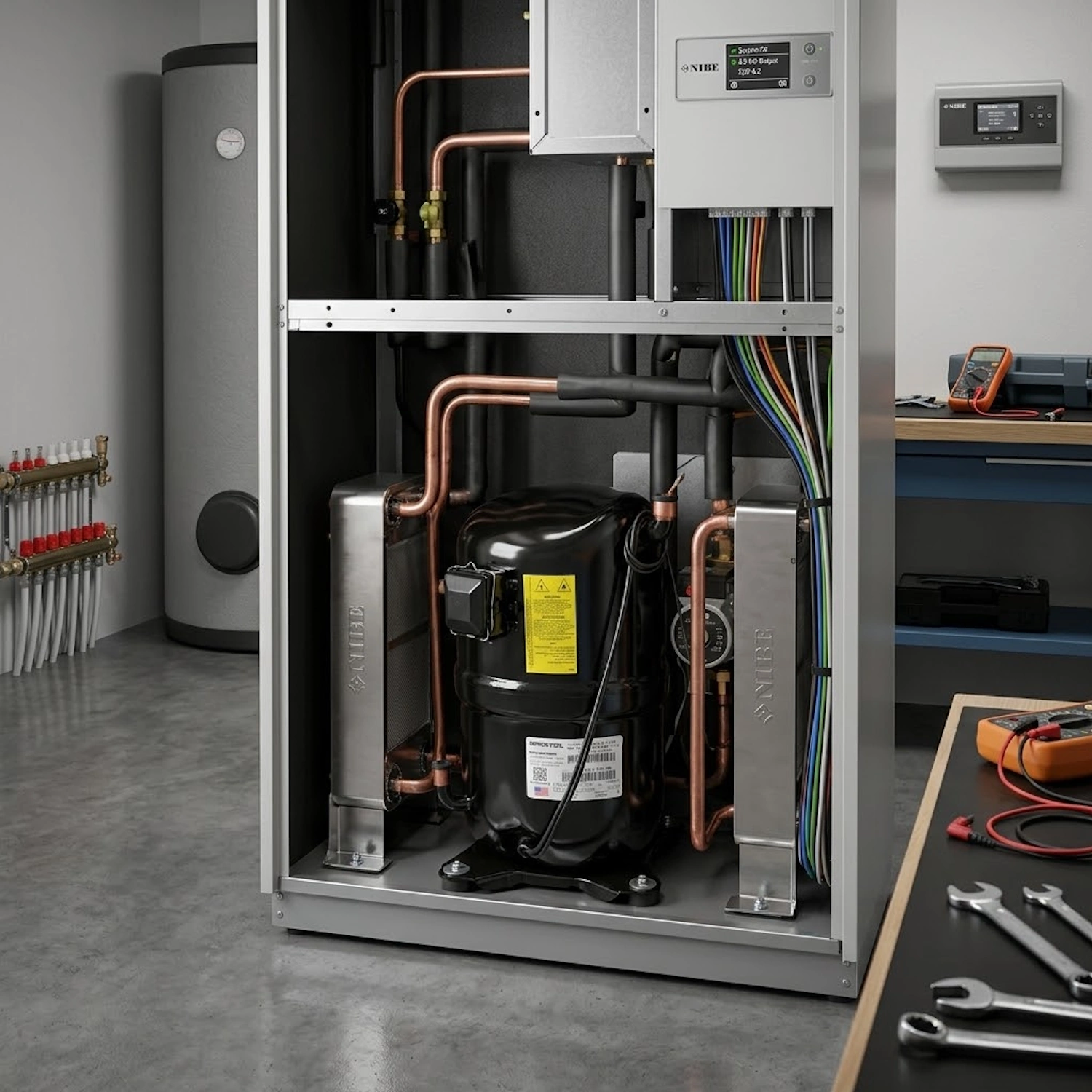

This compressor kit is adapted for installation and replacement in the following heat pump models:

• NIBE Fighter 1110 5kW
• NIBE Fighter 1115 5kW
• NIBE Fighter 1125 6kW
• NIBE Fighter 1130 6kW
• NIBE Fighter 1135 6kW
• NIBE Fighter 1210 5kW Cu
• NIBE Fighter 1215 5kW Cu
• NIBE Fighter 1225 6kW Cu
• NIBE Fighter 1235 6kW Cu

Using correctly adapted original components and vibration isolation ensures correct cooling function, good operating economy and minimal vibration transmission to the heat pump chassis and the property.
