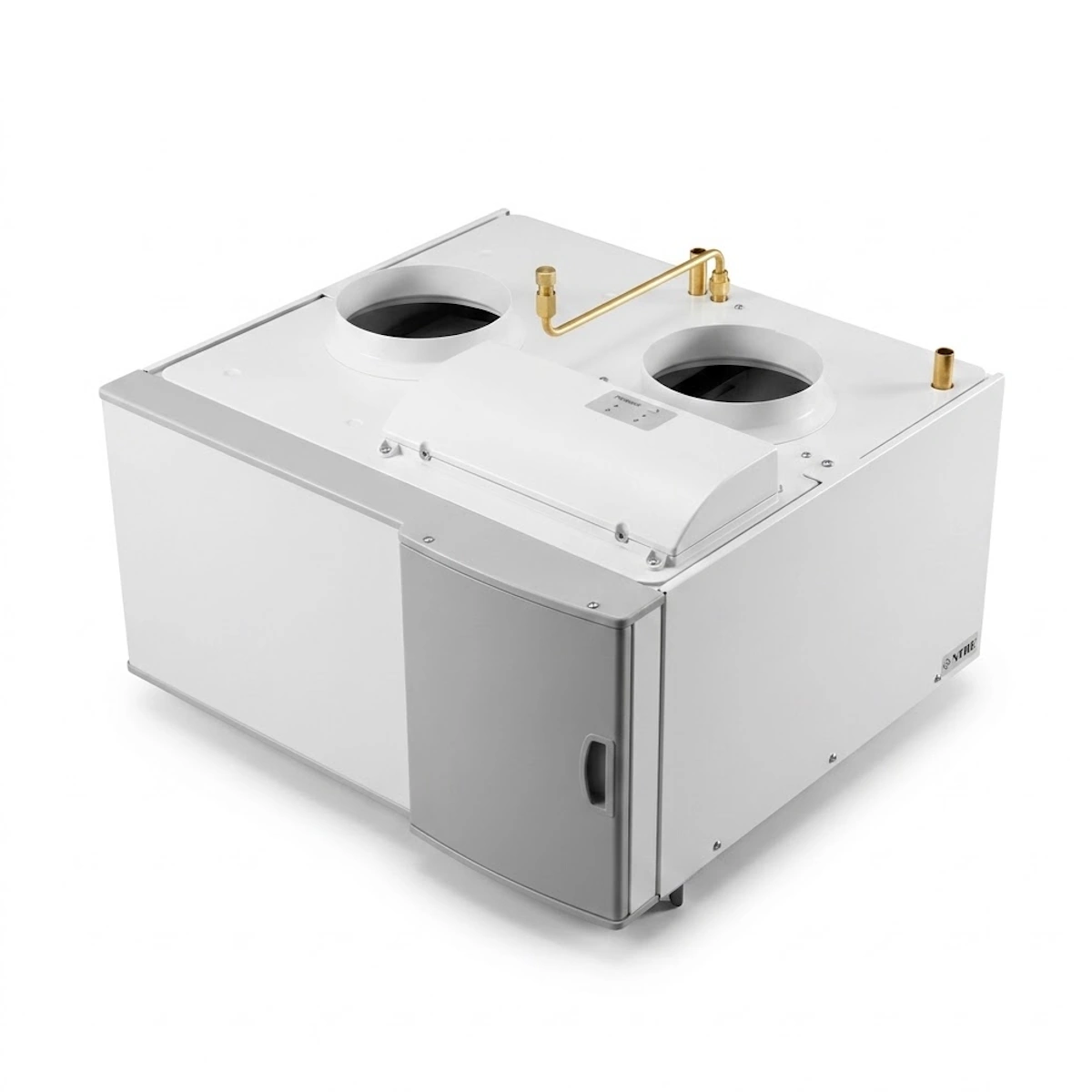

NIBE FLM Extract Air Module
NIBE FLM is a quiet extract air module with a built-in fan that effectively recycles ventilation air and stores heat energy in the collector.
Watch this product and we will notify you once it is back in stock.
NIBE FLM Extract Air Module
Description

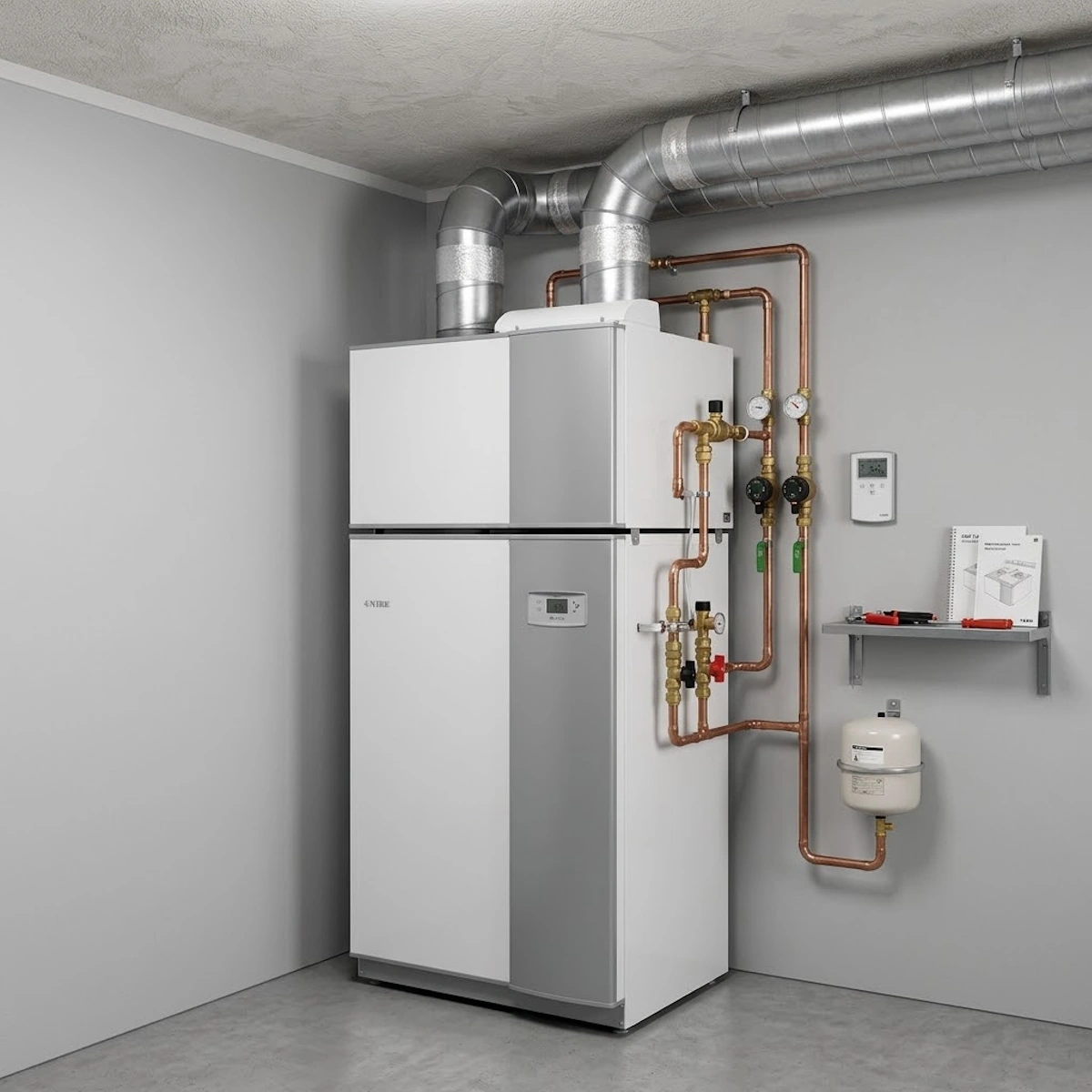

NIBE FLM is an energy-efficient extract air module with a built-in DC fan, developed to combine mechanical extract air ventilation with ground source heat pumps in the NIBE F11xx and NIBE F12xx series. By recovering heat energy from the building's ventilation air, a complete and sustainable overall solution for ventilation, heating and hot water production is created.
Smart energy recovery for ground and rock collectors
The extract air energy is utilized in an efficient way and transferred directly to the ground or rock collector. The system stores energy in the collector loop even during periods when the heat pump is not in operation, which raises the collector temperature and optimizes the heat pump's annual coefficient of performance (SCOP).
High comfort, low noise and smart control
With a quiet fan design, generous fan capacity and advanced control, the indoor climate is automatically adjusted for optimal comfort and good air quality. The module is seamlessly integrated into a modern heating system and contributes to reduced energy consumption and a pleasant and well-ventilated indoor climate.
Technical specifications
- Product type: Exhaust air module for mechanical exhaust air
- Compatibility: NIBE F11xx and NIBE F12xx ground source heat pumps
- Fan type: DC fan
- Connection dimension: 15 mm
- Dimensions (Depth x Width x Height): 556 x 596 x 352 mm
- Power and electrical data: 175 + 75 W, 230 V
- Colour: White
- Surface treatment: Powder coating
- Material: Sheet steel and aluminium
- Protection class: IP21
