Swim & Fun Filter System Pro Classic 800W

Description

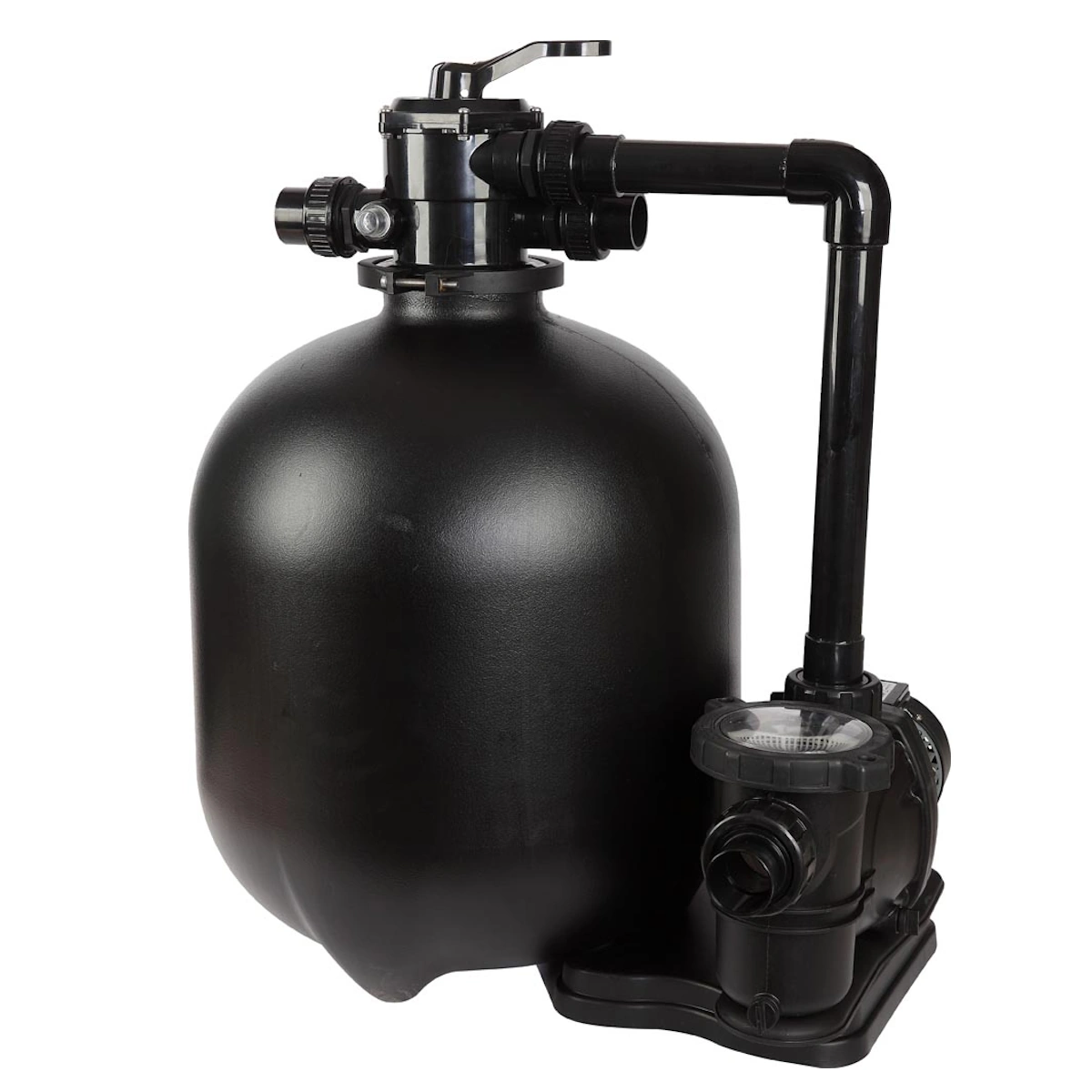

Clean and clear pool water is the basis for a wonderful swimming season. The Swim & Fun Filter System Pro Classic 800W is a complete and high-performance filter system designed for efficient circulation and thorough cleaning of large free-standing pools and garden pools with a water volume of up to 70,000 liters. The robust system combines a spacious, weather-resistant filter tank with a powerful self-priming pump, which guarantees constant water movement and inviting pool water.

High capacity and flexible filter media

This filter system offers great flexibility as it can be used with both traditional filter sand and modern Filterballs. With filter sand, the generous 600 mm tank holds up to 140 kg of sand, which provides stable and mechanical filtration with a purification capacity of 14,570 liters per hour. If Filterballs are selected, approximately 3,800 grams are needed, which lowers energy consumption, increases water flow and provides a purification capacity of up to 16,400 liters per hour and eliminates the need for regular backwashing.

Easy maintenance and versatile use

The pump is equipped with an integrated pre-filter that collects coarser particles and protects the filter media itself. This makes maintenance considerably easier and extends the life of the system. A clear, built-in pressure gauge shows the pressure in the top-mounted multi-valve, which makes handling very clear. Thanks to the strong pump, it is also easy to connect a bottom vacuum on a telescopic pole to keep the pool bottom free of dirt. The system is also prepared for the installation of UV light for those who want to reduce the need for chemicals even further.

Technical specifications

• Maximum pool volume: 70,000 liters
• Pump power: 800 W (230 V / 50 Hz)
• Maximum pump capacity (Qmax): 19,000 liters/hour (284 l/min)
• Maximum lift height (Hmax): 13 meters
• Purification capacity with Filterballs: 16,400 liters/hour
• Purification capacity with filter sand: 14,570 liters/hour
• Filter tank diameter: 600 mm
• Filter sand capacity: 140 kg
• Filter ball capacity: 3,800 grams
• Hose connection: 50 mm (also fits 32 mm, 38 mm and 50 mm)
• Max. operating pressure: 1.5 bar
• Noise level: 70 dB(A)
• Cable length: 1.5 meters with plug
• Dimensions (HxWxL): 90.5 x 61 x 80.5 cm
• Pump type: Self-priming, saltwater resistant
• Temperature range: -4 °C to +35 °C
