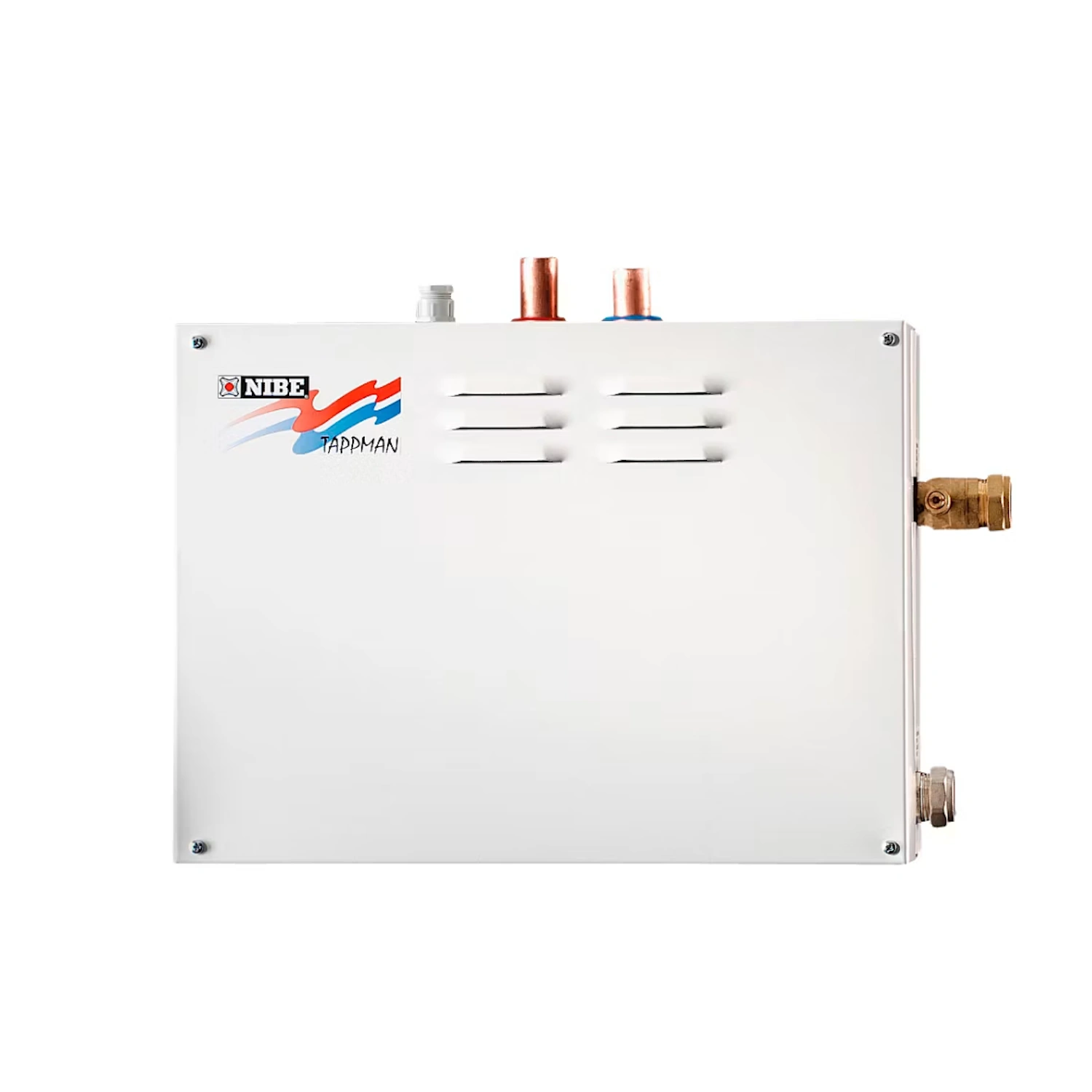

NIBE Tappman Heat Exchanger Package

Description

NIBE Tappman is a complete heat exchanger package intended for efficient and reliable production of domestic hot water. The unit is designed to be easily connected to an existing water-based energy source, such as a boiler where the connection is made directly via the boiler's hot water outlet. The water dispenser has a compact design with a water volume of 1.5 liters and a net weight of 13 kg. It is approved for a maximum operating pressure of 10 bar and is supplied with a stainless steel heat exchanger equipped with double separation, which ensures safe and hygienic heating.

NOTE! Velltra assures that all NIBE products marketed and sold by us are manufactured in Sweden and contain components of the highest quality, especially adapted for the Nordic market and its challenging climate.

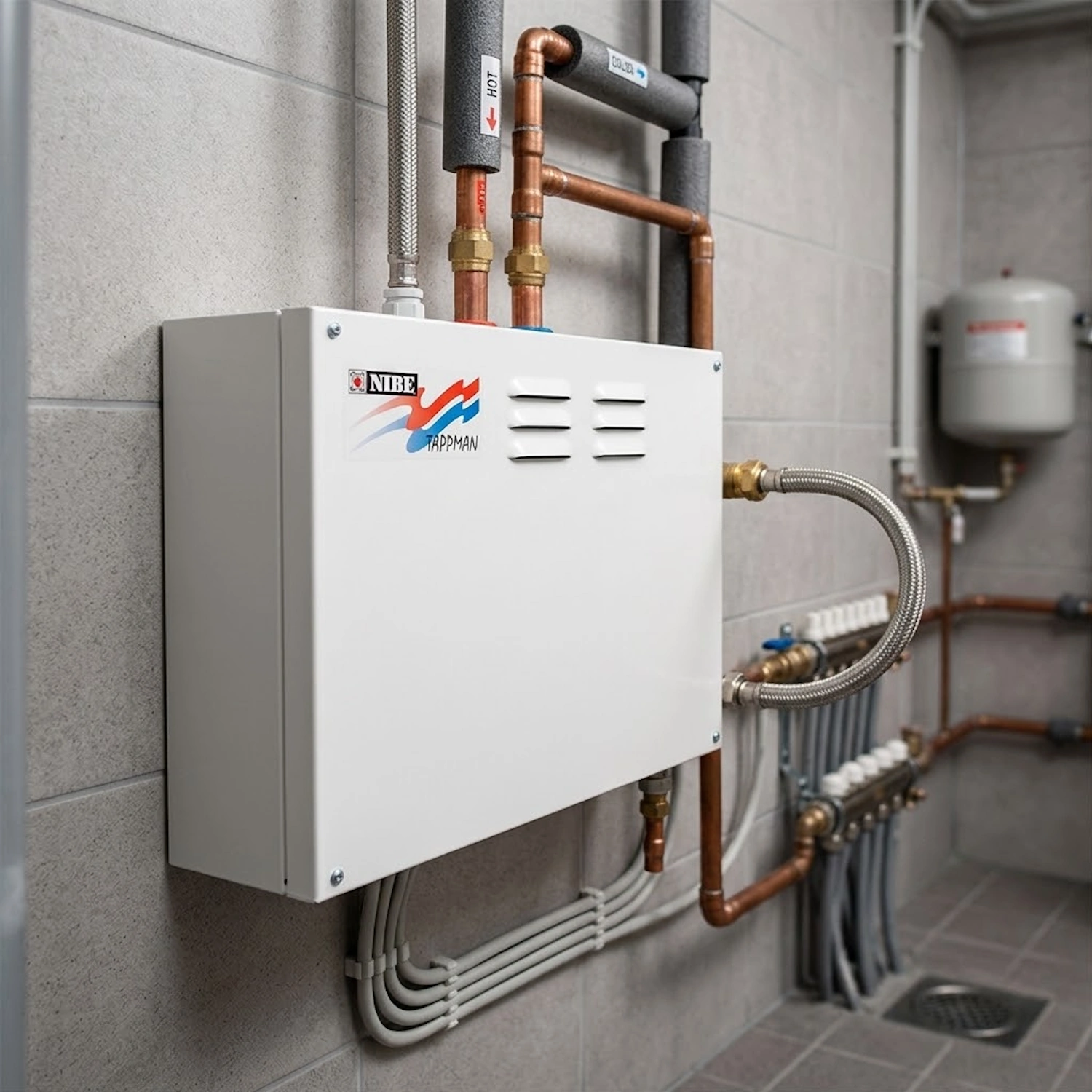

Easy installation and flexible placement

This heat exchanger package is designed to facilitate installation in all types of boiler rooms and technical spaces. NIBE Tappman can be mounted suspended directly on the boiler or attached to the wall via two integrated suspension holes on the back of the product. The connection dimension is 22 mm, which fits standard water-borne systems and enables quick integration.

Built-in components and high performance

NIBE Tappman is delivered complete with high-quality components that guarantee stable operation and a long service life:

• Charge pump: Powered by 230 V (59–115 W) and ensures optimal flow through the system.
• Flow switch: Reacts quickly to the hot water demand for immediate response.
• Stainless steel heat exchanger: Has double separation for extra safety between heat carrier fluid and domestic hot water.
• Dirt filter: Protects the system's internal parts against particles and extends the life of the equipment.

Swedish quality and secure guarantee

Please note that the manufacturer’s full warranty is not applicable for units bought in Sweden and installed outside Sweden.

Secure business and delivery with Velltra Velltra is a pioneer in heat pumps and has delivered thousands of units to satisfied customers throughout the EU over the years. When you shop with us, your investment is secure all the way. All our shipments are always insured for transport, which guarantees extra fast and smooth handling if transport damage should occur.

Product specifications

• Function: Production of domestic hot water
• Heat exchanger: Stainless steel with double separation
• Connection dimension: 22 mm
• Size (W x D x H): 415 x 146 x 305 mm (Height: 302/305 mm, Width: 415 mm, Depth: 140/146 mm)
• Color: White
• Water volume: 1.5 liters
• Weight: 12 kg (Net weight: 13 kg)
• Maximum working pressure: 10 bar (Working pressure 4 bar)
• Connection voltage: 230 V
• Pump power: 59–115 W
• Included equipment: Charge pump, flow monitor, stainless steel heat exchanger, dirt filter
