NIBE 3-Way Valve

Description

Ensure operational reliability, energy efficiency and correct flow control in your heating system with this brand new 3-way valve in brass from NIBE. The valve regulates the water flow between the heating system and hot water production and is delivered complete with a custom O-ring set for a tight, safe and worry-free installation.

Replacing a worn or sticking diverter valve restores the heat pump's efficiency, prevents operational disruptions and optimizes the system's energy consumption over time. The components meet the highest industry standards and are adapted for continuous operation in demanding environments.

Function and importance in the heating system

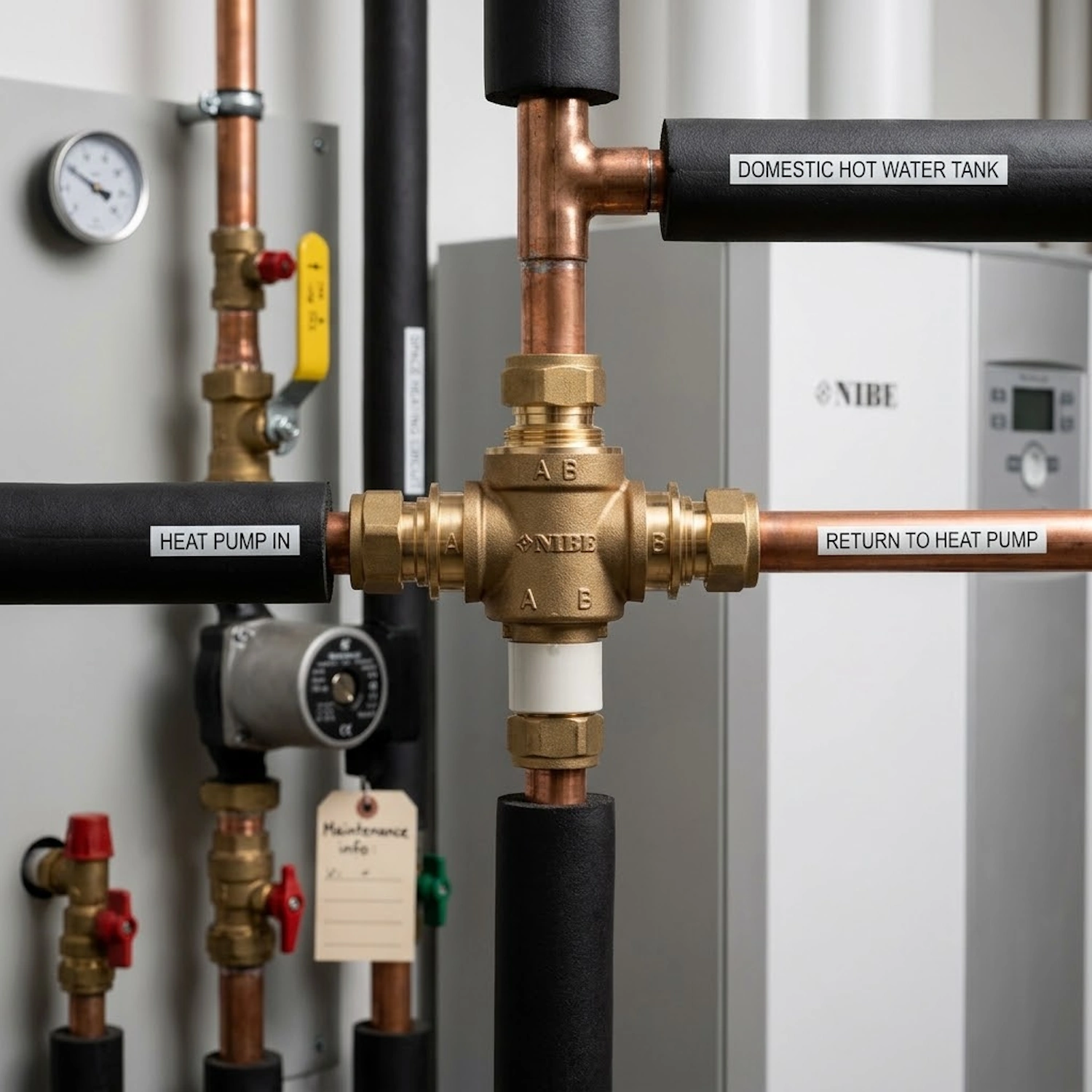

A well-functioning 3-way valve is a central component in modern heat pump systems. Its main task is to control and divert the flow of heated water between the property's heating system and the hot water heater. When the need for hot water is prioritized, the valve changes the flow direction, and when the tap water has reached the desired temperature, it switches smoothly back to distributing heat to radiators or underfloor heating coils. Through precise and reliable switching, the indoor climate is kept even while the household's hot water needs are met without unnecessary energy loss.

Construction and choice of materials

The valve body is made of strong, dezincification-resistant brass that provides effective protection against corrosion, erosion and high water pressures. The integrated spindle and connection grooves are designed to minimize friction and ensure a precise fit. The included O-ring set consists of elastic seals developed to withstand continuous temperature changes and chemical influences from heat transfer fluids, which provides a long-term durable installation.

Signs of wear and benefits of preventive maintenance

Moving parts in water-borne systems are exposed over time to mechanical wear, temperature changes and possible microscopic particles in the circulating water. This can cause the valve to seize, not close tightly or get stuck in an intermediate position.

Typical signs of a worn or defective changeover valve include:

• Uneven room temperature despite correctly set operating modes
• Heat leaking into the radiator system during summer operation or when charging only hot water
• Insufficient hot water temperature or longer heating times than normal
• Error codes or warnings related to abnormal temperature differences and flow disturbances

Replacing the valve in good time together with the supplied seals prevents unnecessary wear on the circulation pump and compressor, reduces the risk of leakage and restores the original performance of the system.

Installation and maintenance guidelines

To achieve the best possible function and avoid future operational disruptions, the following steps are recommended when replacing:

• Turn off the power to the system and relieve system pressure before starting disassembly.
• Drain the affected pipe segment of water so that the work surface remains clean and dry.
• Inspect the connecting pipe ends and remove any deposits or dirt before placing the new valve.
• Always install the new, supplied O-rings and lubricate them with approved fitting grease to ensure a proper seal without pinching damage.
• Fill the heating system, bleed air thoroughly and check carefully that all connections remain completely tight during test operation.

Technical specifications and components

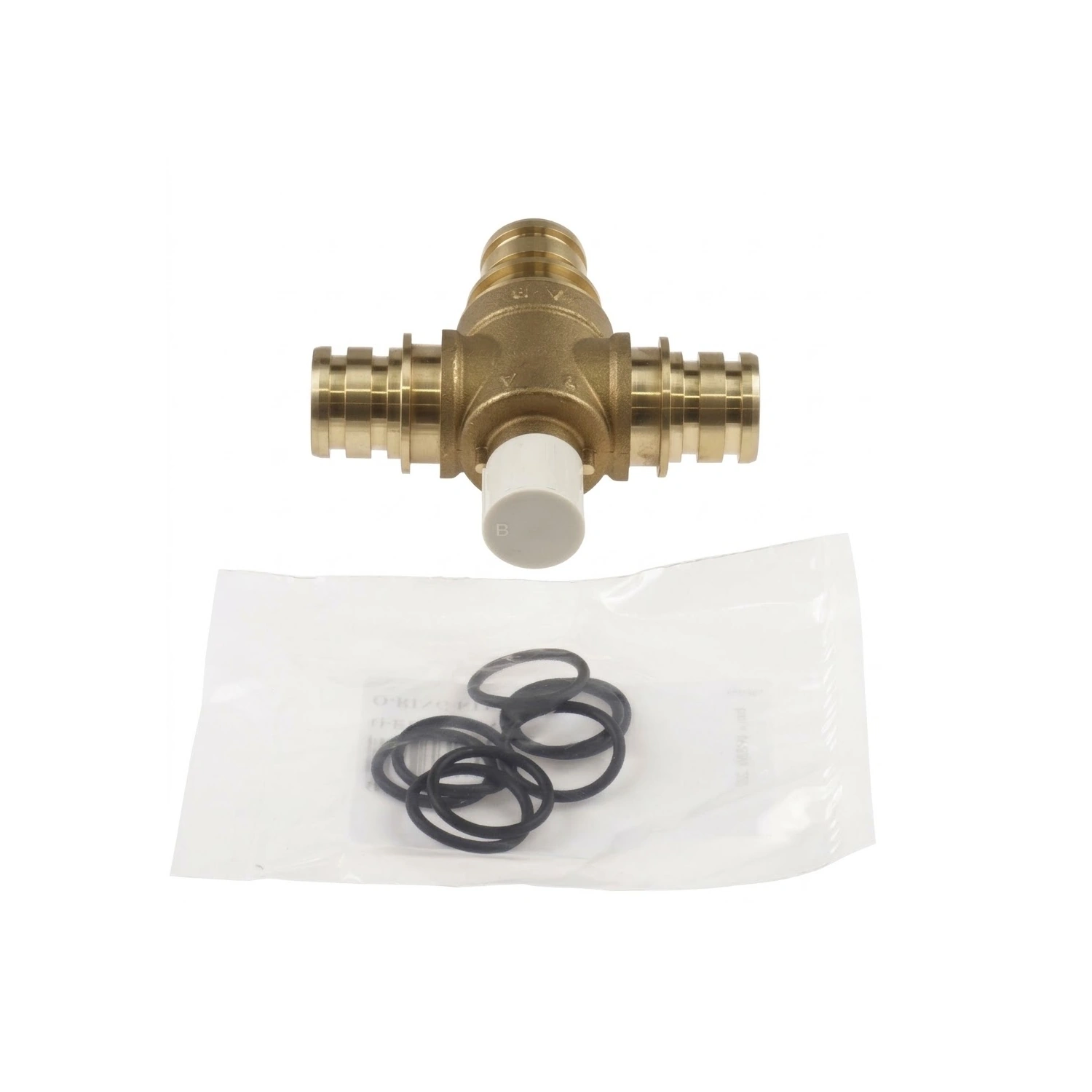

• Components included: 1 piece NIBE 3-way valve, 1 piece O-ring set for sealing
• Material: Dezincification-resistant brass with precision-made connections and integrated valve stem spindle
• Function: Flow and switching control between heating circuit and domestic hot water
• Installation: Replacement valve for direct installation in the intended hydraulic module

Compatibility

This original valve is designed for perfect fit and optimal function together with the following models and article numbers:

• NIBE F750 CU 3X400V (066015)
• NIBE F730 R 1X230V UK (066017)
• NIBE F750 E EM (066018)
• NIBE F750 CU 3X400V (066036)
• NIBE F750 RF 3X400V (066037)
• NIBE F750 E EM 3X400 (066038)
• NIBE F730 CU 3X400V (066048)
• NIBE F750 RF 3X230V NO (066049)
• NIBE F750 CU 3X400V (066060)
• NIBE F750 RF 3X400V (066061)
• NIBE F750 E 3X400V (066063)
• NIBE F730 E EM 3X400V (066073)
• NIBE F730 R 1X230V FR (066074)
• NIBE F750 CU 3X400V (066111)
• NIBE F750 R EM 3X400 (066112)
• NIBE F750 E EM 3X400 (066113)
• NIBE F750 R EM 3X230 NO (066114)
• NIBE F750 CU 3X400V (066150)
• NIBE F750 E EM 3X400 (066152)
• NIBE F750 R EM 3X230 NO (066153)
• NIBE F750 R EM 3X400 (066154)
• NIBE F730 CU 3X400V (066155)
• NIBE F730 R 1X230V UK (066156)
• NIBE F730 E EM 3X400 (066157)
• NIBE F730 R 1X230 (066158)
• NIBE 750 R EM 3X400 NL (066173)
• NIBE F730 R EM 3X400 (066176)
• NIBE F730 R 1X230V UK (066181)
• SAM S42 (067794)
• SAM S44 (067795)
• DWS S42 (067872)
• VVM 310 EMC (069084)
• VVM 310 (069430)
