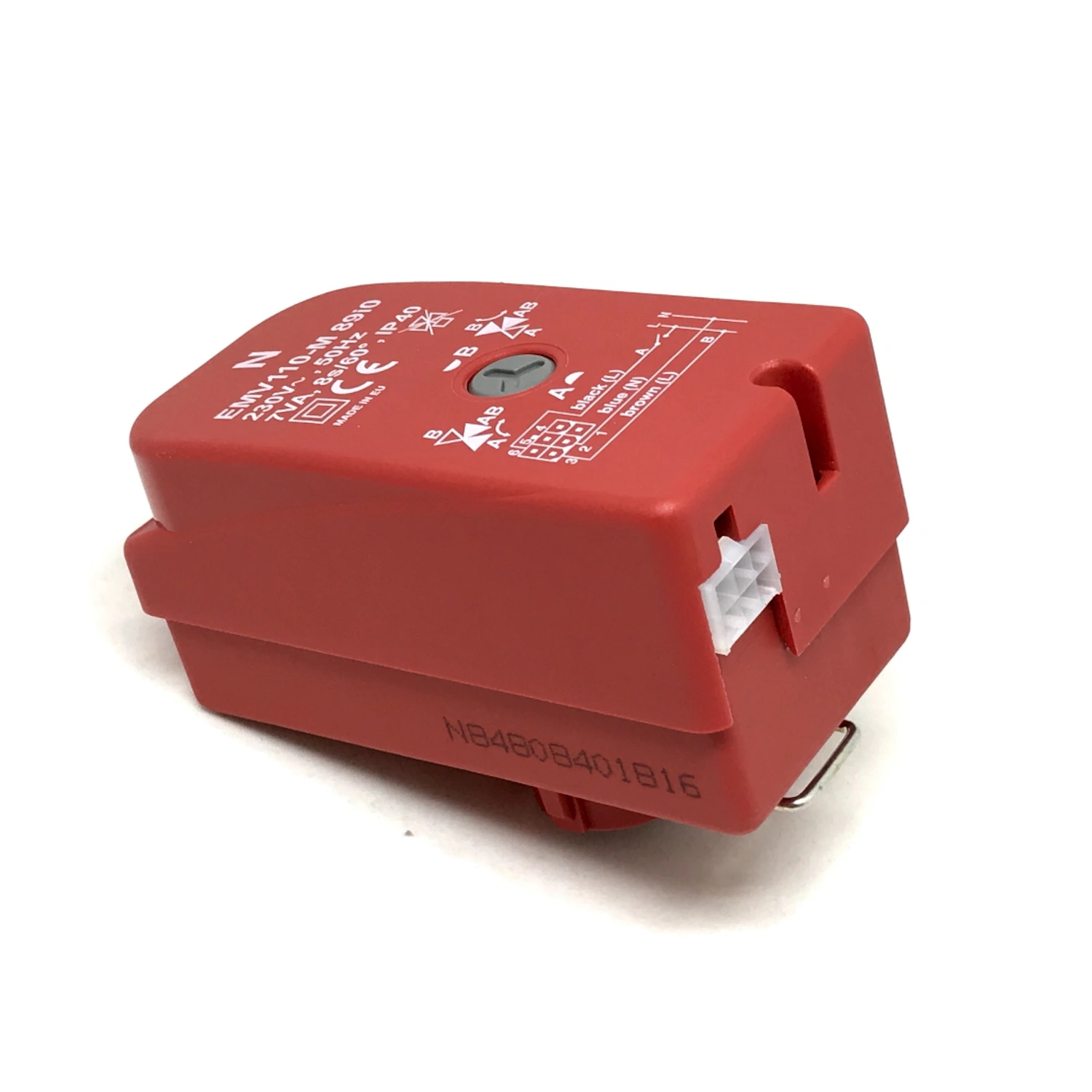

NIBE Actuator EMV 110-M Motor For 3-Way Valve
Original NIBE actuator EMV 110-M for 3-way valve, which provides safe switching between heating and hot water with a fast running time of 8 seconds.
Watch this product and we will notify you once it is back in stock.
NIBE Actuator EMV 110-M Motor For 3-Way Valve
Description
This original switching valve motor is manufactured for reliable operation and precise control in heat pump systems from NIBE. The actuator ensures that the switching between the production of heat and domestic hot water occurs smoothly and with high precision, which contributes to even indoor comfort and optimized energy use in the system.
Function and areas of application
- Optimal flow control: The motor operates the valve insert between the heating circuit and the hot water heater without unnecessary pressure losses.
- High operational reliability: The robust design can handle frequent switching and ensures stable heat distribution throughout the year.
- Easy component replacement: The design enables easy mounting directly on compatible valve housings with standardized quick-release fasteners and connection plug.
Technical specifications
- Model designation: EMV 110-M 8910
- Electrical connection: 230 V AC, 50 Hz
- Power consumption: 7 VA
- Running time and angle: 8 seconds per 60 degrees
- Enclosure class: IP40
- Electrical protection class: Class II (double insulated)
- Country of manufacture: Made in the EU
Compatibility and installation
The actuator fits most NIBE heat pumps and shunt groups equipped with corresponding 3-way diverter valves. The valve motor is controlled via the heat pump's internal circuit board with a three-wire connection for the neutral conductor and control phase for each operating mode.
