NIBE Current Sensor 3-Pack

Description

Nibe original current sensors (3-pack) are developed to provide the heat pump or electric boiler with continuous and precise measurement of the property's power consumption across all three phases. By integrating the current transformers in the electrical panel, the system's built-in power monitor can dynamically limit the electricity supply during high loads in the household. This protects the main fuses against overload and ensures energy-efficient and stable operation all year round.

Compatible models and part numbers

Nibe Ground source heat pumps and Ground source heat pumps

• Fighter 1130: 6 kW (089401), 8 kW (089402), 10 kW (089404), 12 kW (065016, 089405), 15 kW (065005, 089406), 17 kW (065010, 089407)
• Fighter 1135: 6 kW (065040), 8 kW (065041), 10 kW (065042), 12 kW (065043), 15 kW (065044), 17 kW (065045)
• Fighter 1150: (065037)
• Fighter 1230: 6 kW Cu (089441), 8 kW Cu (089442), 10 kW Cu (089443)
• Fighter 1235: 6 kW Cu (065060), 8 kW Cu (065061), 10 kW Cu (065062)
• Fighter 1250: Cu (065003, 065070)
• Fighter 1320: 20 kW (089450), 25 kW (089451), 30 kW (089452), 40 kW (089453)
• Fighter 1330: 22 kW (065017), 30 kW (065013), 40 kW (065008)
• Nibe F1145: F1145-6 (065088, 665202), F1145-8 (065089, 665203), F1145-10 (065090, 665204), F1145-12 (065091, 665205), F1145-15 (065092, 665207), F1145-17 (065093, 665209)
• Nibe F1155: F1155-6 (065274), F1155-6 EM 3x230V (065315), F1155-16 (065063)
• Nibe F1245: F1245-5 Cu 3x400V (065065, 665281), F1245-6 Cu (065075, 665282), F1245-6 R (065080), F1245-8 Cu (065076, 665283), F1245-8 R (065081), F1245-10 Cu (065077, 665284), F1245-10 R (065082), F1245-12 Cu (065078, 665285), F1245-12 R (065083)
• Nibe F1255: F1255-6 Cu (065267), F1255-6 R EM 3x230V (065316), F1255-16 Cu (065059)
• Nib F1330: F1330-22 (065100), F1330-30 (065101), F1330-40 (065102)
• Nibe F1345: F1345-24 (065110, 065297), F1345-30 (065111, 065298), F1345-40 (065112, 065299, 065301)
• Nibe F1355: F1355-28 (065436)

Nibe Exhaust Air Heat Pumps

• Fighter 360P: 13.5 kW Cu (089370, 089570)
• Nibe F370: Cu 3x400V (066013, 066040, 066055), E 3x400V (066057), RF 3x400V (066056)
• Nibe F470: Cu 3x400V (066014, 066050, 066064), RF 3x400V (066065)
• Nibe F730: CU (066048)
• Nibe F750: Cu 3x400V (066015, 066036, 066060), RF 3x400V (066037)

Nibe Air/Water Heat Pumps, Control Modules and Indoor Modules

• Fighter 2005: 8 kW (089505), 10 kW (089506), 14 kW (089507)
• Fighter 2010: 6 kW (089260), 8 kW (089261), 12 kW (089262)
• Controller SMO: SMO 10 (089259, 089638), SMO 40 (067225)
• Hydrobox HBS / HMA: HBS 10A-12 (069100), HBS 10A-16 (069033), HBS 10B-12 (069101), HBS 10B-16 (069035), HMA 100v1 (069044, 069164)
• Indoor module ACVM: ACVM 10-270 (069023), ACVM 10A-270 (069040, 069159), ACVM 10A-270 3x230V (069163), ACVM 10A-270-EM (069042, 069161), ACVM 10B-270 (069041, 069162)
• Indoor module VVM: VVM 240-Cu (089263, 089335), VVM 300-Cu (069010), VVM 310 (069430), VVM 310 EMK (069084), VVM 320 Cu (069108), VVM 325-Cu (069154), VVM 500 (069400)

Electric boilers, pellet boilers and combi products

• Alpha Keram: (089806)
• Attack: 13.5 kW (089829, 089834), 2000 (089803), 2000 El (089812)
• City: City VXN 13.5 kW (089833), City-VX 13 kW (089728, 089821)
• EVC / EVP: EVC-13 13 kW (089062, 089300), EVC-240 13.5 kW Cu (089225, 089310, 089590), EVP-230 (089832), EVP-270 (069016)
• Pellux: Pellux 200 (6181280)

Technical specifications

• Item type: Current sensor / Current transformer for power monitor (3-pack)

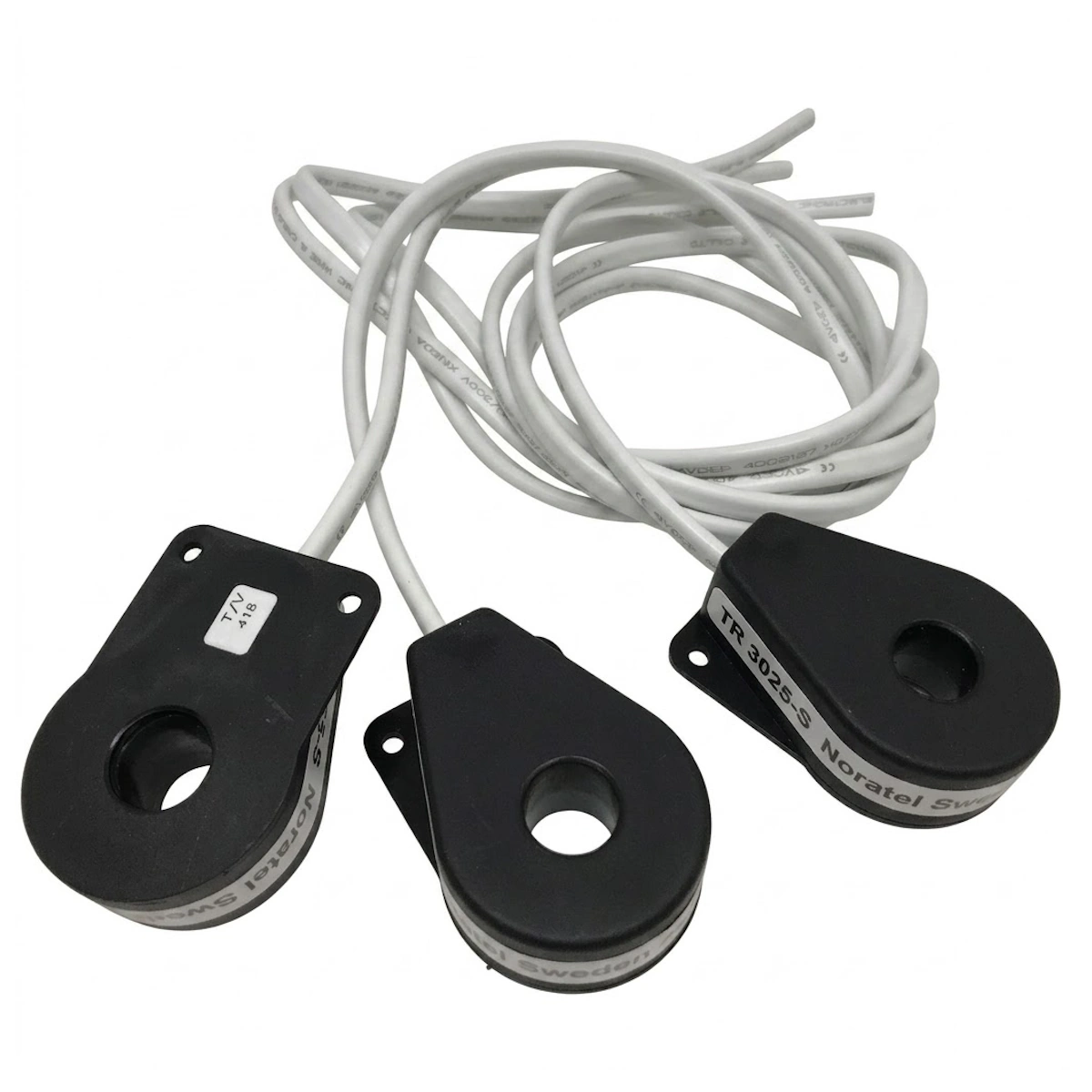

• Marking / Model: TR 3025-S Noratel Sweden (T/V 418)
• Function: Phase monitoring, current measurement and dynamic load balancing
• Connection: Pre-assembled two-wire cable per sensor for terminal connection in control module or heat pump

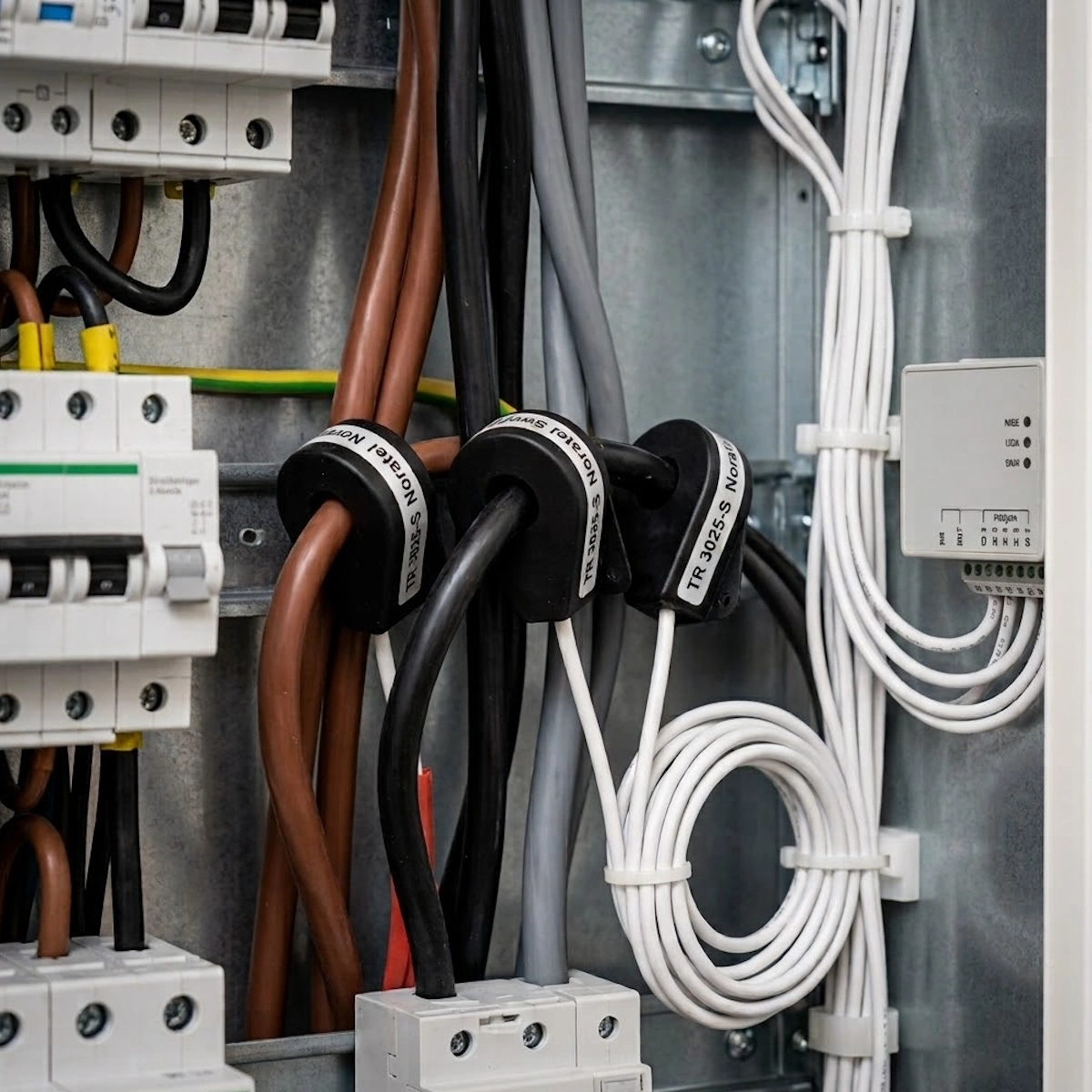

• Installation: Threaded over the respective incoming phase conductors (L1, L2, L3) at the main control panel
