NIBE Filter F7 For Ventilation Units

Description

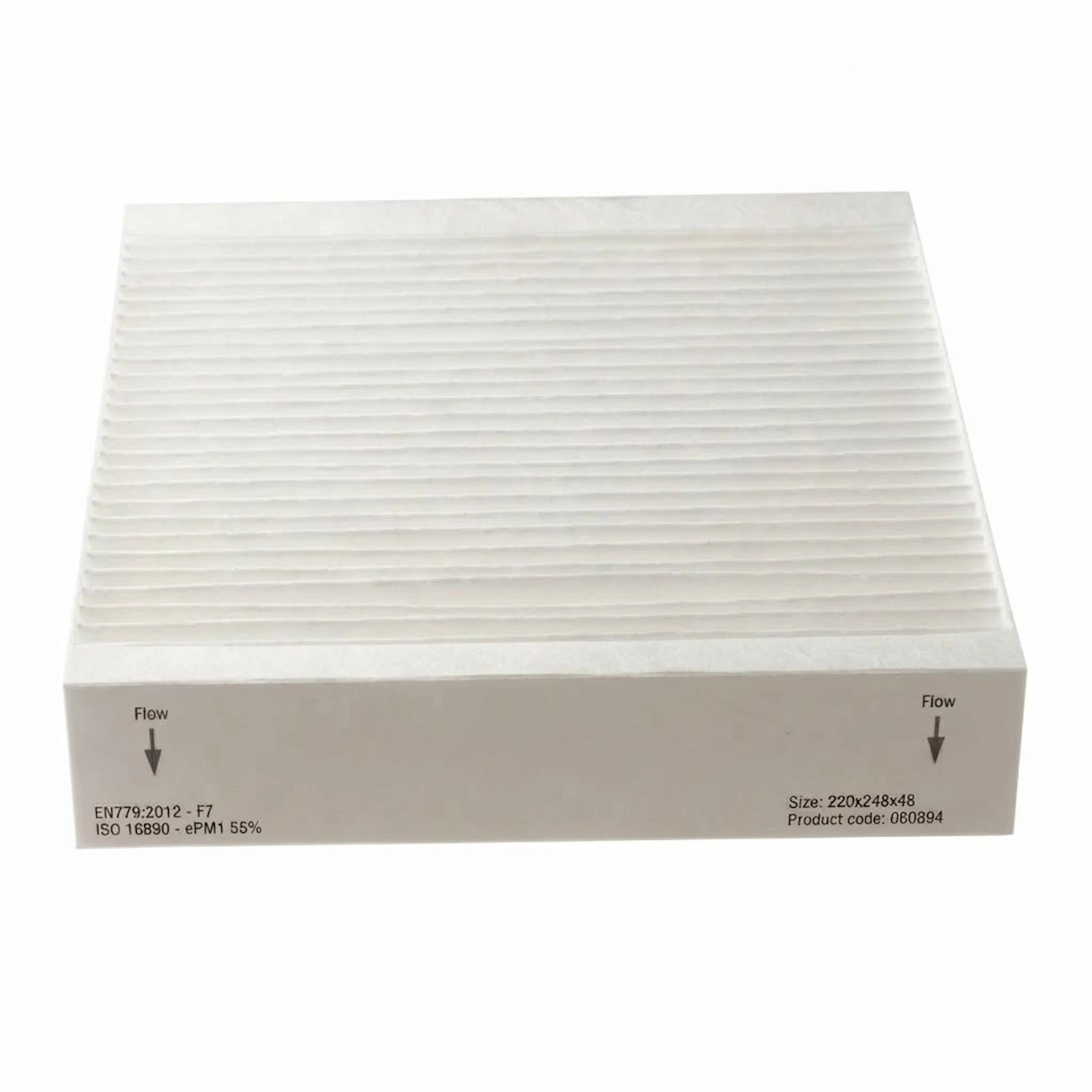

This fine filter in filter class F7 (classified according to the standard EN 779:2012 and ISO 16890 ePM1 55 percent) ensures accurate filtration of the supply air in the home's ventilation system and heat recovery unit. With the exact dimensions of 220 x 248 x 48 mm, the filter is manufactured to fit perfectly in compatible modules without air leakage. The filter medium has an optimized pleated structure that provides a large filter surface, low resistance to the air flow and a high dust collection capacity throughout the entire period of use.

Efficient filtration and improved indoor climate

The F7 fine filter effectively captures microscopic airborne particles before they reach the living spaces. It reduces pollen, fine road dust, soot particles, spores and other allergens from the outdoor air. This provides a noticeable improvement in indoor air quality and creates a cleaner and more pleasant living environment all year round.

Protection for the ventilation system and energy efficiency

In addition to cleaning the supply air, the filter provides important protection for the ventilation unit's internal components such as heat exchangers, duct systems and fans. By preventing dirt and dust from accumulating on vital parts, stable heat transfer and low energy consumption are maintained, while the service life of the system is extended.

Compatible ventilation units

Filter F7 fits the following models from NIBE:

• NIBE ERS 10-400 F7
• NIBE ERS 10-400 ALU
• NIBE ERS S10-400 F7
• NIBE ERS 10-500
• NIBE ERS S10-500 F7
• NIBE GV-HR 120-400
• NIBE GV-HR 120-500
• NIBE GV-HR 130-150
• NIBE GV-HR 130-250

Recommended replacement and installation

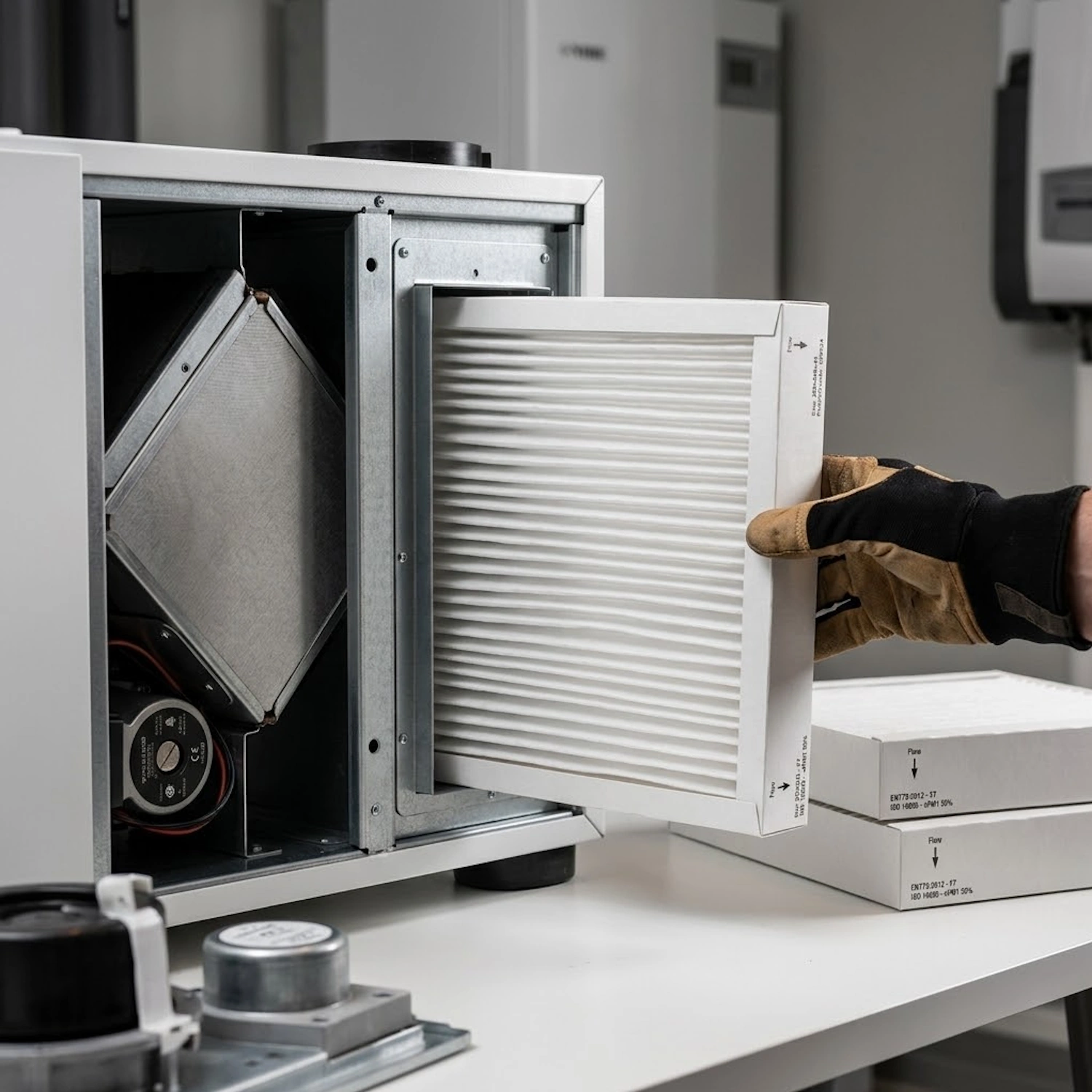

To ensure a continuously fresh indoor climate and energy-efficient operation, it is recommended to replace the filter once or twice a year, preferably before or after the pollen season. The filter is easily installed by following the marked airflow direction on the frame for quick and correct installation.
