NIBE Hose Kit For Cooling Unit Replacement 4-8.5kW

Description

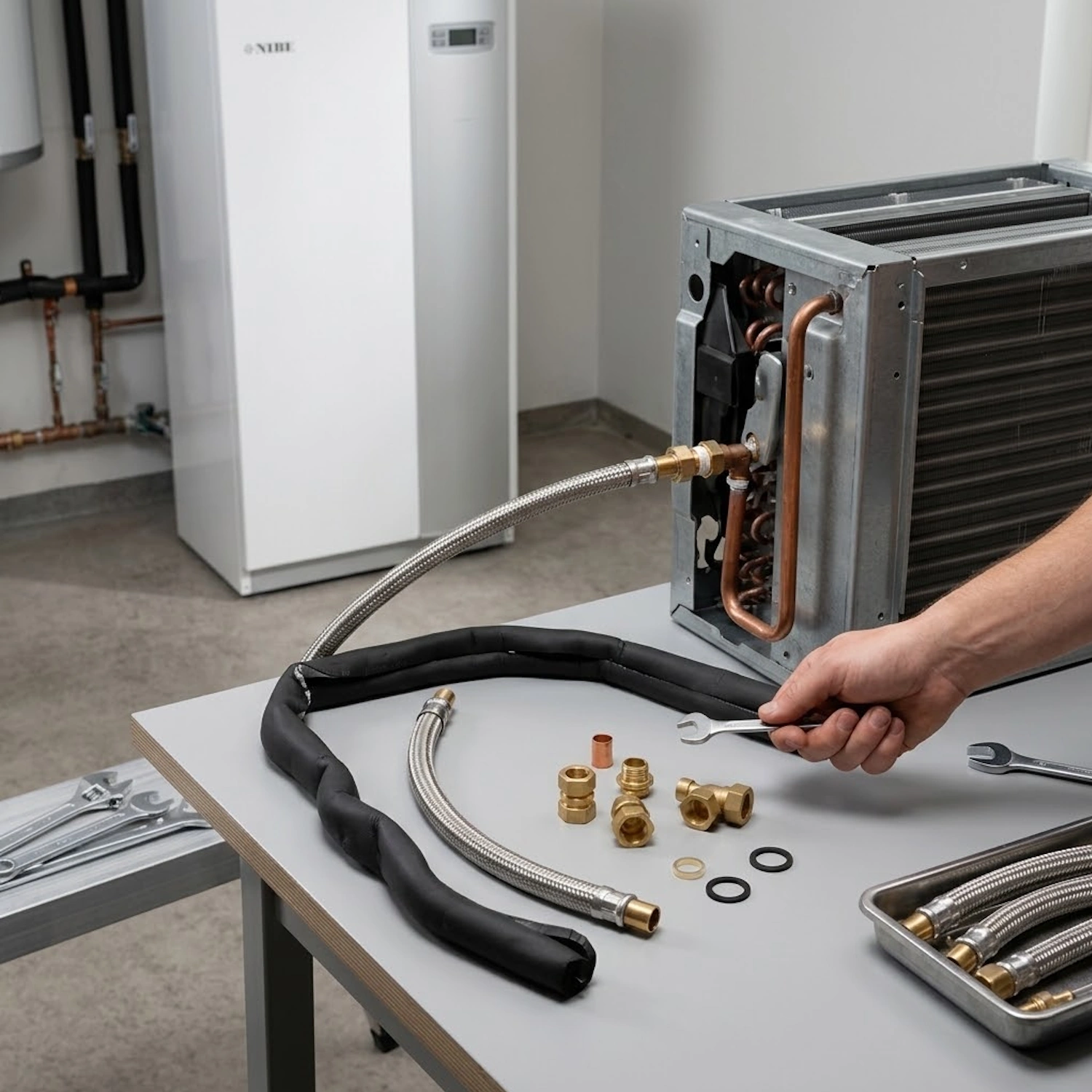

NIBE original hose kit for cooling unit replacement (4–8.5 kW) is a complete connection kit developed for smooth and safe connection when replacing or servicing the cooling module in NIBE heat pumps. The kit contains all the necessary flexible pressure hoses, couplings, nuts, clamp rings and insulation pipes required to ensure optimal sealing, vibration damping and operational reliability in the heat pump system.

Product Description and Features

When replacing or overhauling the cooling section of a ground source heat pump or exhaust air heat pump, it is crucial that the connections meet the highest mechanical standards and seal tightly against the brine and heat carrier circuits. This hose set is specially adapted for models with an output of between 4 and 8.5 kW and minimizes transmission noise and vibrations between the compressor unit and the house's pipe system.

• Original NIBE components: Guarantees exact fit, high reliability and full compatibility with factory specifications.
• Effective vibration damping: Stainless steel braided flexible hoses counteract resonance noise and relieve the pressure on the pipes during operation.
• Condensation insulation: The supplied insulation pipes counteract energy losses and condensation on the pipework.
• Complete installation kit: Contains compression fittings, gaskets and air vent screw for smooth pipe installation.

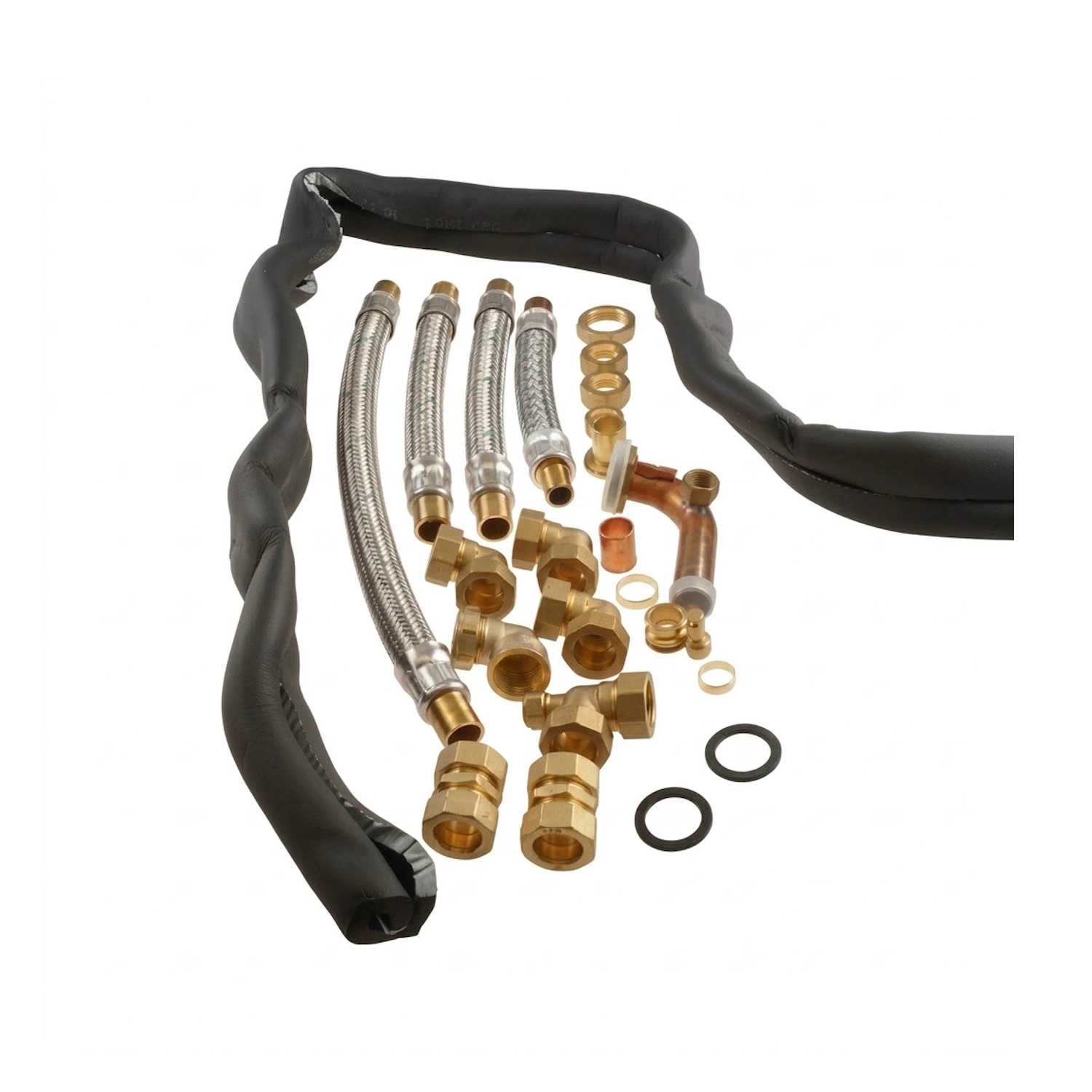

Components included in the kit

• Intermediate part for connection: 1 pc
• Flexible hose with bend/nut: 1 pc
• Flexible hoses (standard lengths): 2 pcs
• Flexible hose: 1 pc
• Nut D28 calibrated: 2 pcs
• Straight coupling 28 mm: 2 pcs
• Coupling 28 x 28 mm: 3 pcs
• T-coupling 28 mm: 1 pc
• Reduction 28 mm: 1 pc
• Nut 22 mm: 1 pc
• Clamping ring 22 mm: 1 pc
• Clamping ring 28 mm: 1 pc
• Union nut 1 inch: 1 pc
• Flange for circulation pump: 1 pc
• Angle coupling 22 mm: 1 pc
• Air screw: 1 pc
• Reinforcement sleeve: 1 pc
• Insulation tube (slotted): 2 pcs
• Gasket for union coupling: 2 pcs

Technical specifications

• Product type: Hose set / Accessories for cooling unit replacement
• Power range: 4 to 8.5 kW
• Connection dimensions: 22 mm and 28 mm clamping ring and G1 union coupling
• Hose material: Pressure and diffusion-tight flexible hose with stainless steel braiding
• Coupling material: Dezincification-resistant brass and copper
• Application area: Heating and cooling medium systems in heat pumps
