NIBE Temperature Sensor NTC 10kΩ

Description

This NTC 10 kΩ temperature sensor is developed for accurate temperature registration in modern heating systems and heat pump systems from Nibe. The sensor is often referred to as, for example, BT25 (external supply line sensor) and ensures that the control system continuously receives correct measurement values. This contributes to even indoor comfort, optimal energy use and stable operation of the heat pump all year round.

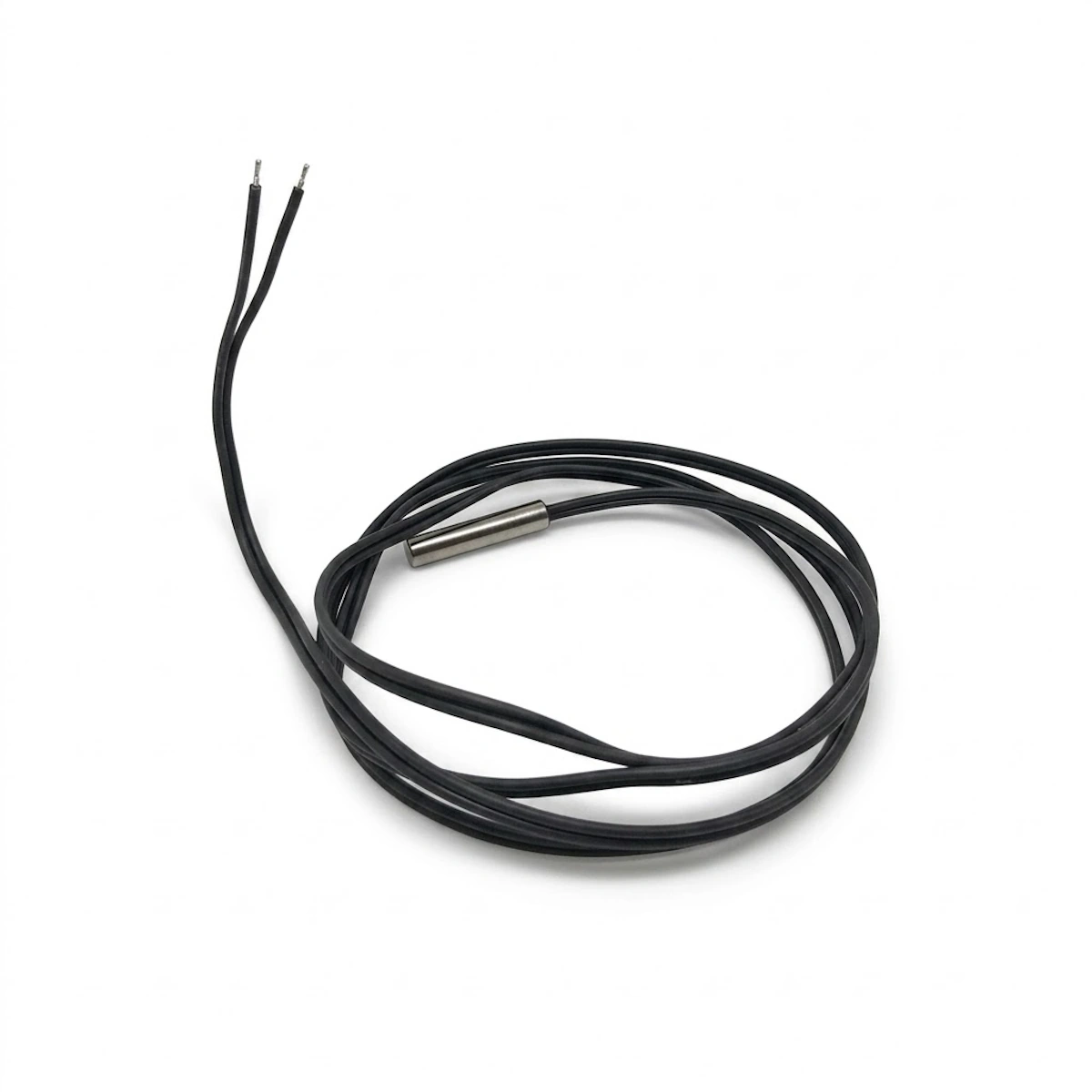

The sensor body is encapsulated in a durable metal sleeve that provides good heat transfer and protection against moisture and wear. The two connection cables facilitate installation directly to the terminal block in the heat pump or in the control and regulation module.

Technical specifications

• Sensor type: NTC thermistor (negative temperature coefficient)
• Nominal resistance: 10 kΩ at 25 °C
• Connection: 2-wire with stripped wire ends
• Enclosure: Protective metal sleeve for insertion or contact
• Designation: Nibe BT25, BT1, BT6 etc. (depending on the location in the system)
• Function: Temperature monitoring of the supply line, return line, storage tank or heating medium circuit

Compatibility and suitable Nibe models

The sensor is fully compatible with a wide range of Nibe ground source heat pumps, air/water heat pumps, exhaust air heat pumps and control modules:

• Nibe F1126 series: F1126-6 (065231), F1126-6 Se (065202), F1126-8 (065232), F1126-8 Se (065203)
• Nibe F1145 series: F1145-6 (065088, 665202), F1145-8 (065089, 665203), F1145-10 (065090, 665204), F1145-12 (065091, 665205), F1145-15 (065092, 665207), F1145-17 (065093, 665209)
• Nibe F1155 series: F1155-6 (065274), F1155-6 Em 3x230 (065315), F1155-16 (065063)
• Nibe F1226 Series: F1226-12 (065233)
• Nibe F1345 series: F1345-24 (065110, 065297), F1345-30 (065111, 065298), F1345-40 (065112, 065299, 065301), F1345-60 (065113, 065300, 065302)
• Nibe F1355 series: F1355-28 (065436)
• Nibe Air/Water and Extract Air: F2030-7 (064099), F730 R 1X230V UK (066017)
• Nibe Control Modules: SMO 20 (067224), SMO 40 (067225)

Benefits of the right temperature sensor

• High precision: Provides accurate temperature data that optimizes the system's efficiency.
• Easy installation: Easy connection and direct replacement for existing BT25 sensor.
• Safe spare part: Ensures long service life and reliable control of the heating system.
