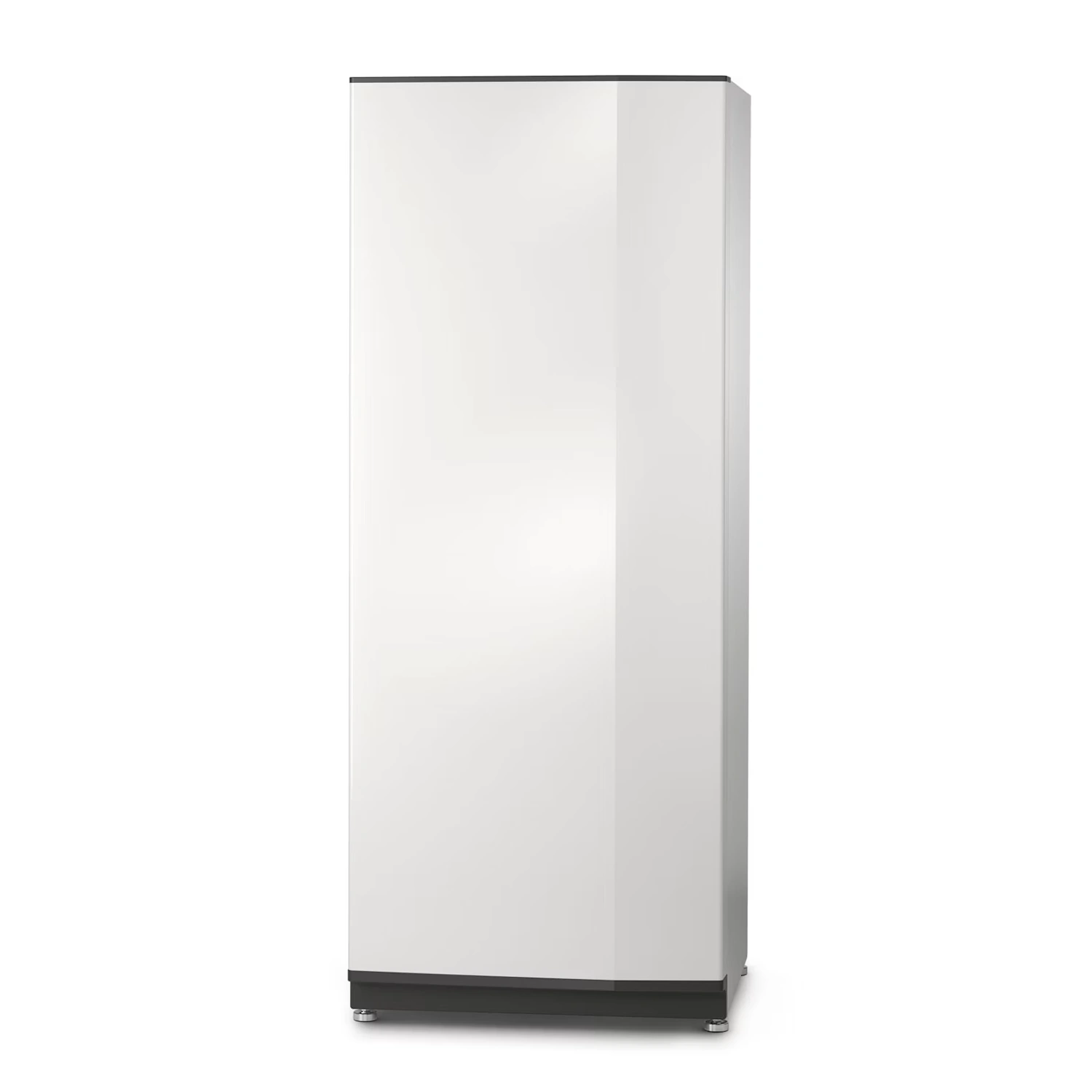

NIBE VPB S200 Water Heater

Description

NIBE VPB S200 is a modern and highly efficient water heater and accumulator tank, specially designed for smooth and energy-efficient connection to NIBE heat pumps and other compatible energy sources. With a well-thought-out design and high performance, the heater meets the household's need for abundant hot water while keeping operating costs at a stable and low level.

NOTE! Velltra assures that all NIBE products marketed and sold by us are manufactured in Sweden and contain components of the highest quality, specially adapted for the Nordic market and its challenging climate.

An integrated part of the smart and connected home

The NIBE S series is designed to be a natural and intuitive part of the connected home. In combination with a heat pump from the NIBE S series, the intelligent technology adjusts the indoor climate and hot water production completely automatically according to the household's routines. The system provides complete overview and flexible control directly via smartphone or tablet, which combines maximum everyday comfort with optimized energy use and reduced environmental impact.

Well-thought-out design and minimal heat losses

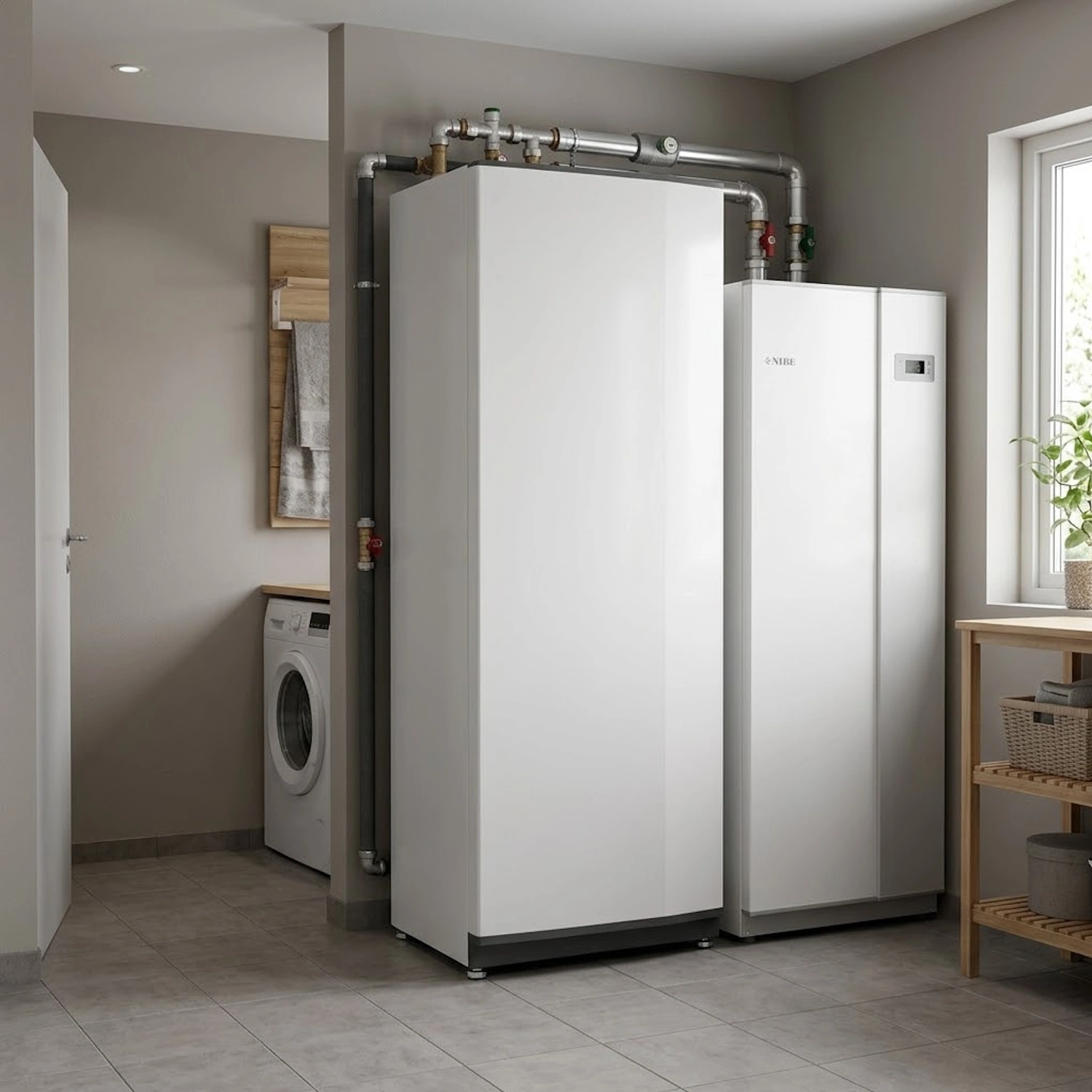

Together with the NIBE S1156 ground source heat pump, the NIBE VPB S200 offers a harmonious and stylish system solution. The products' customized design enables concealed piping between the units for a neat installation in a technical room or laundry room. The storage tank is enclosed in seamless polyurethane insulation, which minimizes heat loss and conserves energy effectively over time.

Choice of copper, enamel and stainless steel

To suit different types of water quality and installation conditions, NIBE VPB S200 is offered in three different corrosion-resistant versions:

• Copper (Cu): Proven material protection with a long tradition in Swedish households.
• Enamel (E): Durable ceramic surface protection adapted for lime-rich water.
• Stainless steel (R): Light and resistant material with high durability.

Warranty and reliability in the Swedish climate

Please note that the manufacturer’s full warranty is not applicable for units bought in Sweden and installed outside Sweden.

Safe business and delivery with Velltra Velltra is a pioneer in heat pumps and has over the years delivered thousands of units to satisfied customers across the EU. When you shop with us, your investment is safe all the way. All our shipments are always insured for transport, which guarantees extra fast and smooth handling if transport damage should occur.

Technical specifications

Common features for NIBE VPB S200

• Height: 1500 mm (required travel height: 1670 mm, approximately 1650 mm with feet removed)
• Width: 600 mm
• Depth: 600 mm (version R has a total depth of 626 mm)
• Pipe connection: 22 mm
• Maximum operating temperature: 85 degrees Celsius
• Maximum pressure primary side: 3 bar / 0.3 MPa
• Maximum pressure hot water heater: 10 bar / 1.0 MPa
• Efficiency class hot water preparation: C
• Color and surface layer: White, powder-coated steel sheet
• Compatibility: NIBE ground source heat pump S1155, air-to-water heat pumps F2040 and F2120

NIBE VPB S200 Cu (Copper-lined)

• Corrosion protection: Copper
• Volume: 178 liters
• Volume charging coil: 2.0 liters
• Net weight: 101 kg
• Heat transfer (60/50 degrees C at 50 degrees C hot water temperature): 13.0 kW
• Heat content at 50 degrees C: 8.0 kWh
• Equivalent amount of hot water (40 degrees C): 230 liters
• Heating time (10 to 45 degrees C, 8 kW charging power): 0.9 hours
• Heating time (10 to 80 degrees C, 8 kW charging power): 1.8 hours

NIBE VPB S200 R (Stainless steel)

• Corrosion protection: Stainless steel
• Volume: 176 liters
• Volume charging coil: 7.8 liters
• Net weight: 80 kg
• Heat transfer (60/50 degrees C at 50 degrees C hot water temperature): 10.1 kW
• Heat content at 50 degrees C: 8.2 kWh
• Equivalent amount of hot water (40 degrees C): 235 liters
• Heating time (10 to 45 degrees C, 8 kW charging power): 0.9 hours
• Heating time (10 to 80 degrees C, 8 kW charging power): 1.8 hours

NIBE VPB S200 E (Enameled)

• Corrosion protection: Enamel
• Volume: 178 liters
• Volume charging coil: 4.8 liters
• Net weight: 111 kg
• Heat transfer (60/50 degrees C at 50 degrees C hot water temperature): 10.1 kW
• Heat content at 50 degrees C: 8.3 kWh
• Equivalent amount of hot water (40 degrees C): 238 liters
• Heating time (10 to 45 degrees C, 8 kW charging power): 0.9 hours
• Warm-up time (10 to 80 degrees C, 8 kW charging power): 1.8 hours
