NIBE Wall Bracket For AMS 6, 8, 12

Description

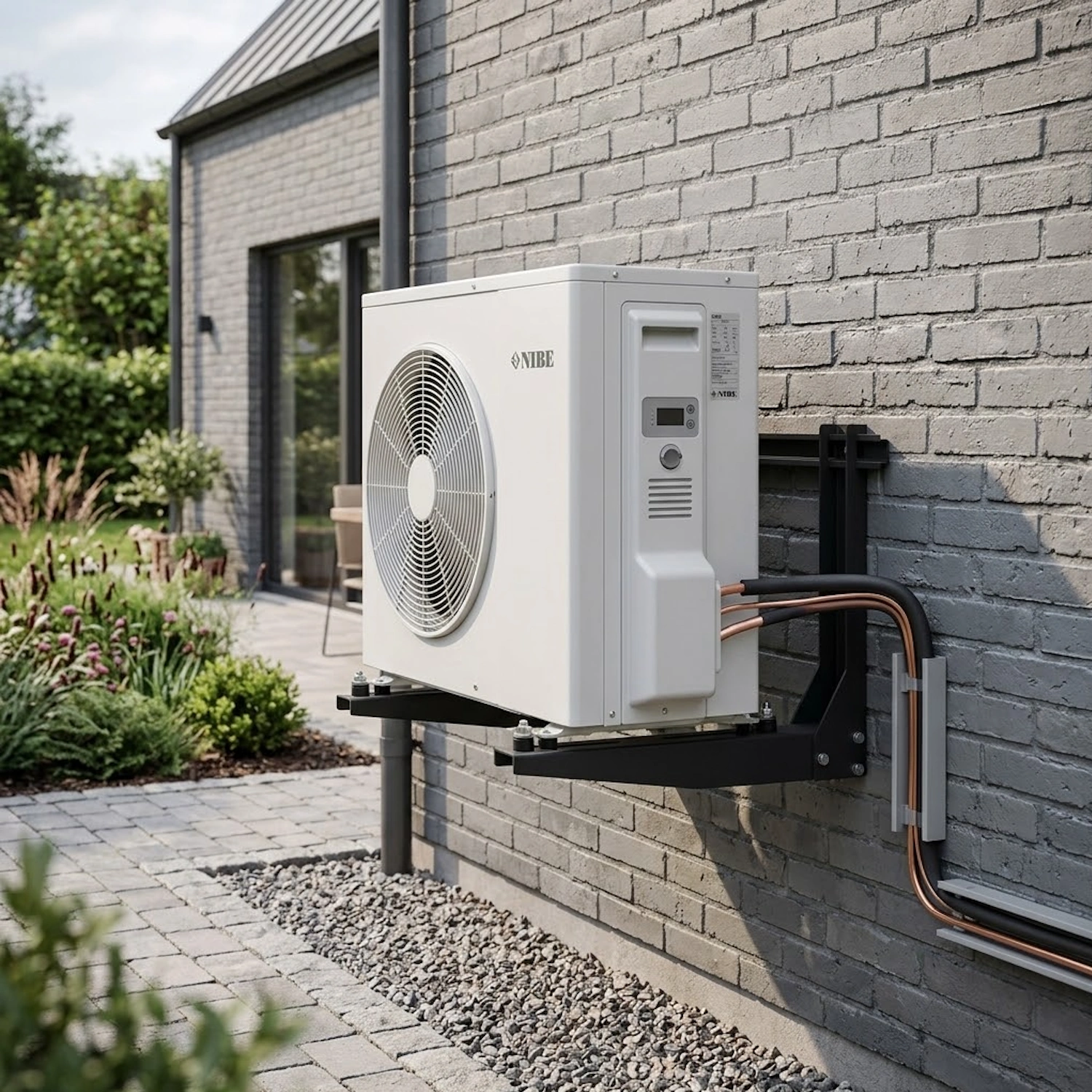

Create a safe and vibration-damped installation for the outdoor unit with an original wall bracket intended for air-to-water heat pumps in the NIBE AMS series. By lifting the heat pump off the ground, the unit is protected against the accumulation of snow, ice, moisture and leaves, while also making maintenance and cleaning around the property significantly easier.

Durable quality steel and weather-resistant surface treatment

This wall bracket is made of solid quality steel and provided with a durable, gray powder coating. The surface treatment provides a resistant surface layer that is specially developed to withstand changing weather conditions and demanding outdoor environments for many years to come.

Flexible construction and easy adaptation

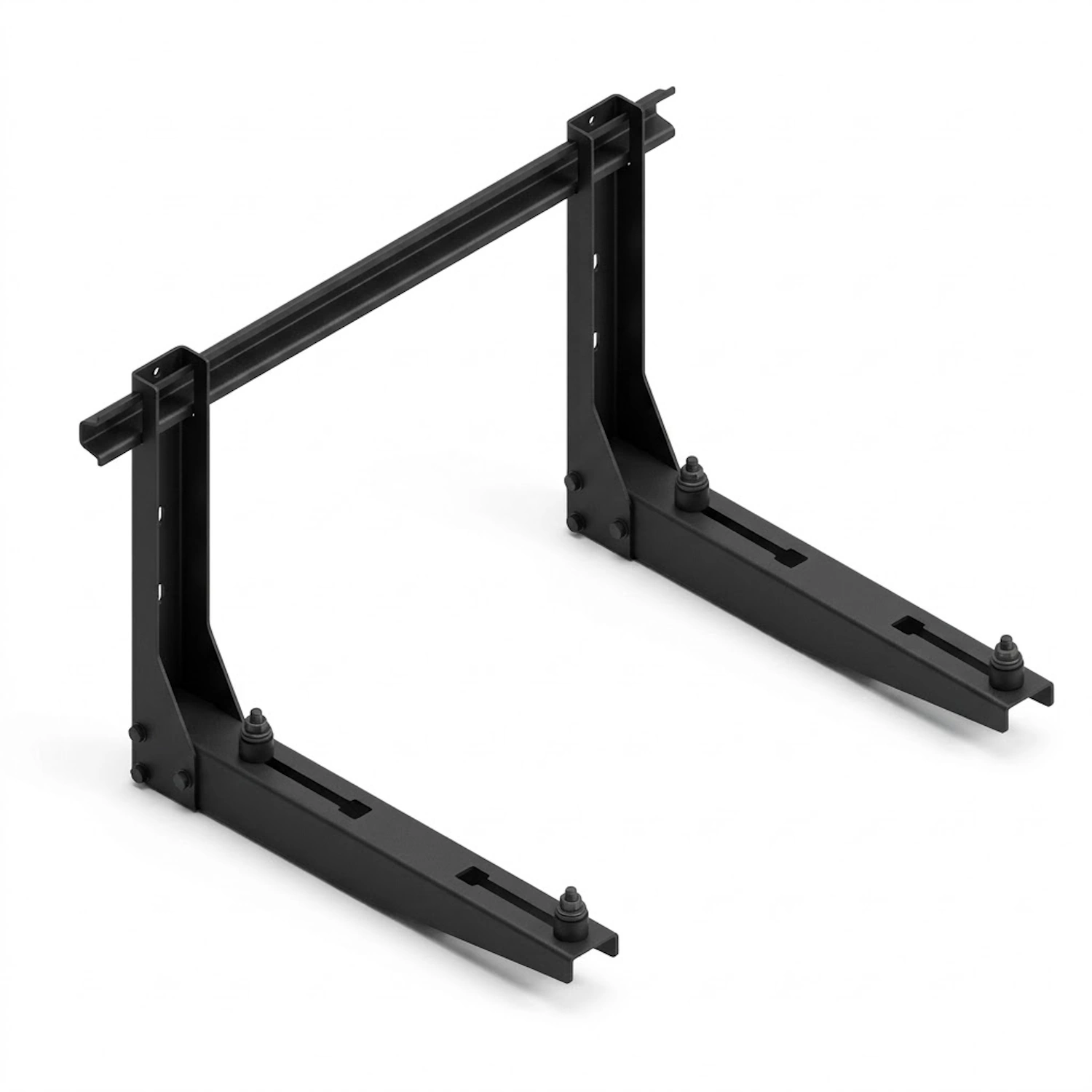

The wall bracket is designed with adjustable attachment points and grooves that make it easy to adapt the mounting dimensions to the specific model. The stepless adjustment option provides high precision when hanging and simplifies alignment when mounting on facades of wood, brick or concrete.

• Model-specific fit: Developed especially for NIBE AMS 6, AMS 8 and AMS 12.
• Effective ground protection: Keeps the outdoor part at a safe distance from ground level, snow drifts and splashes.
• Weather-resistant surface layer: The powder-coated steel construction provides long-lasting corrosion protection.
• Adjustable mounting: Flexible span in width and depth for adaptation to foundations and vibration dampers.

Technical specifications

• Product type: Wall bracket for outdoor unit for heat pump
• Compatibility: NIBE AMS 6, NIBE AMS 8, NIBE AMS 12
• Overall dimensions: 750 x 581 x 450 mm (Width x Height x Depth)
• Adjustable mounting width: 510 to 580 mm
• Adjustable mounting depth: 310 to 410 mm
• Material: High-quality steel
• Finish: Fire-coated
• Color: Gray
• Mounting type: Wall mounting
