Pellet Boiler Pellmax VX 25kW IP21 Värmebaronen

Description

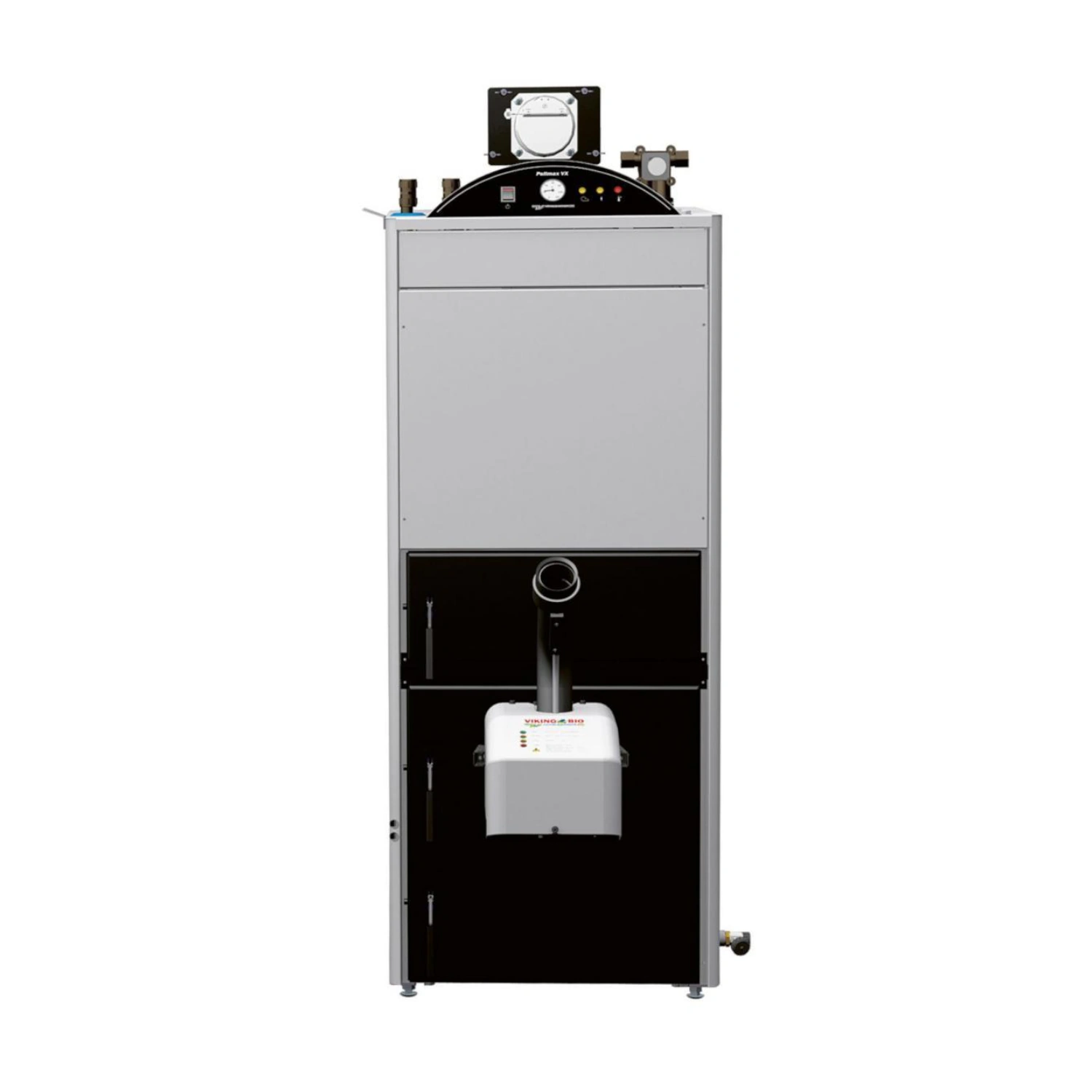

Pellmax VX from Värmebaronen is a complete, modern pellet boiler designed for villas with high demands on operational reliability, economy and comfort. The boiler delivers up to 25 kW pellet output and is equipped with a built-in 9 kW electrical backup and an efficient copper flow exchanger that produces fresh hot water the moment you turn on the tap. Thanks to its low profile (only 1,480 mm high) and easily accessible connections, the Pellmax VX is the perfect choice even in boiler rooms and basements with limited ceiling height.

Key advantages of the Pellmax VX

• Smooth dual system with electrical backup (9 kW): Mechanical, reliable thermostats handle the switching. Should the pellets run out, the built-in immersion heater switches on automatically - you never risk being without heat or hot water.
• Always fresh hot water: The integrated copper hot water exchanger prepares tap water instantly when it is consumed, which minimizes energy losses from stagnant hot water.
• Long sooting intervals: With a spacious ash box of a full 25 liters and a vertical tube-pipe system, the boiler requires minimal maintenance and is extremely easy to soot.
• Compact design: With a height of less than 1.5 meters and well-thought-out placement of pipe connections, installation is easy even in tight spaces.
• Clear control panel: Get a full overview of which type of energy (pellets or electricity) is currently active.

Function in pellet and electric operation

When firing pellets, the boiler water is heated partly by the pellet stove and partly by the flue gas tubes. When operating electrically, the boiler water is heated directly by the immersion heater. Water for the radiator circuit is taken out via a shunt valve, where the desired temperature for the radiators is obtained by mixing the hot boiler water with the cold water that returns from the radiator circuit. The electrical output is 9 kW in two stages, 4.5 + 4.5 kW. The power for pellets is 25 kW.

Area of application

Pellmax VX is a distinctive pellet boiler mainly intended for heating villas. The boiler is also equipped with electric heating, which is primarily intended as a backup if, for example, the pellets run out. However, Pellmax VX can only be used with electric heating if desired. The system is environmentally friendly, economical and easy to handle and requires minimal maintenance. High efficiency guarantees good fuel economy.

Warranty

Please note that the manufacturer’s full warranty is not applicable for units bought in Sweden and installed outside Sweden.

Specifications

• Pellet output / electric heater: 25 kW / 9 kW
• Nominal output (80-60°C / 50-30°C): 20 kW / 20 kW

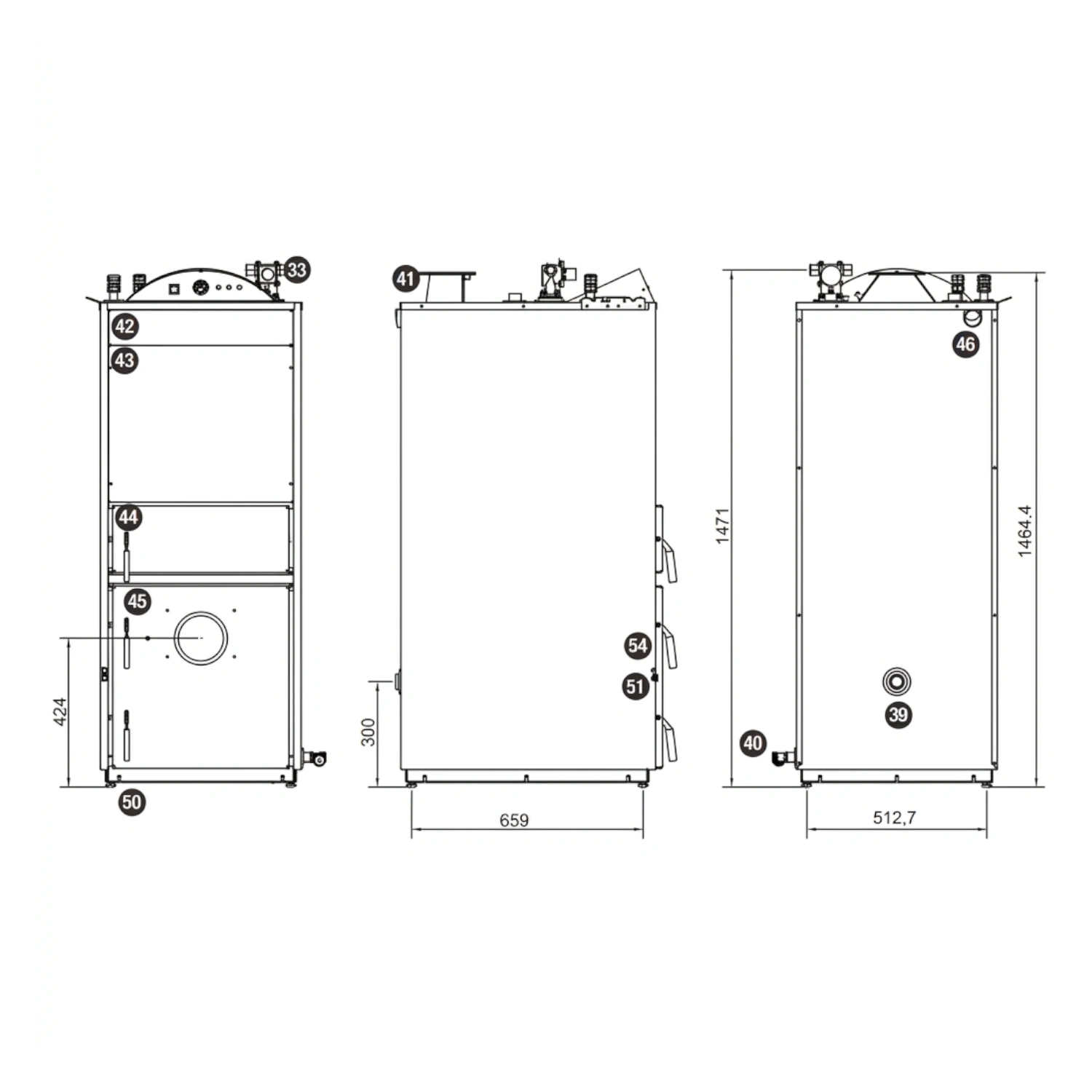

• Dimensions (W x D x H): 530 × 710 × 1,480 mm
• Burner opening (diameter): 130 mm
• Flue outlet / Connection: 181 mm / Duct end
• Flue flow (at 20 kW): 11.9 g/s
• Boiler volume / Exchanger volume: 195 liters / 2 liters
• Ash box volume: 25 liters
• Weight (empty / filled with water): 275 kg / 470 kg
• Boiler system: Tube pipe
• Hot water exchanger material: Copper
• Connection pipe diameter (Inlet / Return): 22 mm / 22 mm (external)
• Working pressure (min / max): 50 kPa / 3 bar
• Calculated pressure (boiler / exchanger): 2.5 bar / 10 bar (Test pressure: 4.3 bar)
• Operating temperature / Calculation temperature: 30–90 °C / 110 °C
• Minimum return temperature: 30 °C
• Electrical connection: 400V 3N~, 50 Hz (16A fuse, 13A current)
• Protection class: IP21
• Delivery condition: Supplied assembled with filling/draining valve
