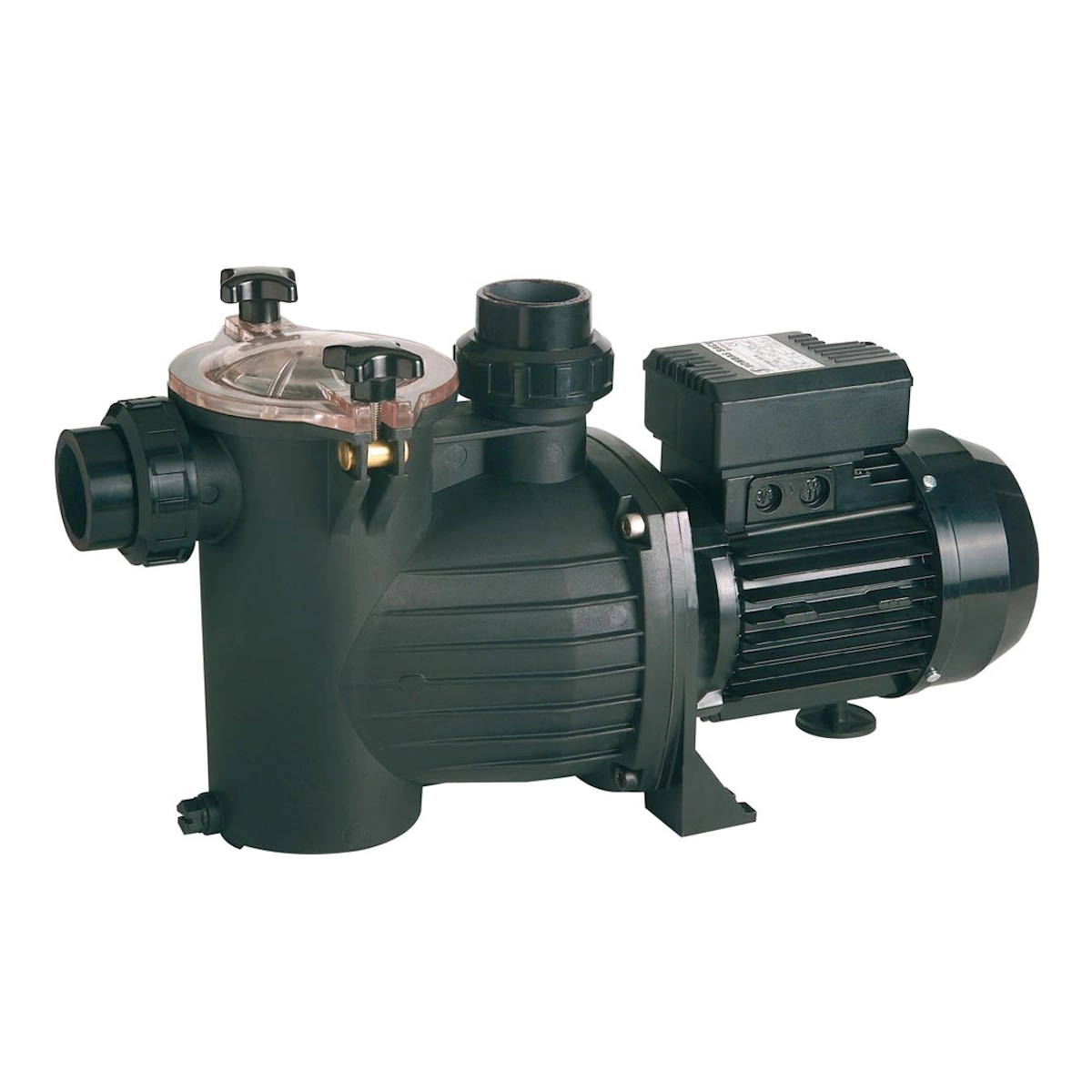

Swim & Fun Optima Pump 100 Pool Pump 0.75kW 1HP

Description

Swim & Fun Optima Pump 100 is a highly efficient and reliable circulation pump developed for larger pool facilities where high capacity and long service life are crucial. Thanks to a hydraulically optimized pump housing design, this pool pump delivers up to 70 percent more swimming water circulation compared to traditional pumps at the same energy consumption. With a power of 0.75 kW (1.00 HP), it is the perfect choice for keeping your pool water clean, clear and moving well.

Robust construction for saltwater and chlorine

This self-priming pool pump is designed to withstand the toughest environments. The stainless steel components (AISI-316) make the pump fully compatible with both classic chlorine systems and modern saltwater systems. The pump housing, cover and diffuser are made of glass-fibre reinforced polypropylene, a material that provides excellent protection against chemical water treatment products and guarantees a long mechanical durability.

Integrated pre-filter and quiet operation

The pre-filter basket effectively captures larger dirt particles such as leaves, twigs and insects before they reach the system, reducing the risk of clogging and wear. The transparent cover makes it very easy to visually check when the pre-filter needs to be emptied and cleaned. The motor is a standard asynchronous motor with IPX5 protection class and insulation class F, where the motor parts are completely separated from the water for maximum electrical safety. The integrated motor bearings are factory-lubricated for their entire life, which contributes to a quiet working environment and minimal maintenance requirements.

Key benefits and features

• High circulation capacity: Suitable for pool volumes up to 87,500 liters.
• Versatile water care: Fully compatible with both saltwater pools and chlorine treatment.
• Durable materials: Made of chemical-resistant and glass-fiber reinforced polypropylene.
• User-friendly design: Large integrated pre-filter with transparent cover for easy inspection.
• Reliable and quiet: Maintenance-free and lifetime sealed bearings provide quiet and safe operation.

Technical specifications

• Maximum flow (Qmax): 18,500 liters per hour
• Flow at 0.4 bar: 18,000 liters per hour
• Maximum pool volume: 87,500 liters
• Maximum lift (Hmax): 16 meters
• Power supply: 230 V / 50/60 Hz
• Maximum suction height (priming): 2.5 meters
• Power: 0.75 kW / 1.00 HP
• Current: 5.5 Ampere
• Hose connection: 50 mm
• Maximum liquid temperature: 40 degrees Celsius
• Maximum ambient temperature: 40 degrees Celsius
• Maximum working pressure: 2.5 bar
• Protection class: IPX5 (Insulation class F)
• Net dimensions (L x W x H): 470 x 180 x 265 mm
• Weight (net / gross): 7.9kg / 9.5kg
