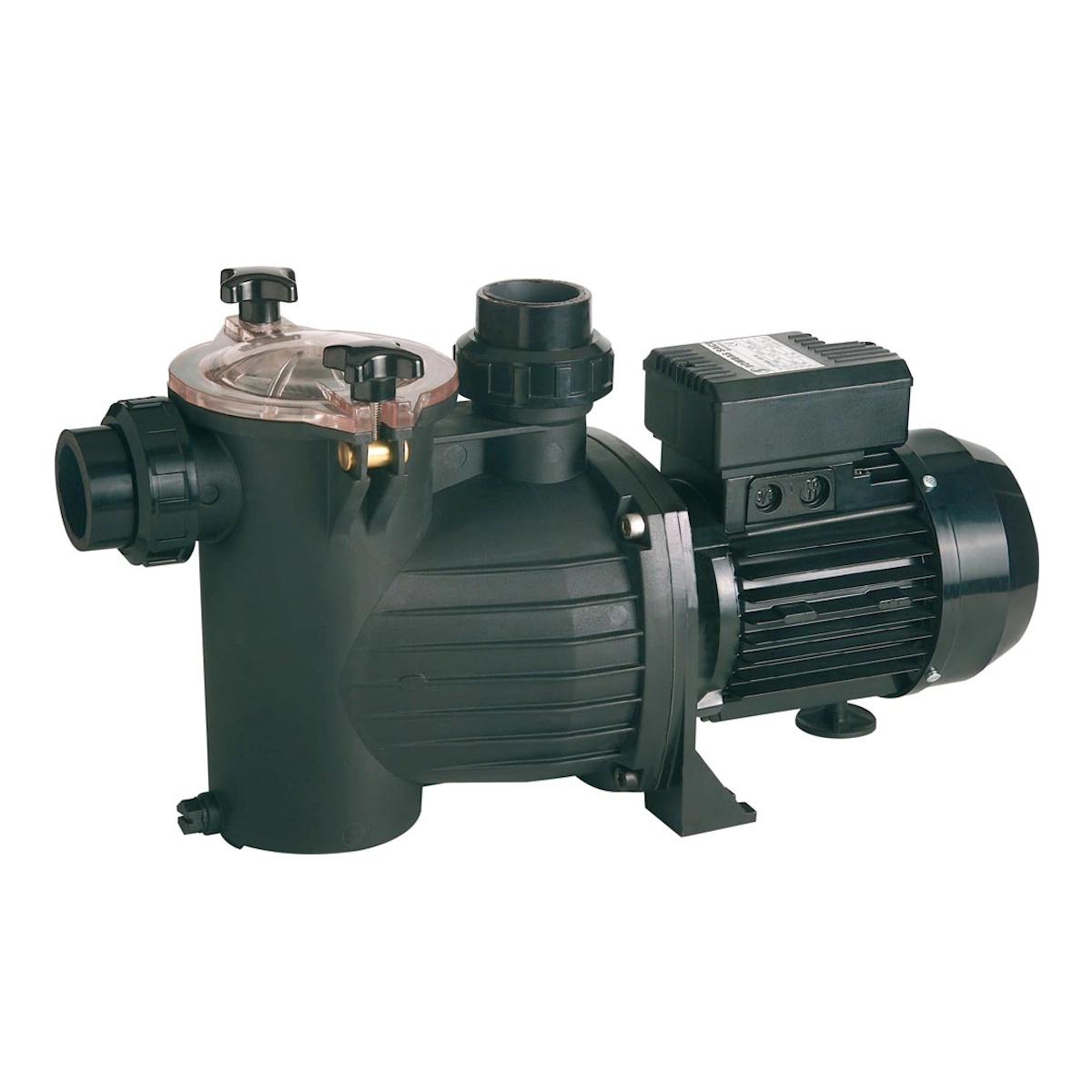

Swim & Fun Optima Pump 75 Pool Pump 0.55kW 0.75HP

Description

Are you looking for a reliable and efficient pool pump for your filter system? The Swim & Fun Optima Pump 75 is a high-performance and self-priming circulation pump, specially developed for larger free-standing pools and above-ground pools. Thanks to a unique hydraulic pump housing design, this model delivers up to 70% more swimming water circulation compared to traditional pumps at the same energy consumption, making operation both economical and environmentally friendly.

Designed for both chlorine and saltwater

This versatile pool pump is fully compatible with both classic chlorine treatment and saltwater systems. Critical components are made of acid-resistant AISI-316 stainless steel, which protects against corrosion in saltwater pools. The pump housing, cover and diffuser are made of glass-fiber reinforced polypropylene. This durable material is completely resistant to pool chemicals and water care products, ensuring a long service life and high operational reliability over many seasons.

High capacity and integrated pre-filter

With a maximum flow capacity (Qmax) of 17,000 liters per hour, the Optima Pump 75 handles demanding tasks and pool volumes of up to 80,000 liters. The pump is equipped with a spacious pre-filter basket that effectively captures larger dirt particles such as leaves, grass and insects before they reach the filter system itself. The transparent cover makes it easy to visually inspect the pre-filter and see exactly when it is time to empty and clean it.

Quiet operation and high safety

The pool pump is powered by a standard asynchronous motor with IPX5 protection class and insulation class F. The moving parts of the motor are completely separated from the water for maximum electrical safety. The sealed motor bearings are factory-lubricated for their entire life, which reduces maintenance to a minimum while ensuring a very quiet working environment in the garden.

Technical specifications

• Maximum pool volume: 80,000 liters
• Maximum flow capacity (Qmax): 17,000 liters/hour
• Flow at 0.4 bar: 16,000 liters/hour
• Maximum lift (Hmax): 15.5 meters
• Power: 0.55 kW (0.75 HP / 4.3 Ampere)
• Power supply: 230 V / 50/60 Hz
• Maximum suction height (priming): 2.5 meters
• Connection: 50 mm adhesive connection (also supplied with 38 mm hose connection)
• Maximum water temperature: Up to 40°C
• Maximum working pressure: 2.5 bar
• Weight (net/gross): 7.9 / 9.5 kg
• Dimensions (L x W x H): 470 x 180 x 265 mm
