Swim & Fun Solar Heating Panel 60x305cm

Description

Extend the swimming season in an environmentally friendly way and enjoy a pleasantly tempered pool water for a longer period. With this classic and efficient solar heating panel from Swim and Fun, the water temperature in the pool can be raised by between 4 and 6 degrees using pure solar energy. The solar collector system is delivered as a complete system that is easy to handle and install, making it an ideal solution for those who want to maximize the benefit of their pool during the summer months.

Environmentally friendly heating and smart use of accessories

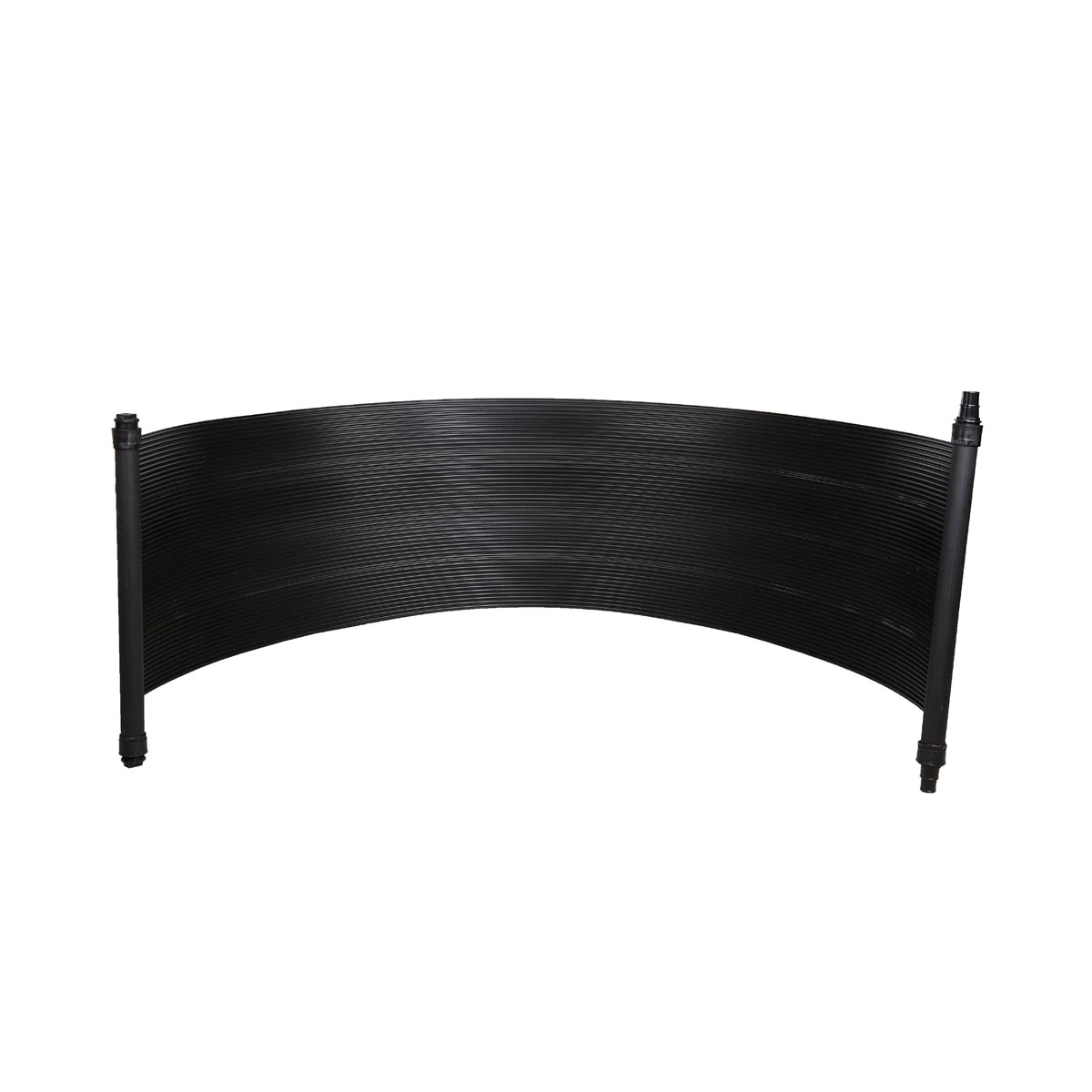

The solar collector is made of a durable, black plastic material that effectively absorbs the sun's rays and transfers the heat directly to the pool water flowing through it. To achieve the best possible results and maintain the built-up heat, it is highly recommended to use a thermal protection or pool cover at night, which prevents the energy from evaporating when the ambient temperature drops.

For optimal control over the flow, it is also recommended to connect a bypass kit (article number 1572). This accessory makes it possible to easily turn off the water circulation through the solar collector on cold days or at night, so that the pool water does not cool down unnecessarily when the sun is not shining.

Flexible placement and series connection for larger pools

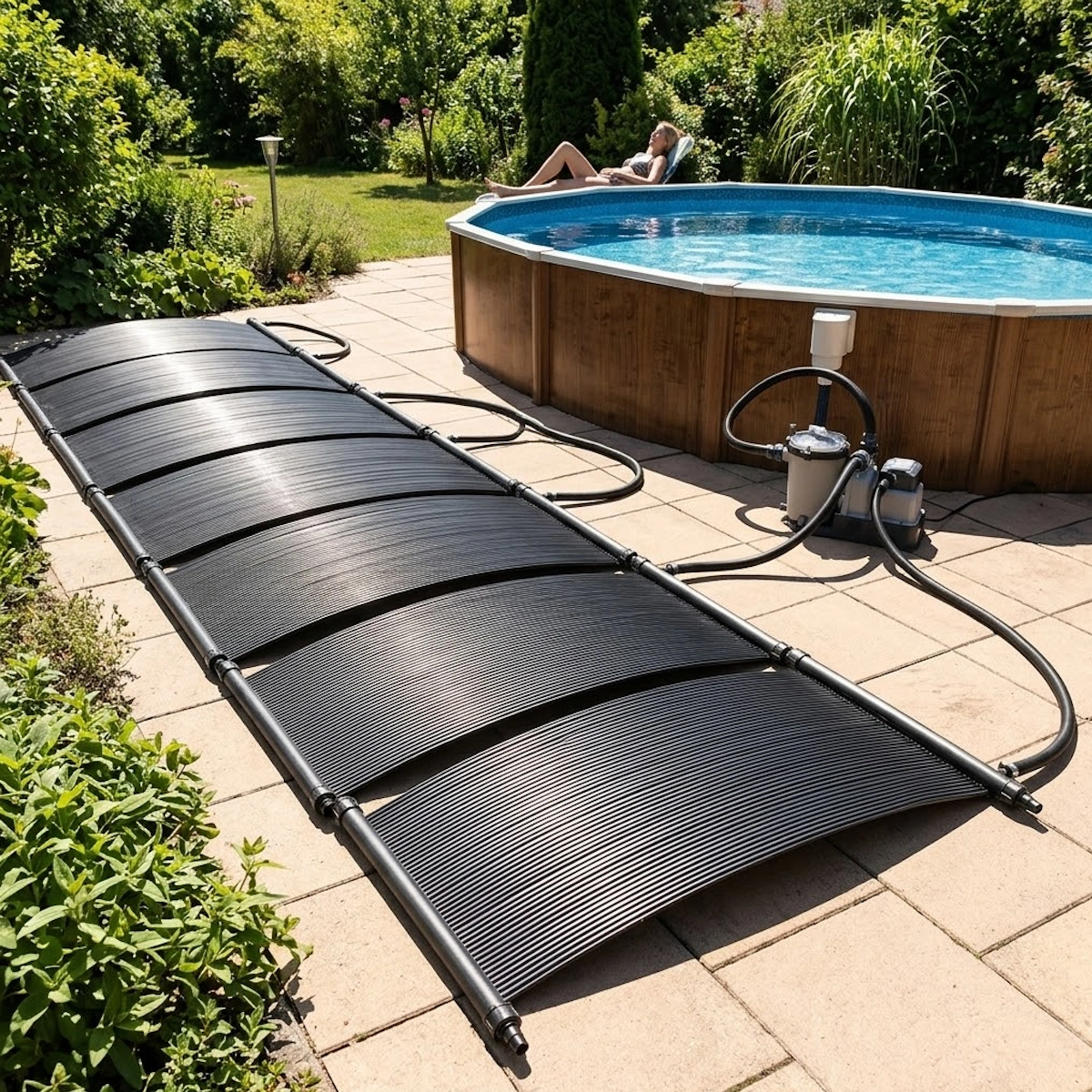

The flexible design of the system means that it can be placed in several different places in the garden. The panel can be advantageously mounted flat on the ground, attached to an adjacent fence or installed on a roof. Each individual panel measures 0.6 x 3.05 meters, and when delivered as a complete system, a total extended capacity is achieved. If there is a need for higher heating capacity for larger water volumes, the system is completely modular, which means that several panels and systems can be easily connected in series with each other to achieve the desired effect.

Sizing guide for different pool types

The need for the number of solar heating panels is primarily determined by the design, size and location of the pool. Here is a guide to help you choose the right number of panels for different pool models.

Round above ground pools

• Pools with a diameter of up to 4.6 meters: 2 panels
• Pools with a diameter of 5.5 to 7.3 meters: 2 to 4 panels
• Pools with a diameter of 8.2 meters: 4 panels

Oval above ground pools

• Pools with dimensions up to 3.7 x 7.3 meters: 2 panels
• Pools from 3.7 x 8.5 meters to 4.9 x 7.6 meters: 2 to 4 panels
• Pools from 4.9 x 9.8 meters to 5.5 x 10.4 m: 4 panels

Inground pools

• Pools with dimensions up to 4.6 x 9.1 meters: 4 panels
• Pools with dimensions up to 4.9 x 11.0 meters: 6 panels
• Pools with dimensions up to 6.1 x 12.2 meters: 8 panels

Technical specifications

• Material: Durable plastic
• Color: Black
• Dimensions per panel: 60 x 305 cm (Total capacity equivalent to 6.1 x 0.6 meters)
• Area of use: Freestanding pools and in-ground pools according to guide
• Expected temperature increase: 4-6 degrees Celsius under optimal solar conditions
