Swim & Fun Solar Panels For Hot Water

Description

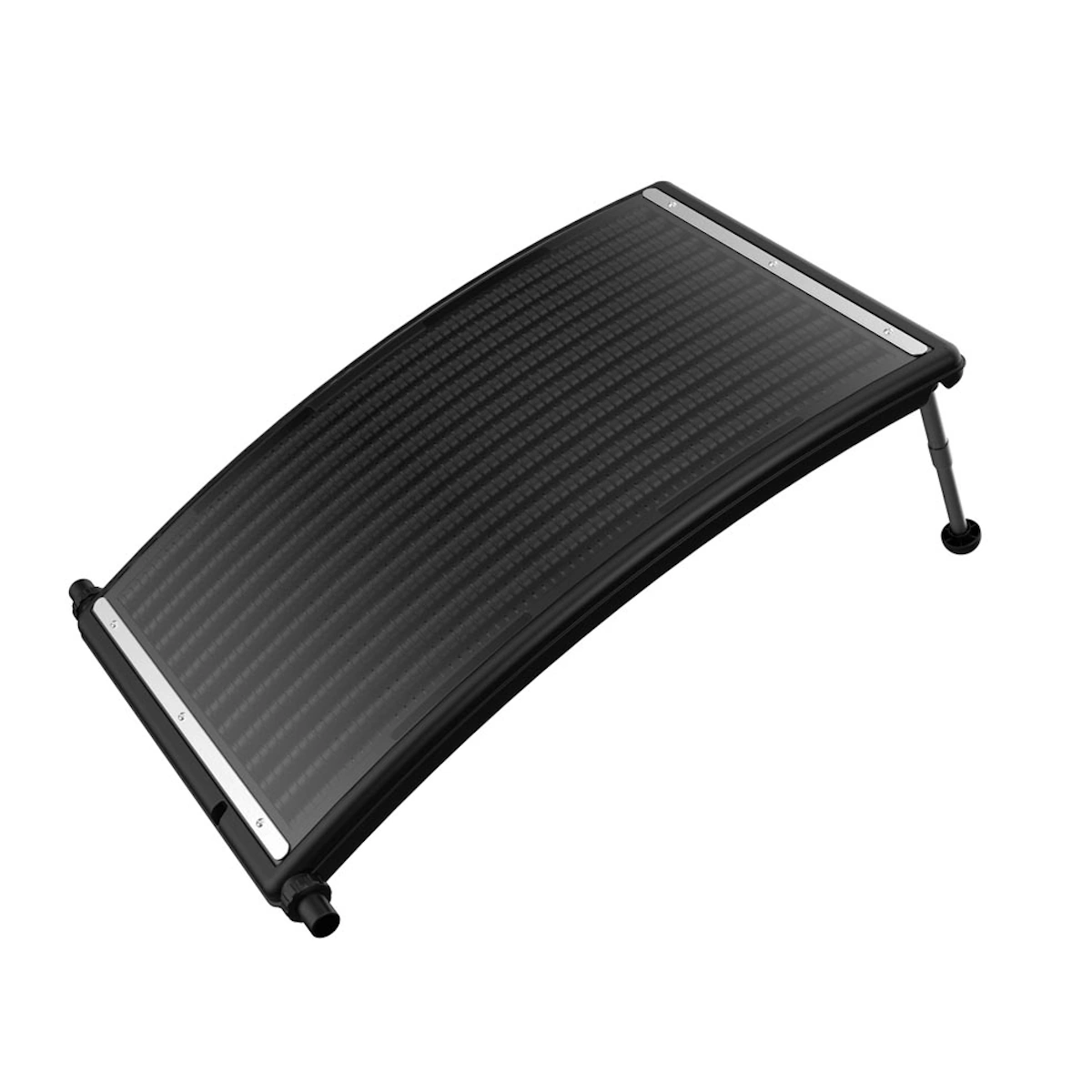

Would you like to enjoy pleasant and warm swimming water without high electricity costs? With a Swim and Fun SolarBoard solar heater, you can easily and environmentally friendly raise the temperature in your garden pool by up to 5 degrees. By taking advantage of the sun's natural rays, the pool water is heated in a cost-effective way, which makes the swimming season both longer and more enjoyable. This solar panel is made of durable black plastic and is specially designed for smaller freestanding, in-ground or integrated pools up to 5,000 liters. Thanks to the integrated support legs, the panel is placed at an optimal 30 degree inclination, which guarantees the best possible solar radiation and maximum heat absorption during the day.

How does a solar collector for a pool work

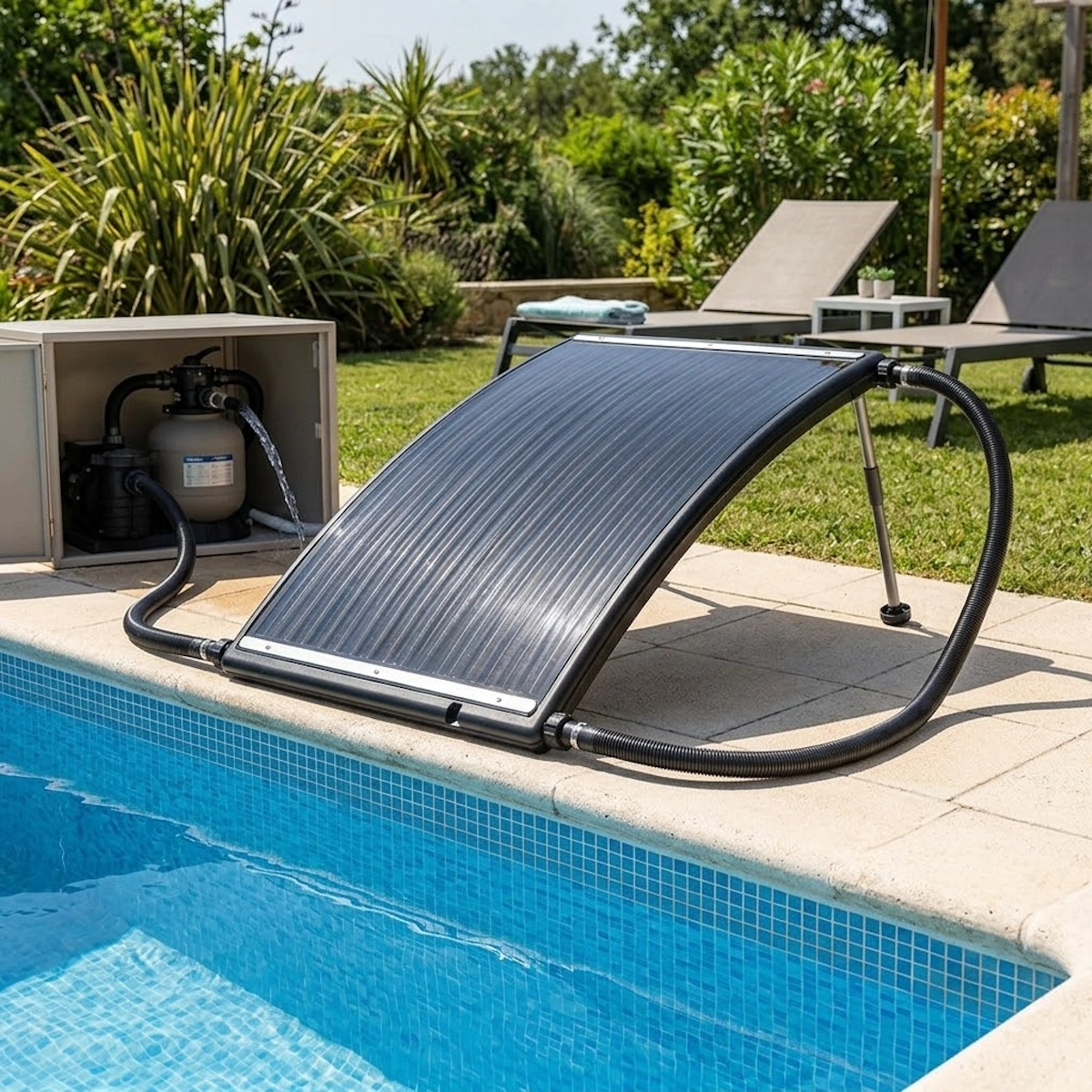

The principle behind a SolarBoard solar heater is as simple as it is ingenious. The cold water from the pool is led via the filter system and the circulation pump through the solar collector's built-in pipe system. When the sun shines on the black surface, heat is accumulated, which is directly transferred to the water before it flows back into the pool. This means that no additional power source is needed, but the system is powered entirely by the pool's existing pump. The final temperature increase is controlled by the number of hours of sunshine, the intensity of the sun and the current flow rate of the water.

Flexible series connection for larger pool volumes

Although an individual SolarBoard is adapted for smaller pools of up to 5,000 liters, the system is completely modular. This means that you can easily connect several solar collectors in a series if you have a larger pool volume or want even faster heating. This way, the capacity can be easily scaled up to suit your specific needs and pool dimensions.

Optimize the heat with a by-pass and thermal blanket

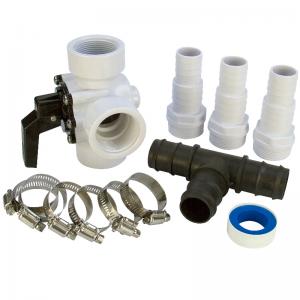

To get the most out of your solar heater, it is recommended to install a by-pass kit and use a summer blanket with thermal effect. A by-pass kit makes it possible to regulate the water flow and direct the water past the solar collector at night or on heavily cloudy days. This prevents the already heated pool water from cooling down unnecessarily when it passes through the panel without sunlight. If this is also combined with a thermal blanket on the water surface and good wind protection around the pool, heat loss is significantly minimized, and the comfortable temperature is maintained much longer.

Benefits of Swim and Fun SolarBoard

• Environmentally friendly and free heating using the power of the sun
• Raises the temperature of the swimming water by up to 5 degrees under optimal conditions
• Perfectly suited for pools up to 5,000 liters
• Possibility to connect several panels in series for larger water volumes
• Support legs provide a perfect 30 degree inclination towards the sun
• Minimal maintenance and easy installation to existing circulation pump

Technical specifications

• Maximum pool volume: 5,000 liters
• Dimensions (Length x Width x Height): 110 x 69 x 14 cm
• Maximum pressure at 20 degrees: 1 bar
• Maximum water flow: 10,000 liters per hour
• Water volume in the system: 15 liters
• Suitable for: Freestanding, in-ground and integrated pools
