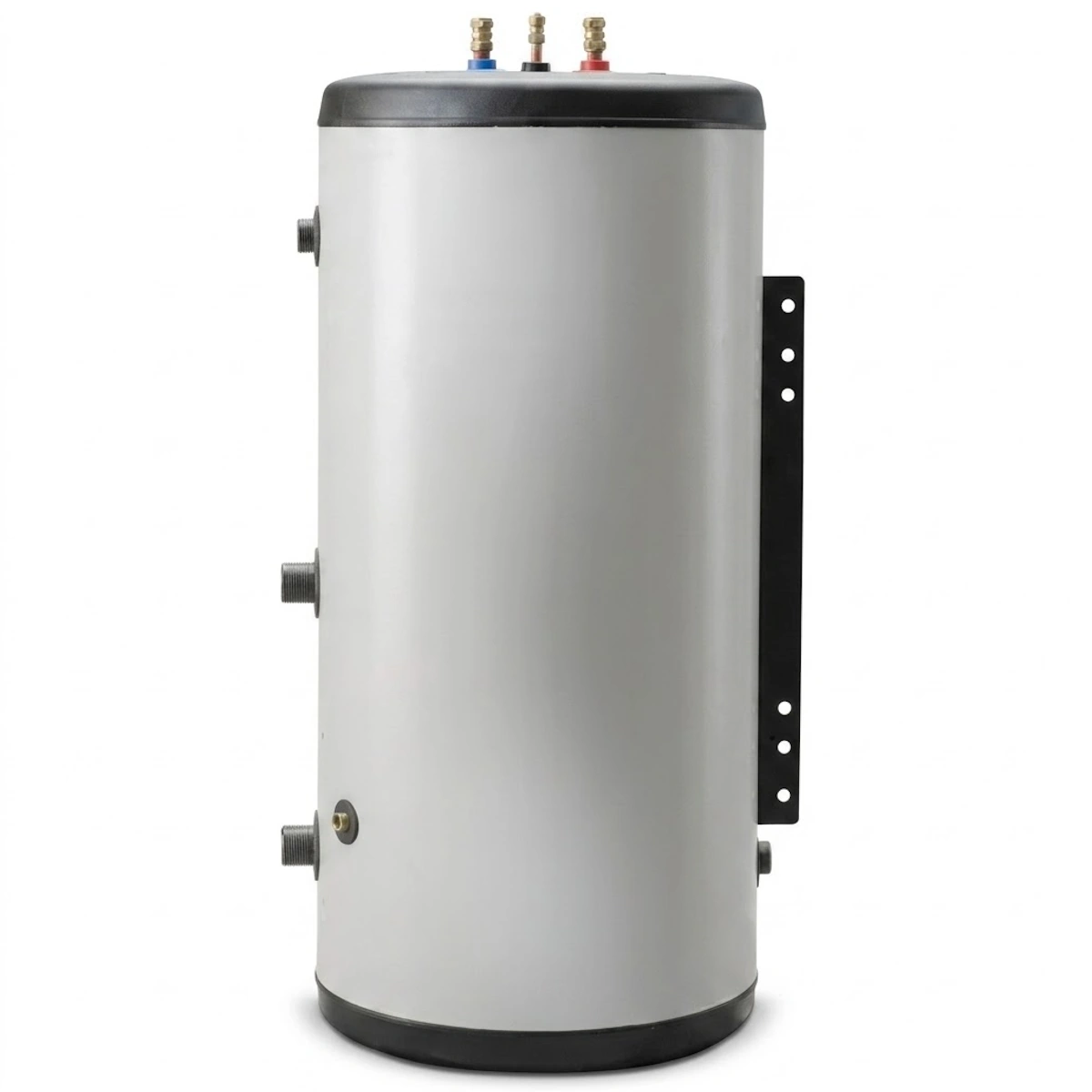

NIBE SP 300 Double-jacketed Accumulator Tank And Hot Water Heater

Description

NIBE SP-300 is an energy-efficient, double-jacketed accumulator tank with an integrated copper-lined hot water heater, designed to provide a reliable and even supply of both domestic hot water and heat. The heater can handle a maximum permissible operating temperature of up to 95 °C and a high working pressure in the water tank of up to 9 bar (10 bar maximum pressure). Thanks to the seamless insulation of molded polyurethane, energy losses and heat leakage are minimized, ensuring economical operation over a long period of time.

NOTE! Velltra assures that all NIBE products marketed and sold by us are manufactured in Sweden and contain components of the highest quality, specially adapted for the Nordic market and its challenging climate.

Flexible docking and connection for electric cassette

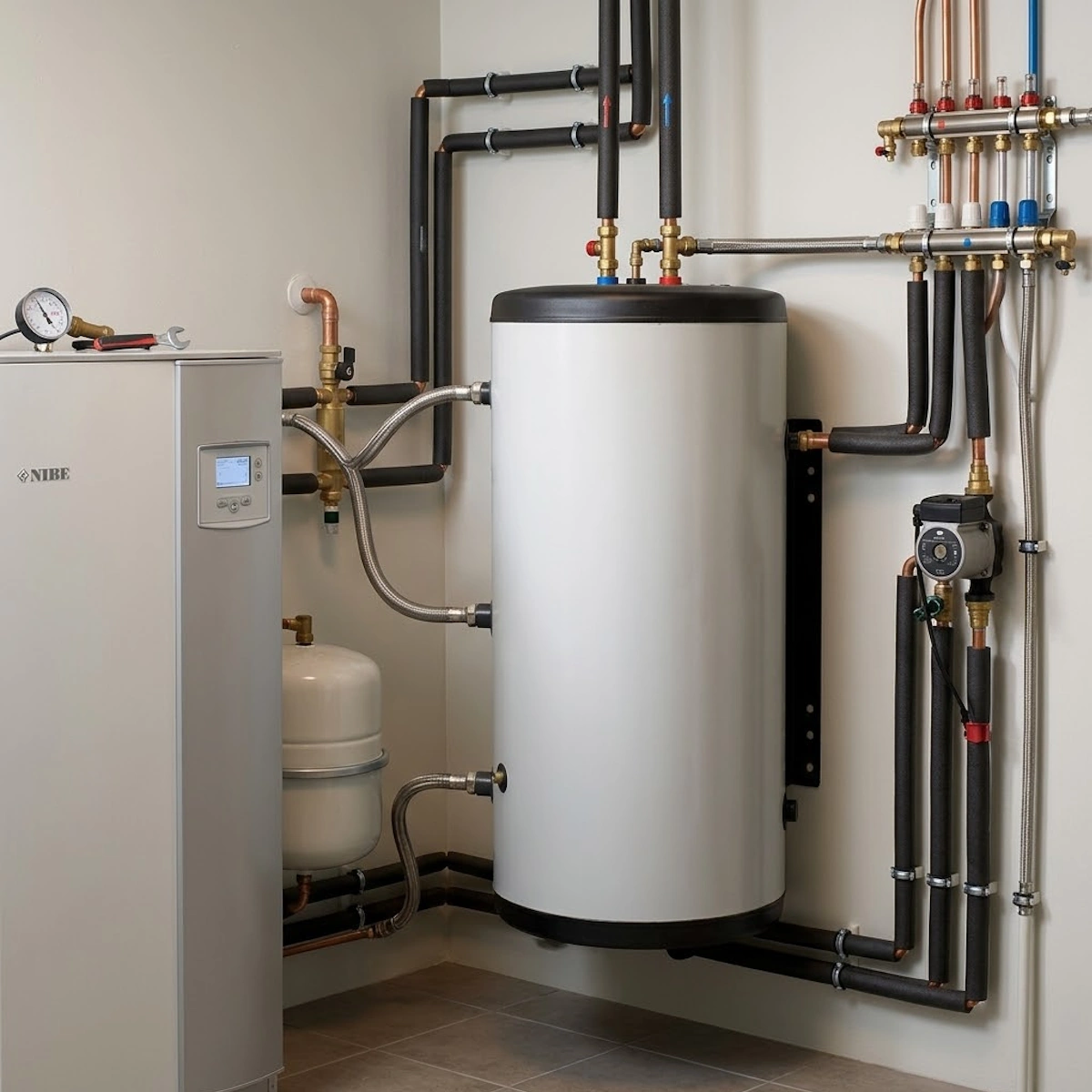

NIBE SP-300 is adapted for connection to external heat sources such as heat pumps, wood boilers or pellet systems. The model is also prepared with a special connection for an electric cassette or immersion heater, which makes it easy to add additional heat when needed and creates a flexible heating solution for the entire property.

Copper-lined corrosion protection and good hygiene

With an internal jacket in copper (Cu-lined), the water heater gets strong and proven corrosion protection. This guarantees clean and fresh domestic hot water with a long service life and low maintenance requirements.

Minimal energy loss with seamless polyurethane insulation

The fully cast insulation surrounds the accumulator tank without joints and provides superior heat retention. This results in reduced operating costs and stable thermal comfort.

Warranty and security

Please note that the manufacturer’s full warranty is not applicable for units bought in Sweden and installed outside Sweden.

Secure business and delivery with Velltra Velltra is a pioneer in heat pumps and has delivered thousands of units to satisfied customers throughout the EU over the years. When you shop with us, your investment is safe all the way. All our shipments are always insured for transport, which guarantees extra fast and smooth handling if transport damage should occur.

Technical specifications

• Model: NIBE SP-300
• Product type: Double-jacketed accumulator tank and hot water heater
• Total volume / Content: 296 liters (23 liters outer jacket / 273 liters preparation volume)
• Dimensions: Width 680 mm, Height 1460 mm (Diameter 680 mm x Height 1460 mm)
• Pipe connection: 22 mm x R32
• Working pressure / Max pressure: 3 bar / 10 bar (9 bar working pressure in water reservoir)
• Maximum operating temperature: +95 °C
• Electric heater connection: Yes, prepared for electric heater/electric heater
• Material: Steel sheet with copper-lined (Cu) inner jacket
• Surface treatment: Plastic-coated steel sheet
• Color: Gray and black
• Function: Hot water preparation and accumulation
• Installation: Floor-standing
