NIBE Capacitor 3µF

Description

A reliable operating capacitor is a central component for maintaining smooth and energy-efficient ventilation in heat pumps and exhaust air systems. This 3-piece capacitor set is adapted for fan motors in several well-known models from NIBE. When a fan does not start properly, emits a humming sound or drops in speed, replacing the motor capacitor is often the most effective measure to restore optimal function.

Optimal function and operational reliability

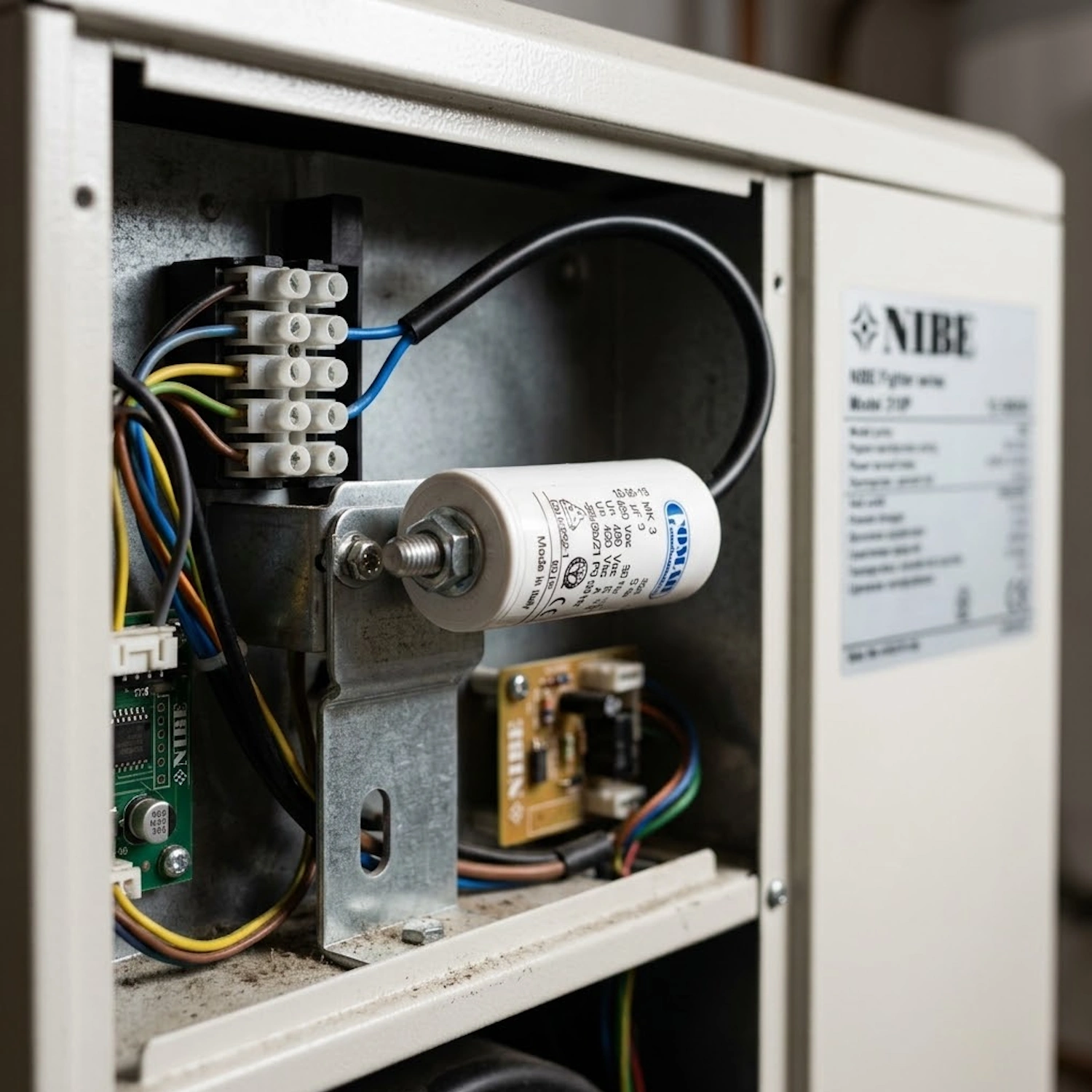

The operating capacitor ensures that the fan motor receives the correct starting torque and phase shift during continuous operation. Replacing a weakened or defective capacitor prevents unnecessary wear on the fan motors, while maintaining airflow, ventilation balance and heat recovery at a stable level.

Complete 3-part installation kit

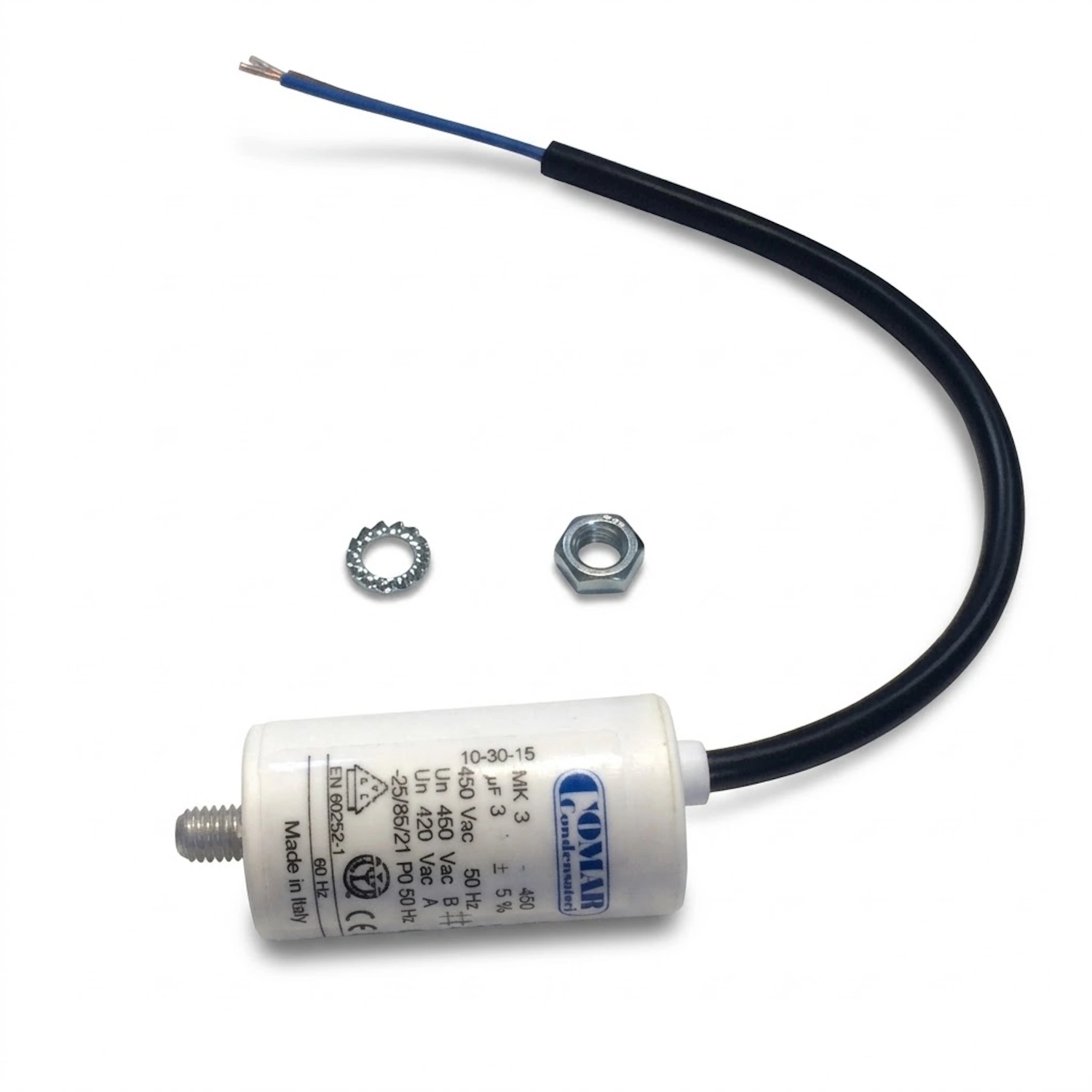

The product is delivered as a complete installation kit consisting of 3 parts:

• Operating capacitor 3 µF with connection cable
• Metal mounting nut for threaded mounting stud
• Toothed lock washer that counteracts vibrations and ensures stable mounting

Compatibility with NIBE heat pumps

This capacitor is compatible with exhaust fans and supply fans in the following models:

• NIBE FIGHTER 100P 130W CU
• NIBE FIGHTER 310P 12KW-230V R
• NIBE FIGHTER 315P/E 13.5KW E
• NIBE FIGHTER 600P CU

Technical specifications

• Capacitance: 3 µF (microfarad)
• Tolerance: ± 5%
• Rated voltage: 400 / 420 / 450 Vac
• Frequency: 50 / 60 Hz
• Temperature range: -25 °C to +85 °C
• Protection class / standard: EN 60252-1
• Manufacturer: Comar Condensatori (Made in Italy)
• Connection: Integrated two-core cable with stripped ends for easy installation
• Mounting: Threaded bolt in the bottom with included nut and toothed washer
