Inspection Hatch EI30 150x150mm White Arne Thuresson

Fire-rated inspection hatch 150x150mm in white steel with chisel lock and 40mm insulation for safe, high-quality wall or ceiling access, order here.

Description

Secure your wall or ceiling construction with a high-quality and certified inspection hatch. Our EI30-rated inspection hatch of 150x150 mm offers optimal fire protection without compromising on design.

This inspection hatch is designed for those who place high demands on safety and easy access. It is perfect for inspection or maintenance of cranes, ventilation dampers and other technical installations that require access through fire-rated walls or ceilings.

Product details and benefits:

  • Fire technical class: Meets the requirements for EI301 and EI302 (according to BBR, type approval 1239/95).
  • Highest quality: Made of robust, galvanized sheet steel with white powder coating (NCS S 0500-N, gloss 30) for a discreet finish.

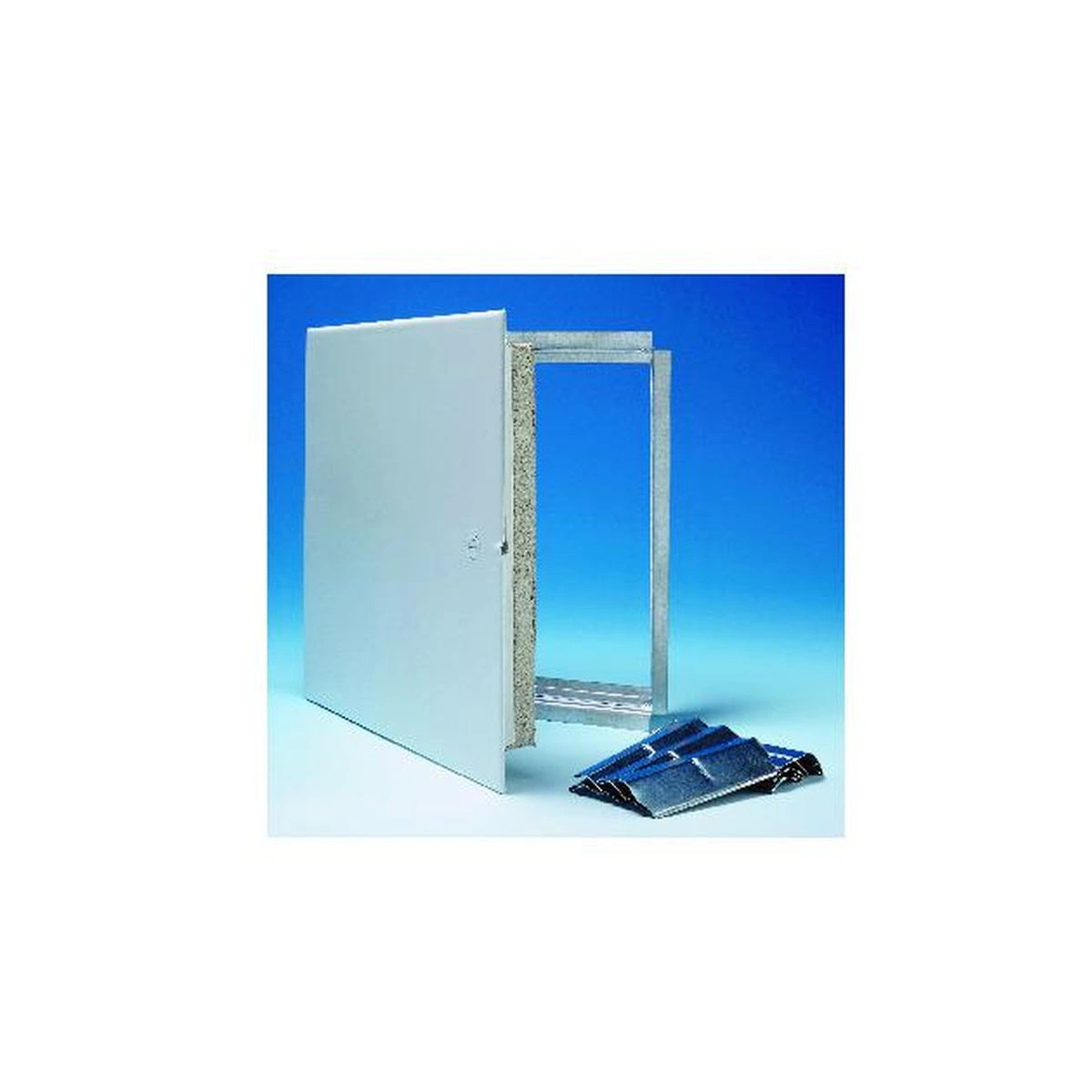

  • Easy assembly: Supplied complete with frame, door and easy-to-use clamps for panel thicknesses between 25–30 mm (2x12.5 mm or 2x15 mm).
  • User-friendly: Equipped with a reliable chisel lock and a durable piano hinge for long service life.
  • Flexibility: Available as an option for smoke gas tightness (Sa and S200) to meet specific ventilation requirements.

Specifications

  • Hole dimensions (HxBr): 150x150 mm
  • Fire technical class: EI301 and EI302
  • Material: Galvanized steel sheet
  • Color: Powder coated White (NCS S 0500-N)

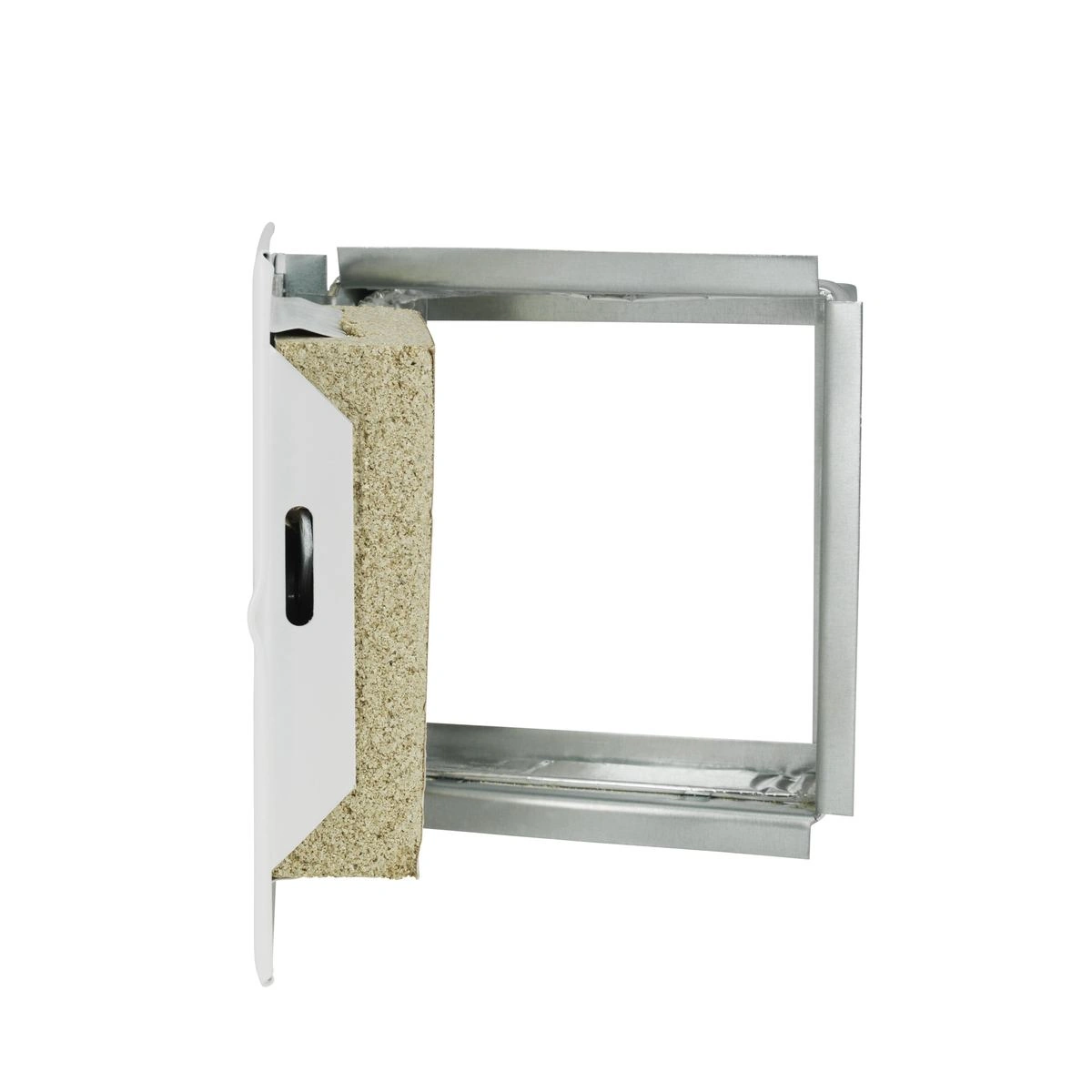

  • Insulation: 40mm fire board
  • Weight: 1.1kg
  • Panel thickness: 25–30mm (2x12.5 - 2x15 mm)
  • Hinges; Yes
  • Chisel lock: 1pc
