Inspection Hatch EI30 200x200mm White Arne Thuresson

Description

This high-quality inspection hatch is designed for professional installations in walls and ceilings where high demands are placed on both aesthetics and fire safety. The hatch is perfectly suited for inspecting technical installations such as ventilation dampers, taps and electrical connections.

The advantages of this fire-rated inspection hatch:

• Certified fire safety: Approved according to BBR in fire technical class EI30 (1 & 2), which provides reliable separation in the event of a fire.

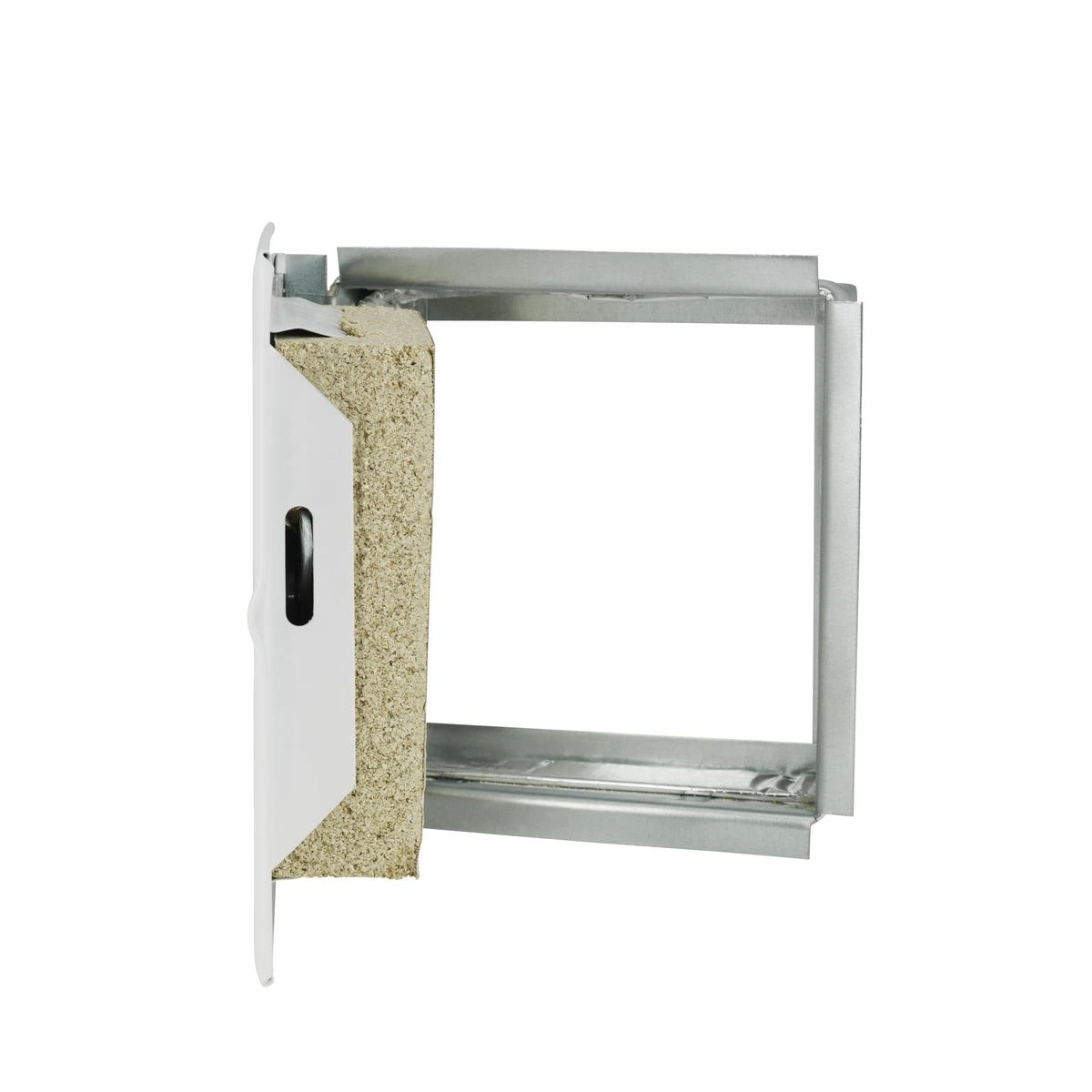

• Robust construction: Made of durable galvanized steel sheet with a 40 mm thick fire board for optimal insulation.

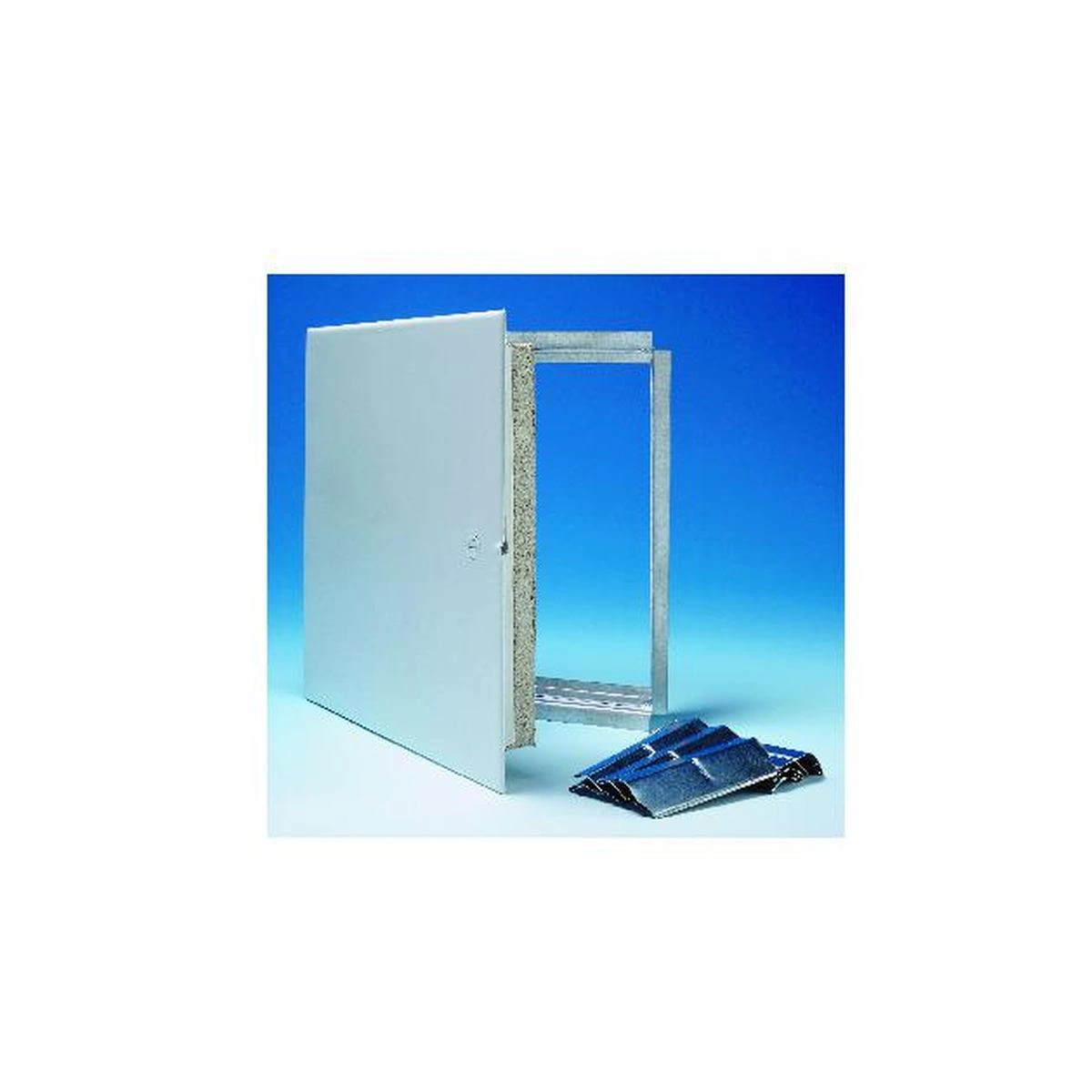

• Easy assembly: The construction consists of a frame, hatch and mounting plate. The included clamp brackets make assembly easy for board thicknesses between 25–30 mm (2x12.5 – 2x15 mm).

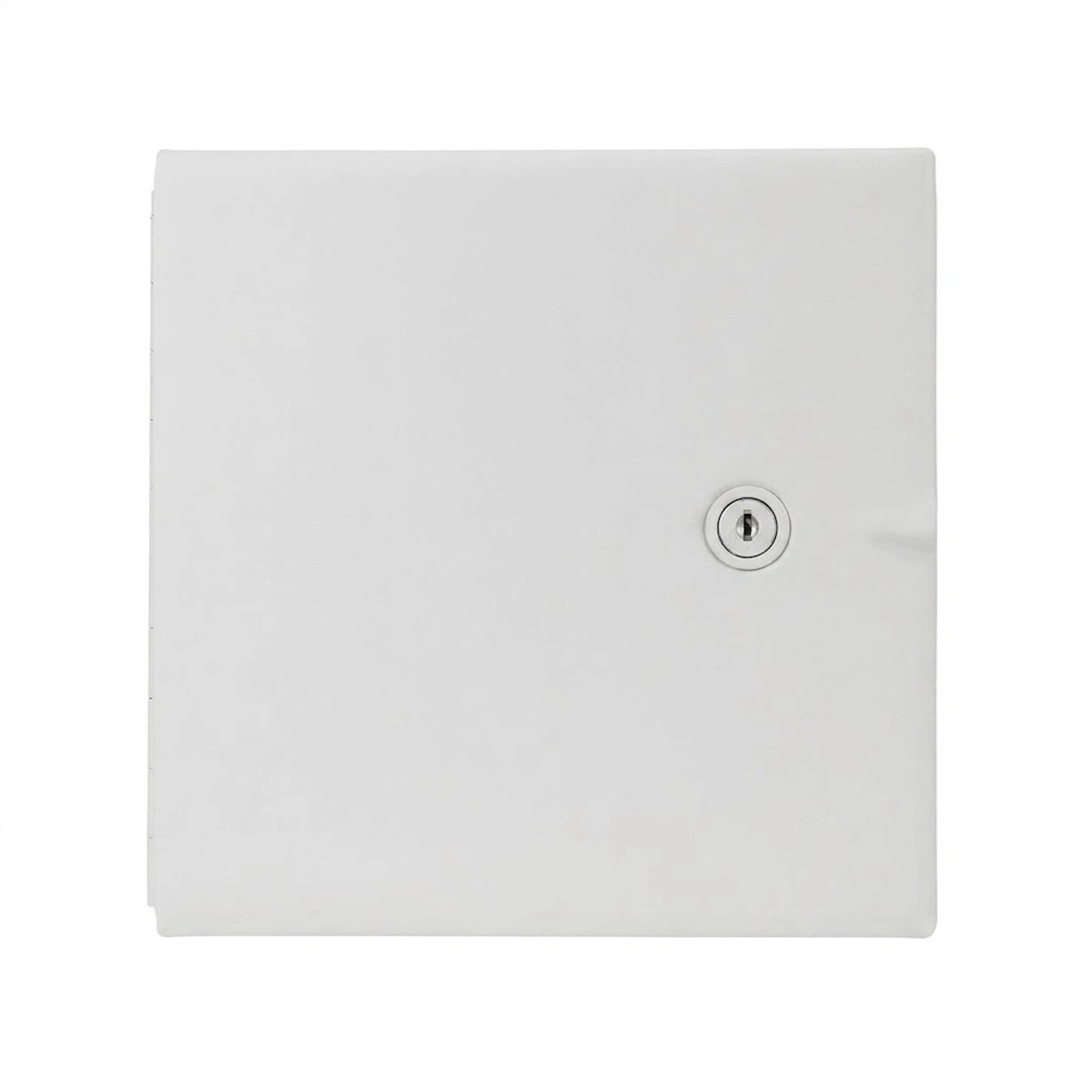

• Discreet design: The hatch is powder coated in a stylish white color (NCS S 0500-N) with a gloss of 30, which makes it blend in well with most modern environments.
• High functionality: Equipped with piano hinges for soft opening and a secure chisel lock.

Application

The hatch is intended for installation in walls or ceilings. It is an excellent choice for inspecting hidden spaces in public buildings, offices or private homes where easy access to taps, pipes or ventilation systems is required without compromising the building's fire protection.

Specifications

• Hole dimensions (HxBr): 200x200mm
• Fire resistance class: EI301 / EI302
• Material: Galvanized steel sheet
• Insulation: 40mm fire board
• Color: White (NCS S 0500-N)
• Gloss value: 30
• Weight 1.65kg
• Panel thickness: 25-30mm (2x12.5 - 2x15 mm)
• Hinges: Yes
• Chisel lock: 1pc
