Inspection Hatch EI30 300x300mm S0500 Arne Thuresson
White EI30 Inspection Hatch (300x300mm) for wall/ceiling. BBR-approved, secure lock & piano hinge. Robust quality. Buy online today!
Watch this product and we will notify you once it is back in stock.
Inspection Hatch EI30 300x300mm S0500 Arne Thuresson
Description

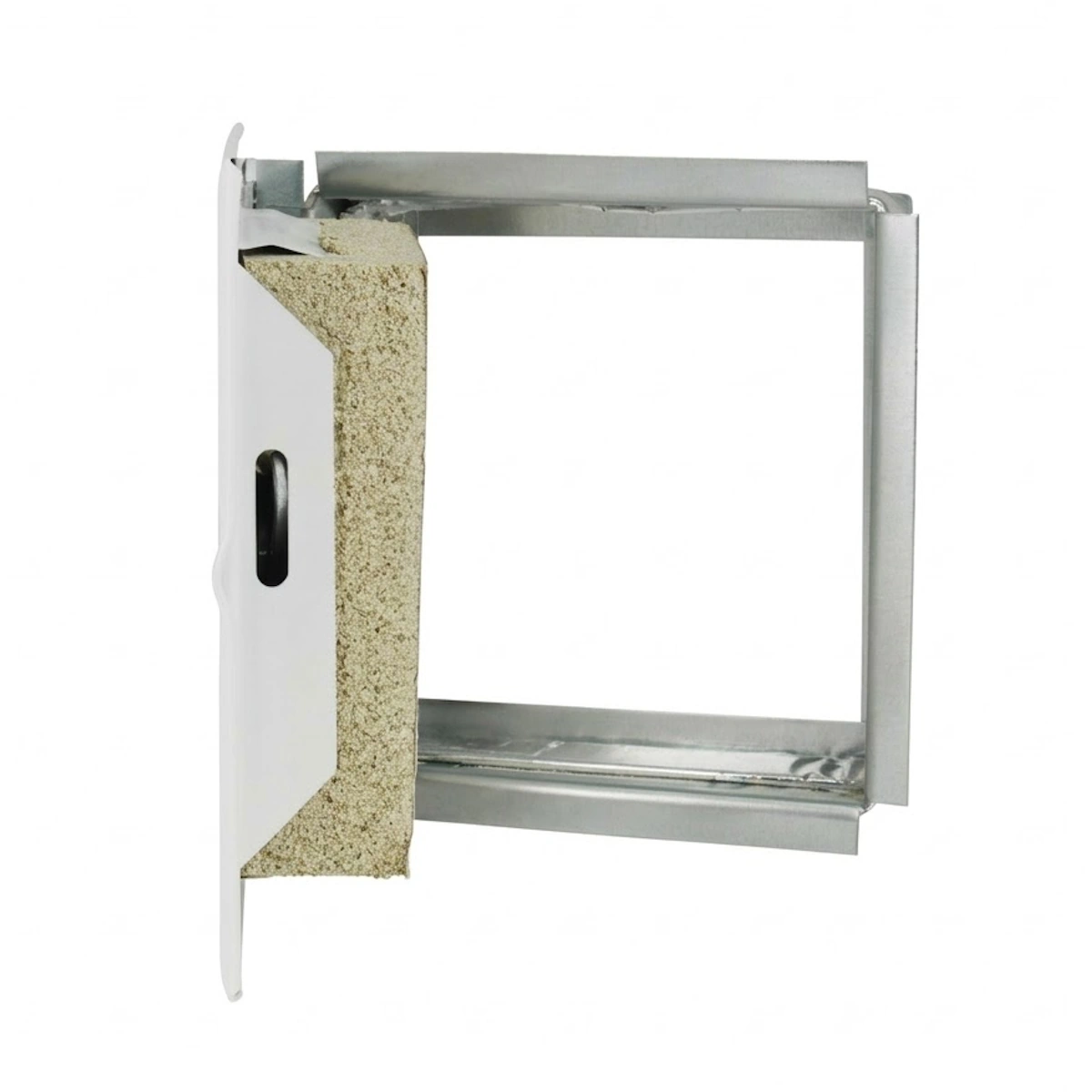

This high-quality inspection hatch is constructed from galvanized sheet steel and is specifically designed for environments where fire safety and aesthetics are prioritized. The hatch is powder-coated in a classic white color (NCS S 0500-N) with a gloss level of 30, allowing it to blend discreetly into most interior environments.
Technical Features and Fire Rating
The hatch is insulated with a 40 mm fire board and is type-approved by SiTAC and SP Fire Research according to BBR (fire technical class EI301 and EI302). It is equipped with a stable piano hinge and a screwdriver lock for secure closure. The frame is easily installed in walls or ceilings using the included clamping brackets, adapted for board thicknesses between 25–30 mm.
Applications
Perfect for inspection and maintenance access, such as valves, ventilation dampers, and pipe runs. The hatch is also available as an option to meet requirements for cold (Sa) and warm (S200) smoke gases.
Specifications
- Opening dimensions (HxW): 300 x 300 mm
- Fire rating: EI301, EI302
- Material: Galvanized sheet steel
- Surface finish: Powder-coated (NCS S 0500-N, gloss 30)
- Board thickness: 25–30 mm (2x12.5 – 2x15 mm)
- Locking: 1 pc screwdriver lock
- Hinge: Yes, piano hinge
- Type approval: 1239/95
