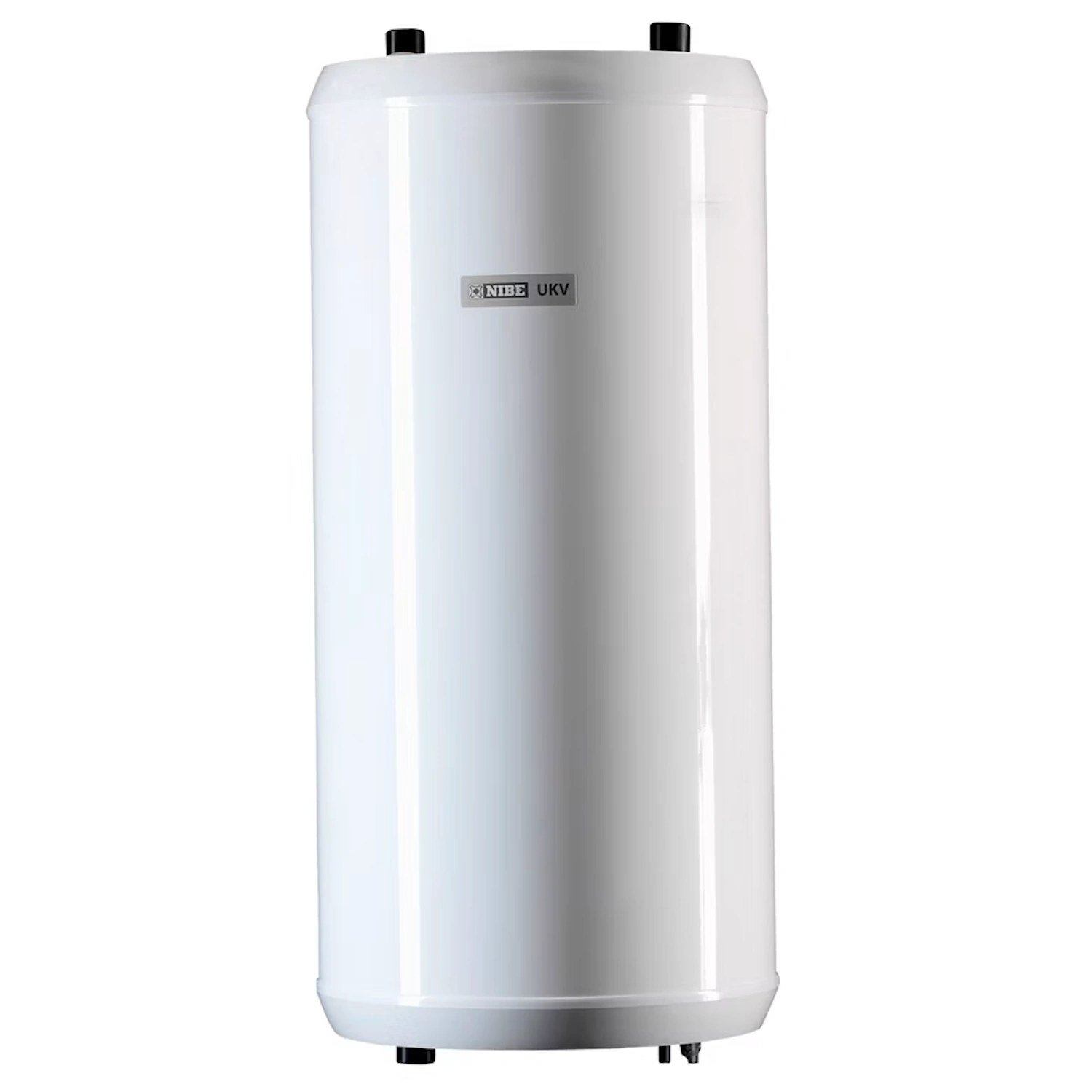

NIBE UKV 100 Expansion Vessel

Description

NIBE UKV 100 is a high-quality expansion vessel and an accumulator tank developed to be connected to heat pump systems. By adding extra volume to the heating system, a smoother, more economical and gentle operation of the heat pump is ensured over time. The vessel also effectively counteracts the temporary thermal sags and noise that can occur as a result of temperature changes and stresses in the pipelines.

NOTE! Velltra assures that all NIBE products marketed and sold by us are manufactured in Sweden and contain components of the highest quality, specially adapted for the Nordic market and its challenging climate.

Optimized operation and increased volume for heat pumps

A heating system with sufficient water volume gives the heat pump better operating conditions, fewer start and stop cycles and an extended compressor life. NIBE UKV 100 functions as a volume expander that ensures that the system has the flow required to operate at maximum efficiency.

Effective flow equalizer and temperature equalizer

In addition to increasing the total amount of water, the tank functions as a stabilizing link between the heat source and the distribution system. It balances flows and temperatures evenly, which minimizes the risk of thermal stresses in pipes and elements and creates a quiet and pleasant indoor environment free from cracking noises.

Flexible series for modern climate systems

The UKV series from NIBE offers sizes of 40, 100, 200, 300 and 500 liters to suit different types of properties and needs. For installations with active cooling, the condensation-insulated models UKV 200 or UKV 300 are recommended, while the larger model UKV 500 has removable insulation for easier transport and installation in tight spaces.

Warranty and Swedish quality

Please note that the manufacturer’s full warranty is not applicable for units bought in Sweden and installed outside Sweden.

Secure business and delivery with Velltra Velltra is a pioneer in heat pumps and has delivered thousands of units to satisfied customers throughout the EU over the years. When you shop with us, your investment is secure all the way. All our shipments are always insured for transport, which guarantees extra fast and smooth handling if transport damage should occur.

Technical specifications

• Product name: NIBE UKV 100
• Volume: 100 liters
• Height: 1010 mm
• Diameter: 450 mm
• Net weight: 31 kg
• Efficiency class hot water preparation: C
• Pressure range: 6 bar
• Temperature range: 16 °C to +95 °C
• Color: White
• Surface treatment: Powder-coated steel sheet
• Container material: Steel
• Suitable for central heating: Yes
• Suitable for heat pump: Yes
