NIBE Telescopic Overhead Cabinet 395-645mm For F-370, F-470, F11XX, F12XX, VPB, FLM

Description

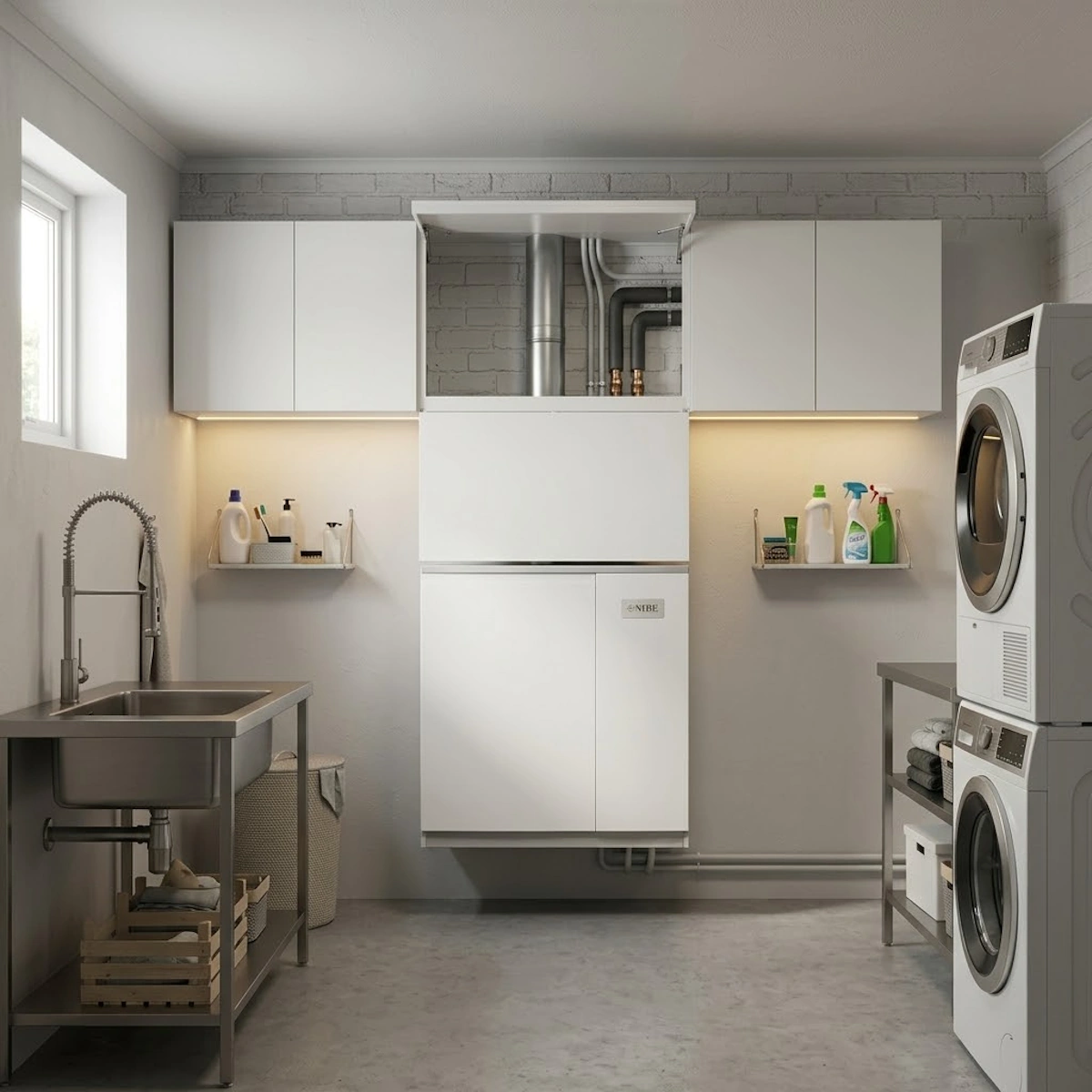

NIBE overhead cabinet in flexible telescopic model is a well-thought-out and aesthetic solution developed to hide ventilation ducts, pipework and connections above heat pumps and associated modules. With its infinitely adjustable height, a tailor-made, neat and harmonious whole is created in the laundry room, utility room or technical room regardless of the room's ceiling height.

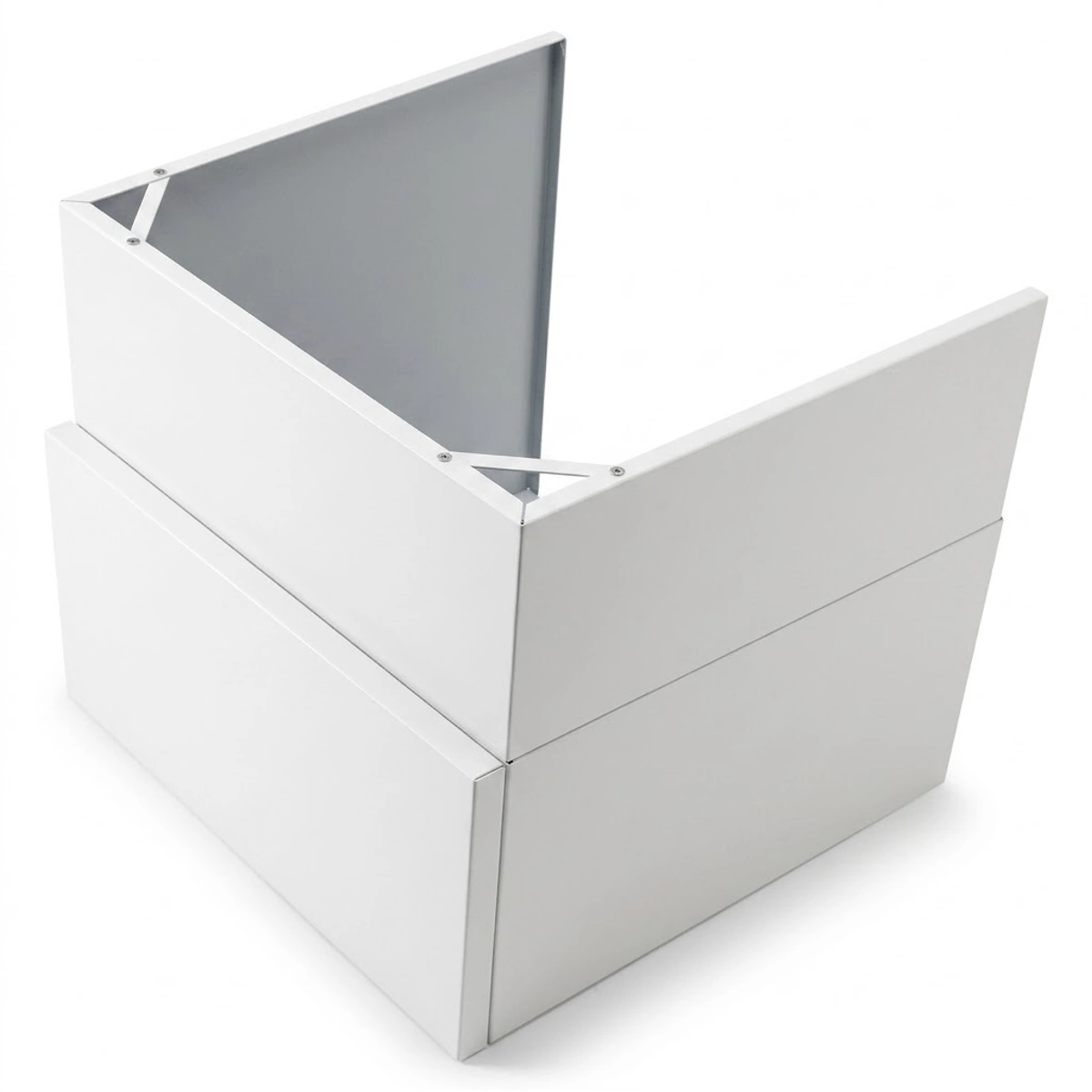

Flexible telescopic function for precise ceiling connection

The telescopic construction allows for easy adjustment between heights of 385 mm and 635 mm (or 395 to 645 mm depending on installation dimensions). This makes it easy to build the installation right up to the ceiling, eliminating open gaps where dust and dirt would otherwise collect.

Stylish design and durable materials

The upper cabinet is made of high-quality sheet steel with a white, powder-coated finish that matches the design language and color of the NIBE systems. The surface is very durable, withstands moisture and everyday wear and tear, and is easy to wipe clean when necessary.

Effective duct and pipe concealment

Exhaust air heat pumps and geothermal heating systems often have ventilation ducts, supply air pipes and expansion pipes connected to the top. By encapsulating these pipework in a custom-made cabinet, the installation is protected while the room is given a clean and professional finish.

Wide system compatibility and good access

The cabinet's standardized external dimensions of 600 mm in width and 615 mm in depth provide a stable and uniform installation on top of NIBE units. The design facilitates future inspections and service work around the pipe connections on the top.

Technical specifications

• Compatibility: NIBE F370, NIBE F470, NIBE F11XX series, NIBE F12XX series and modules such as NIBE VPB and NIBE FLM
• Dimensions: Depth 615 mm, width 600 mm, height 385–635 mm (telescopically adjustable up to 645 mm)
• Design: Telescopic model for flexible height adjustment
• Material: Durable sheet steel
• Surface treatment: White powder coating
• Colour: White
• Area of use: Covering and encapsulating ventilation ducts and pipe connections
