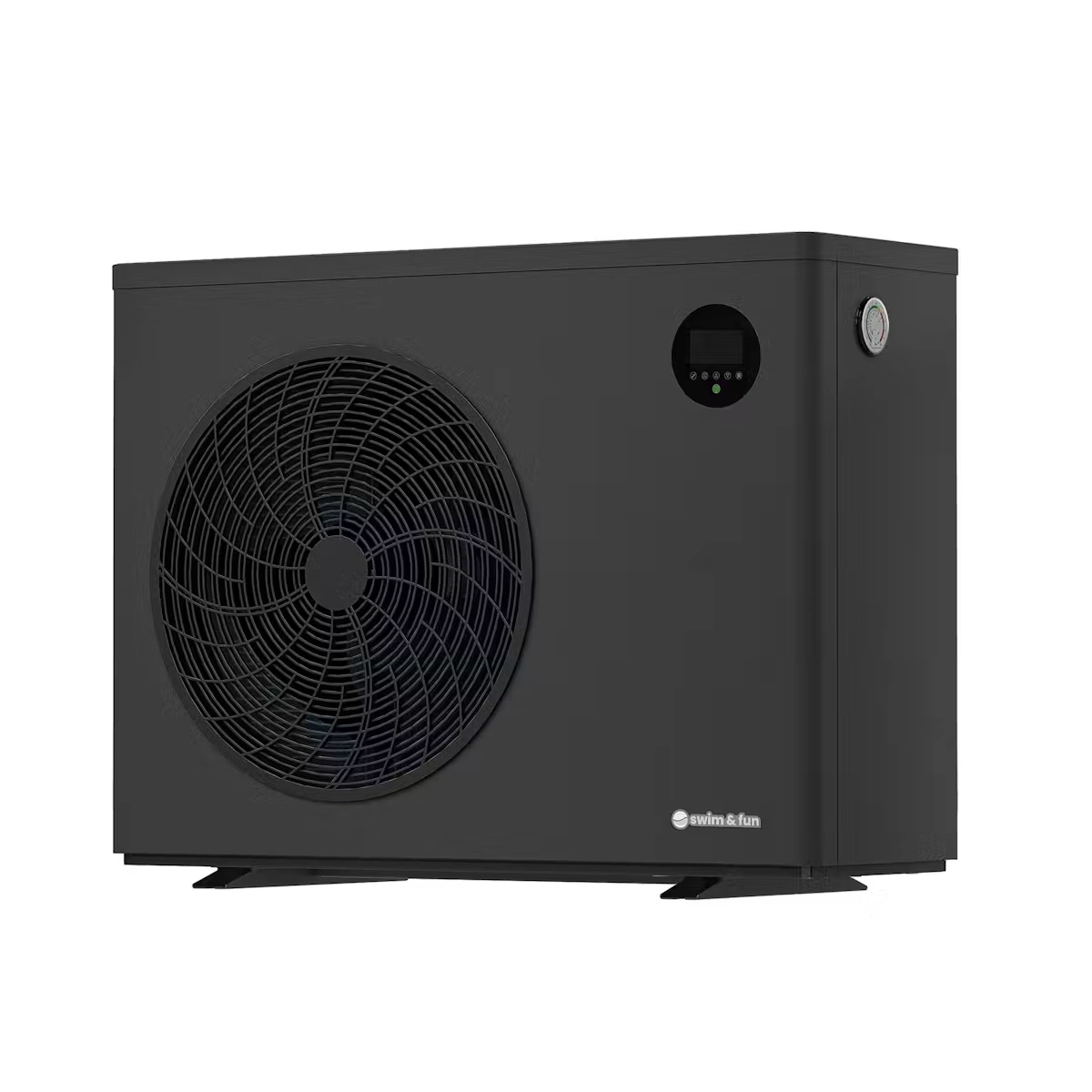

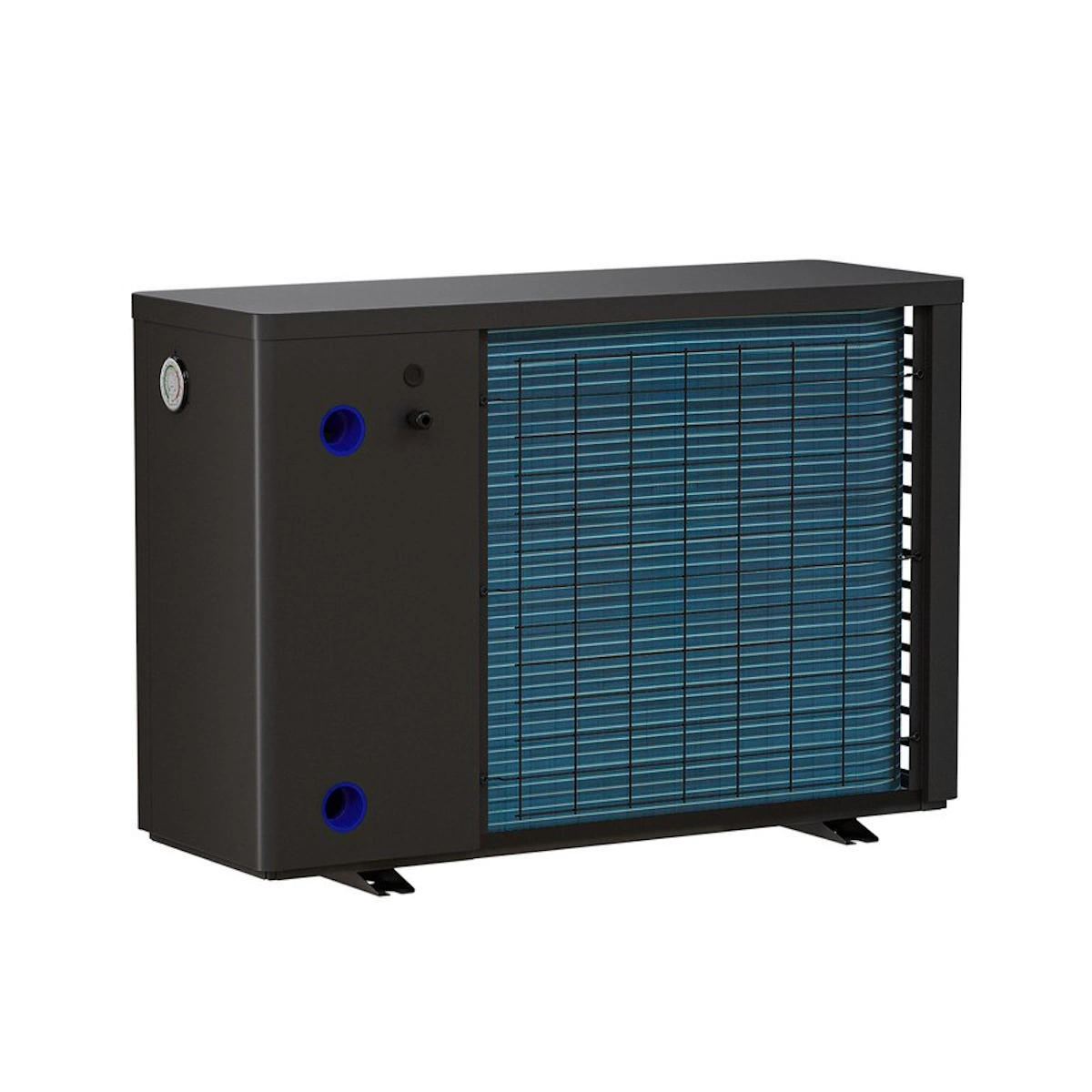

Swim & Fun Fjord Inverter Heat Pump 9kW With Wi-Fi

Description

A high-performance pool heat pump extends the swimming season and ensures a comfortable water temperature regardless of the weather. With advanced inverter technology, the Swim & Fun Fjord 9kW offers precise temperature control for both heating and cooling. This model is an ideal choice for pool volumes up to 35,000 liters (maximum capacity up to 45,000 liters under optimal conditions) that require an energy-efficient, quiet and flexible solution. When registering the product with the manufacturer via their registration form, an extended warranty of 3 years for components and 7 years for the compressor is obtained.

Energy-efficient inverter technology and high COP value

Unlike traditional on/off pumps that operate at full power and then switch off, an inverter heat pump continuously adjusts the speed of the compressor and fan. This minimizes energy consumption, reduces wear on components and keeps the water temperature at an even level.

The model stands out with a COP value of up to 16.0 under optimal conditions (air 28°C / water 28°C). This means that 1 kWh of electricity consumed can be converted into up to 16 kWh of heat energy for the pool water. Up to 80 percent of the energy is taken directly from the surrounding air, making operation both cost-effective and environmentally friendly.

Flexible operating modes for optimal comfort and low noise level

The heat pump is equipped with three different operating modes to easily adapt to current needs and desired energy consumption:

• Powerful mode: Full power for fast and efficient heating when the pool is to be put into use.
• Smart mode: Automatic and dynamic adjustment between medium and full power for the optimal balance between comfort and performance.
• Silent mode: Operation at low or medium power for very quiet operation (35–44.3 dB at 1 meter distance) that maintains a stable temperature without disturbing the peace by the pool.

Extended swimming season and smart remote control

With a wide operating range that extends down to an outdoor temperature of -12°C, the swimming season can be significantly extended from early spring to late autumn. The integrated automatic defrost function guarantees stable operation even in changing weather conditions.

Thanks to built-in Smart Wi-Fi and an accompanying app, you can monitor and adjust the pool temperature directly from your mobile phone, no matter where you are. The app also enables convenient remote diagnostics, which facilitates technical support and troubleshooting if necessary.

Robust Scandinavian design and important accessories

The heat pump's exterior combines a black powder-coated steel casing with durable ABS panels for optimal protection against the elements. Inside is a high-quality titanium heat exchanger that is resistant to corrosion from both chlorine and salt water.

To maximize the heating effect and minimize energy losses, it is recommended that the pool is kept covered with a thermal pool cover when not in use, and that the unit is placed in a wind-protected location with good air circulation. The heat pump is delivered complete with a protective winter cover, condensation drainage kit and vibration-damping mats that further reduce the noise level during operation.

Technical specifications

• Compressor type: Inverter
• Capacity: 9.0 kW
• Recommended max. pool volume: 35,000 liters
• Maximum pool volume: 45,000 liters
• Hose connection (inlet and outlet): 32 mm, 38 mm, 50 mm
• Maximum COP value: 16.0
• Minimum operating temperature (air): -12°C
• Temperature setting range: 8 to 40°C
• Power supply: 220–240V / 50 Hz / 1 PH
• Nominal current / Max current: 8 A / 12 A
• Recommended water flow: 2,500 liters/hour
• Refrigerant type: R290 (650 g) / CO2 equivalent: 1.95 kg
• Protection class: IPX4
• Sound level (at 10 meters): 24.3 dB(A)
• Net dimensions (L x W x H): 983 x 375 x 686 mm
• Net weight: 51 kg

Please note: This product requires a fixed electrical installation and must only be installed by a licensed electrician.
