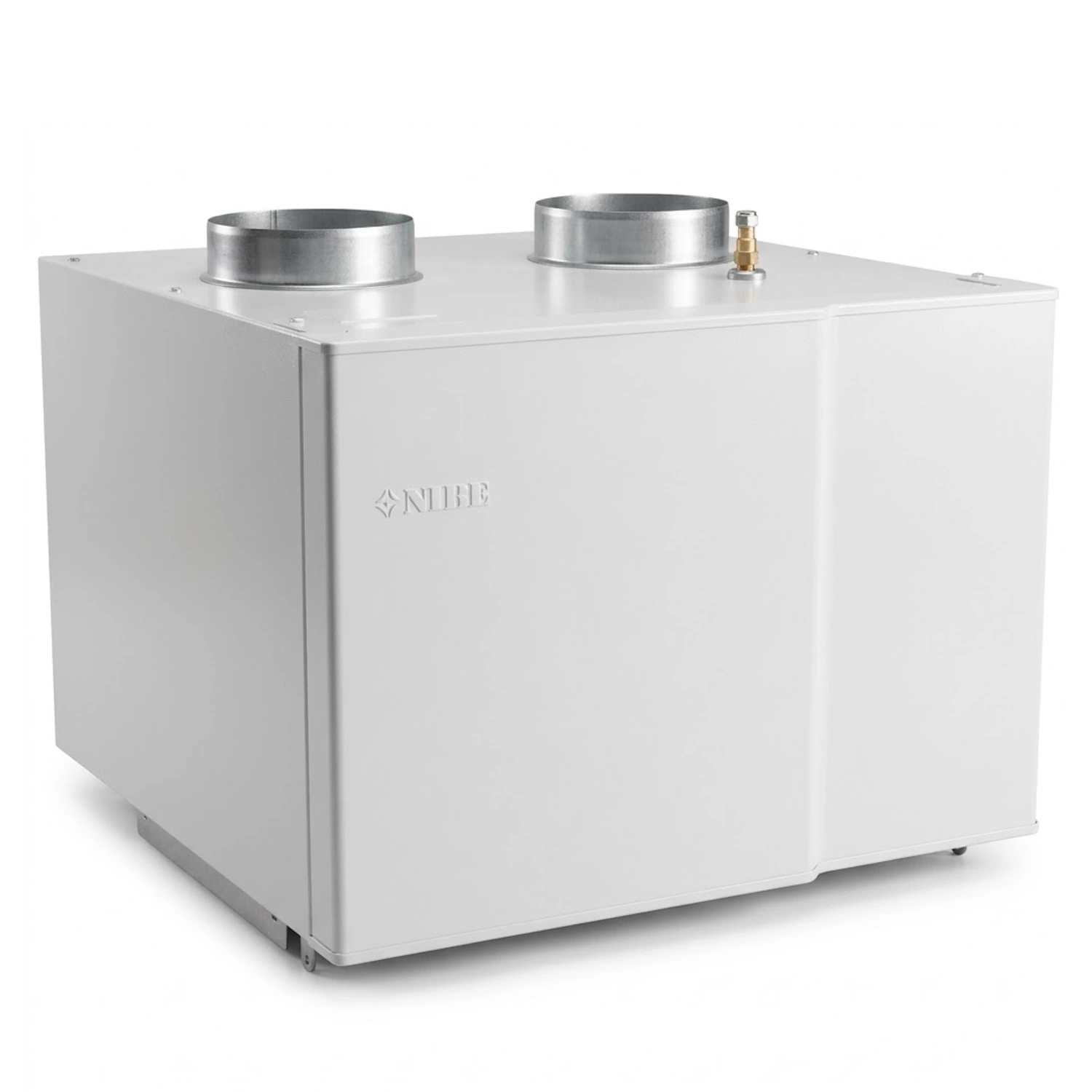

NIBE F135 Exhaust Air Module

Description

NIBE F135 is an advanced and energy-efficient exhaust air module specially developed to dock to NIBE air/water heat pumps and associated indoor modules (VVM) or control modules (SMO). By utilizing the valuable heat energy that is otherwise lost via the property's ventilation air, NIBE F135 actively contributes to heating both the home and the domestic hot water. This happens at the same time as the building is continuously ventilated and ensures a healthy indoor climate.

NOTE! Velltra assures that all NIBE products marketed and sold by us are manufactured in Sweden and contain components of the highest quality, specially adapted for the Nordic market and its challenging climate.

Integrated recovery and increased seasonal heating factor

By combining ventilation and heat recovery, NIBE F135 optimizes the operation of the entire heating system. The exhaust air module increases the system's seasonal heating factor (SCOP), which drastically reduces energy use over the year. In installations where cooling is used, the unit can also produce hot water and comfort cooling in parallel. The design is designed for low noise levels and high ventilation capacity, which provides quiet and stable operation in the home.

Smart control and intuitive climate adaptation

NIBE F135 is smoothly controlled via the indoor module or control module's intelligent interface. The efficient control system automatically regulates the indoor climate according to the home's current needs to maximize comfort. The smart technology provides full control over energy consumption, which facilitates monitoring in everyday life and contributes to more sustainable energy use.

Flexible installation and long-term security

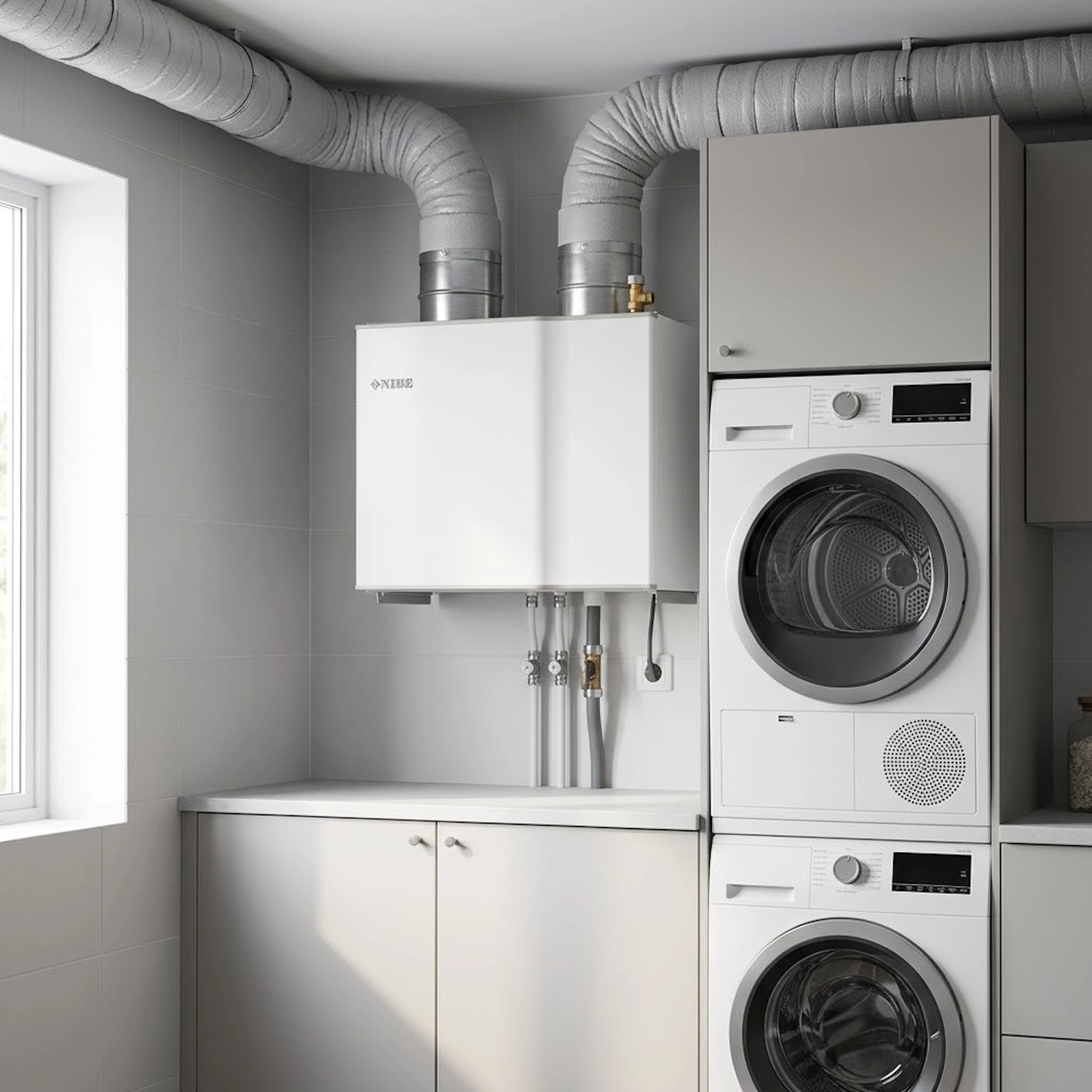

The module is designed for flexible indoor placement and has a stylish design in powder-coated steel that blends well with technical spaces or laundry rooms. Please note that the manufacturer’s full warranty is not applicable for units bought in Sweden and installed outside Sweden.

Secure business and delivery with Velltra Velltra is a pioneer in heat pumps and has delivered thousands of units to satisfied customers throughout the EU over the years. When you shop with us, your investment is safe all the way. All our shipments are always insured for transport, which guarantees extra fast and smooth handling if transport damage should occur.

Product specifications

• Width: 605 mm
• Depth: 600 mm
• Height: 490 mm
• Rated voltage: 230 V ~ 50 Hz
• Maximum operating current: 3.5 A
• Minimum fuse: 6 A
• Protection class: IP 21
• Working pressure: 10 bar
• Heating power (EN 14511, A20(12)W35, 180 m³/h): 1.42 kW (COP 3.87)
• Heating power (EN 14511, A20(12)W45, 180 m³/h): 1.34 kW (COP 3.13)
• Heating power (EN 14511, A20(12)W55, 180 m³/h): 1.27 kW (COP 2.65)
• Emitted compressor power (EN 16147): 1.32 kW
• Circulation pump power: 5 – 20 W
• Fan power: 20 – 75 W
• Efficiency class room heating (Average climate): A+
• Function: Air/water, ventilation recovery
• Version: For domestic hot water
• Location: Indoor location
• Color: White
• Surface treatment: Fire-lacquered
• Material: Steel / multi-material
