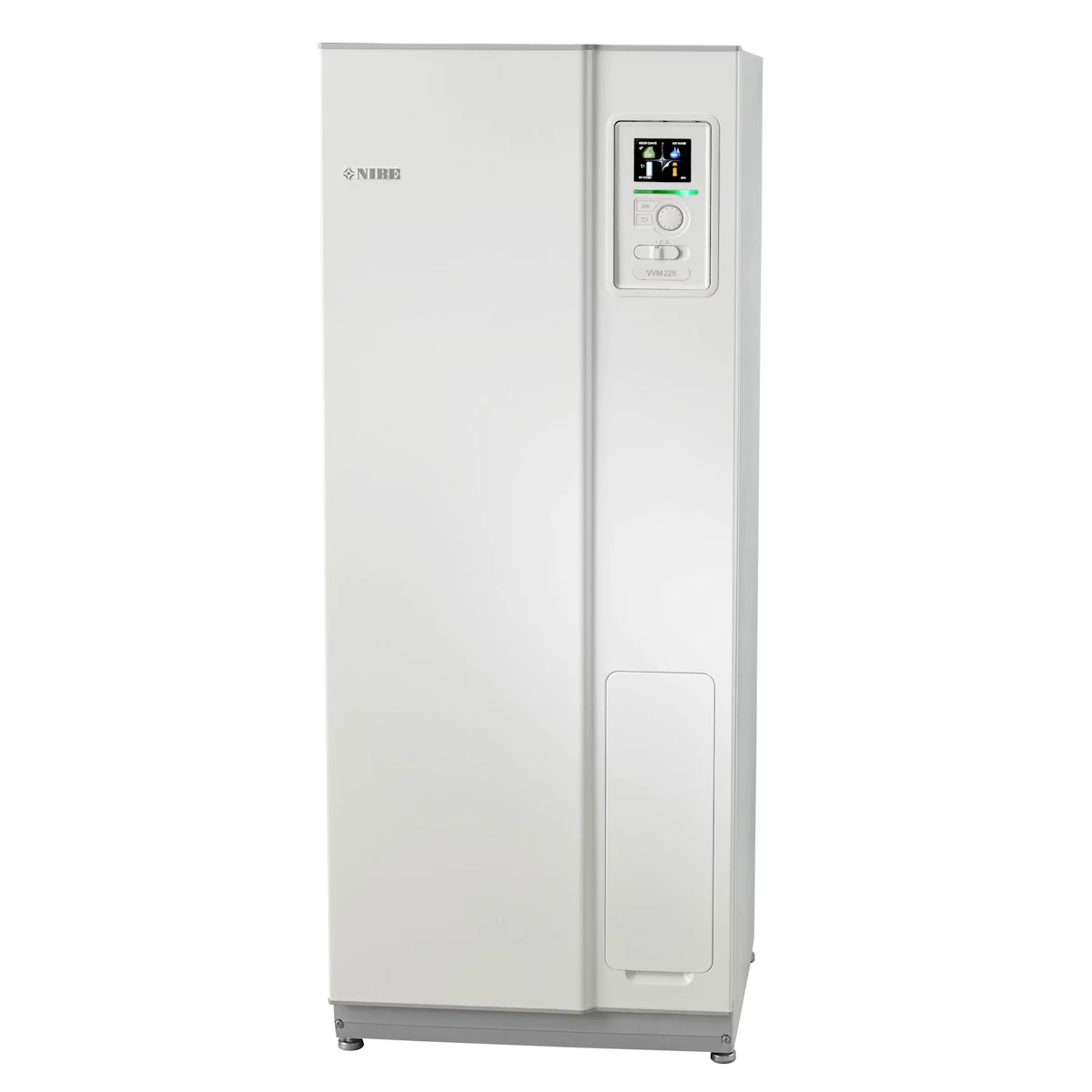

NIBE VVM 225 Cu Electric Boiler/Indoor Module For Air/Water Heat Pump
NIBE VVM 225 is a complete indoor module for air and water heat pumps with integrated water heater and smart control via app. [Energiklass C]
Watch this product and we will notify you once it is back in stock.
NIBE VVM 225 Cu Electric Boiler/Indoor Module For Air/Water Heat Pump
Description
NIBE VVM 225 is designed to be combined with a NIBE air/water heat pump to create a high-performance and flexible climate system for the home. The indoor module has a smart and user-friendly control system that offers efficient heating and reliable hot water preparation. VVM 225 is delivered complete with the necessary components for smooth installation, including hot water tank, electric booster, self-regulating circulation pump, filling valve, pressure gauge, safety valve and expansion vessel. Please note that the valve coupler with safety valve and filling valve is not included in the enamel model.
NOTE! Velltra assures that all NIBE products marketed and sold by us are manufactured in Sweden and contain components of the highest quality, especially adapted for the Nordic market and its challenging climate.
Smart and energy-efficient control
Thanks to modern and intelligent technology, full control over the home's energy consumption is provided. The advanced control system automatically adapts the indoor climate to current needs to achieve optimal comfort while keeping energy consumption low.
Complete and flexible system solution
By combining the indoor module with a suitable NIBE air/water heat pump, a complete heating system is obtained. The system handles both radiators, underfloor heating and domestic hot water with high operational reliability all year round.
Connected comfort with myUplink
As an integrated part of the smart home, the climate system can be easily monitored and controlled remotely via myUplink. This provides easy access to the system's status, temperature settings and operating data directly on your mobile phone.
Security and warranty
Please note that the manufacturer’s full warranty is not applicable for units bought in Sweden and installed outside Sweden.
Secure business and delivery with Velltra
Velltra is a pioneer in heat pumps and has delivered thousands of units to satisfied customers throughout the EU over the years. When you shop with us, your investment is safe all the way. All our shipments are always insured for transport, which guarantees extra fast and smooth handling if transport damage should occur.
Technical specifications (NIBE VVM 225 Cu)
- Height: 1525 mm
- Width: 600 mm
- Depth: 600 mm
- Net weight: 130 kg
- Rated voltage: 400 V (3-phase) or 230 V (1-phase)
- Maximum additional power: 9 kW (400 V) / 7 kW (230 V)
- Efficiency class hot water preparation: C
- Declared tap profile: XL
- Volume hot water heater: 180 liters
- Capacity hot water 40 °C: 212 liters
