NIBE ECS 41 Shunt Group

NIBE ECS 41 shunt group for managing an extra heating system with underfloor heating from 80 to 250 m², suited for NIBE F-series models.

NIBE ECS 41 Shunt Group

Watch this product and we will notify you once it is back in stock.

The product is now watched
We will notify you once the product is back in stock again.

NIBE ECS 41 Shunt Group

NIBE ECS 41 shunt group for managing an extra heating system with underfloor heating from 80 to 250 m², suited for NIBE F-series models.

Description

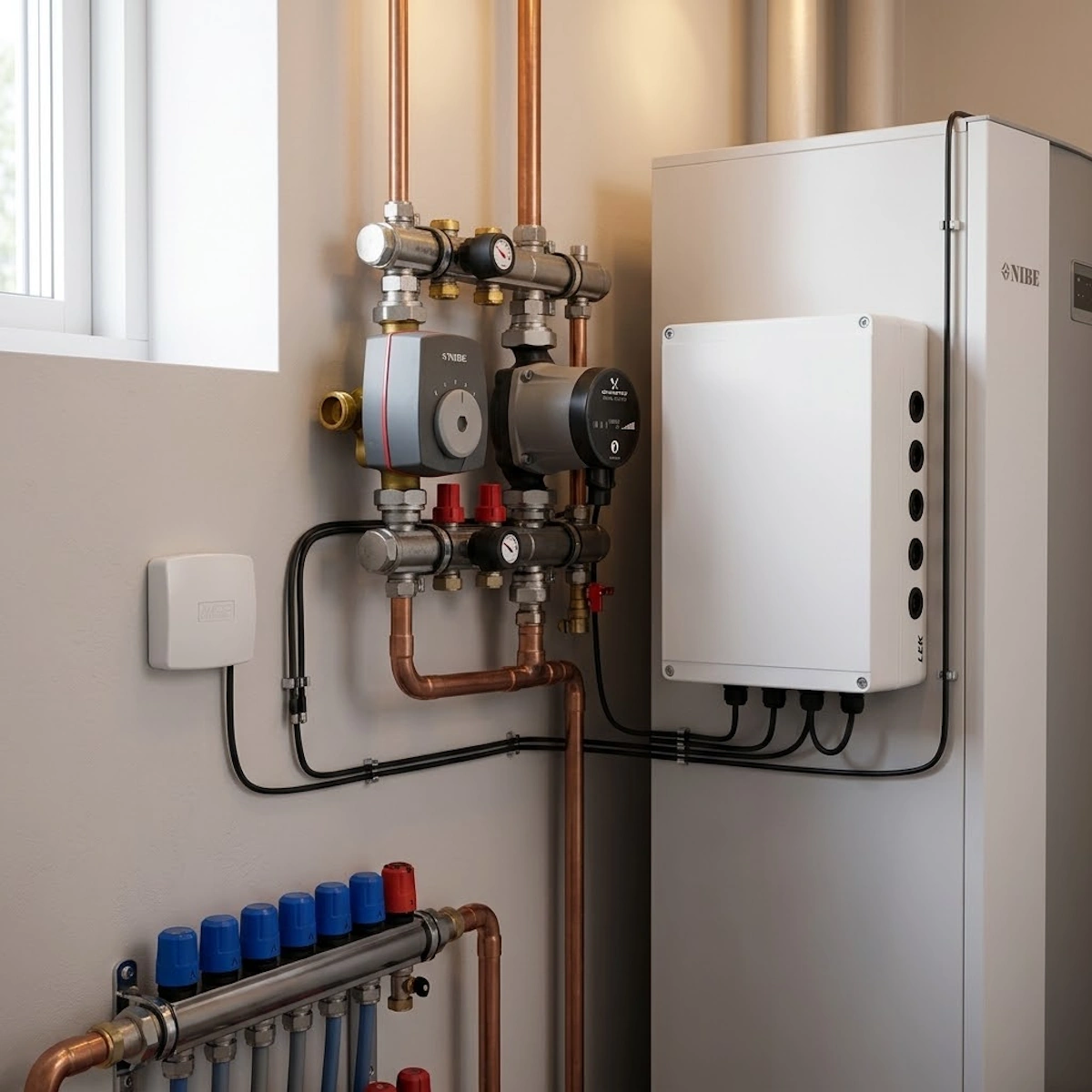

NIBE ECS 41 is a shunt group developed to manage and control an additional climate system in properties where different parts require varying supply temperatures. The accessory is specially designed for installations where a heat pump is combined with an underfloor heating system of approximately 80 to 250 m² in parallel with radiators. By optimizing and distributing the heat, the shunt group creates even indoor comfort and balanced operation of the heating system.

Complete delivery and reliable construction

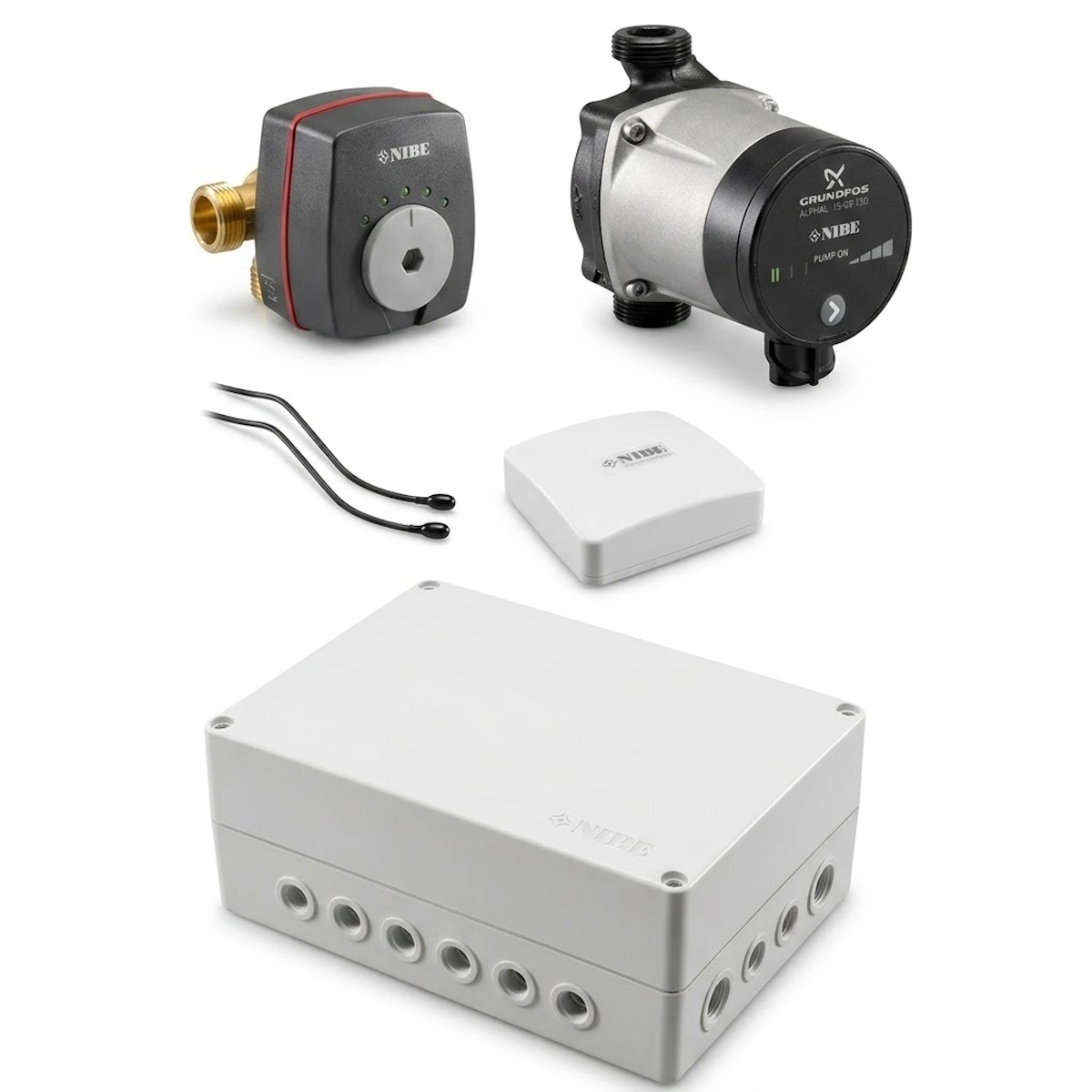

The shunt group contains a control unit, circulation pump, shunt valve and the necessary sensors for stable integration with NIBE heat pumps. The unit is built from high-quality components in metal and durable plastic for long-term function and reliable heat regulation.

Key features and benefits

  • Dimensioned for larger underfloor heating systems between approximately 80 and 250 m²
  • Enables two or more separate climate systems with individual temperature requirements
  • Facilitates energy-efficient control in combination with compatible heat pumps
  • Made from robust and proven materials for reliable performance

Technical specifications

  • Compatibility: NIBE F 1145, F 1245, F 370, F 470, F 750
  • Recommended area: Underfloor heating from 80 up to approximately 250 m²
  • Type of accessory: Control and shunt group
  • Material: Metal and plastic
  • Color: Grey and black
