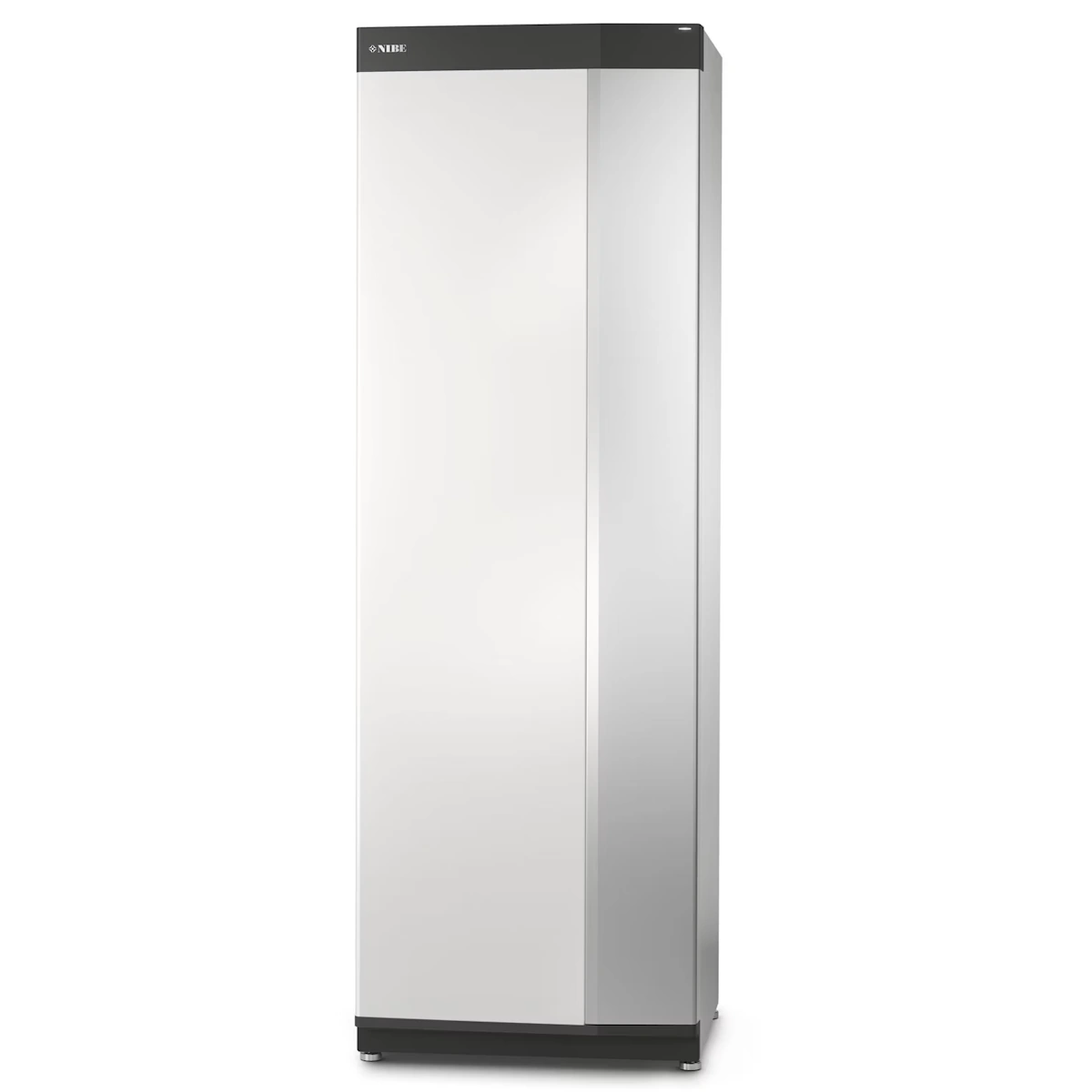

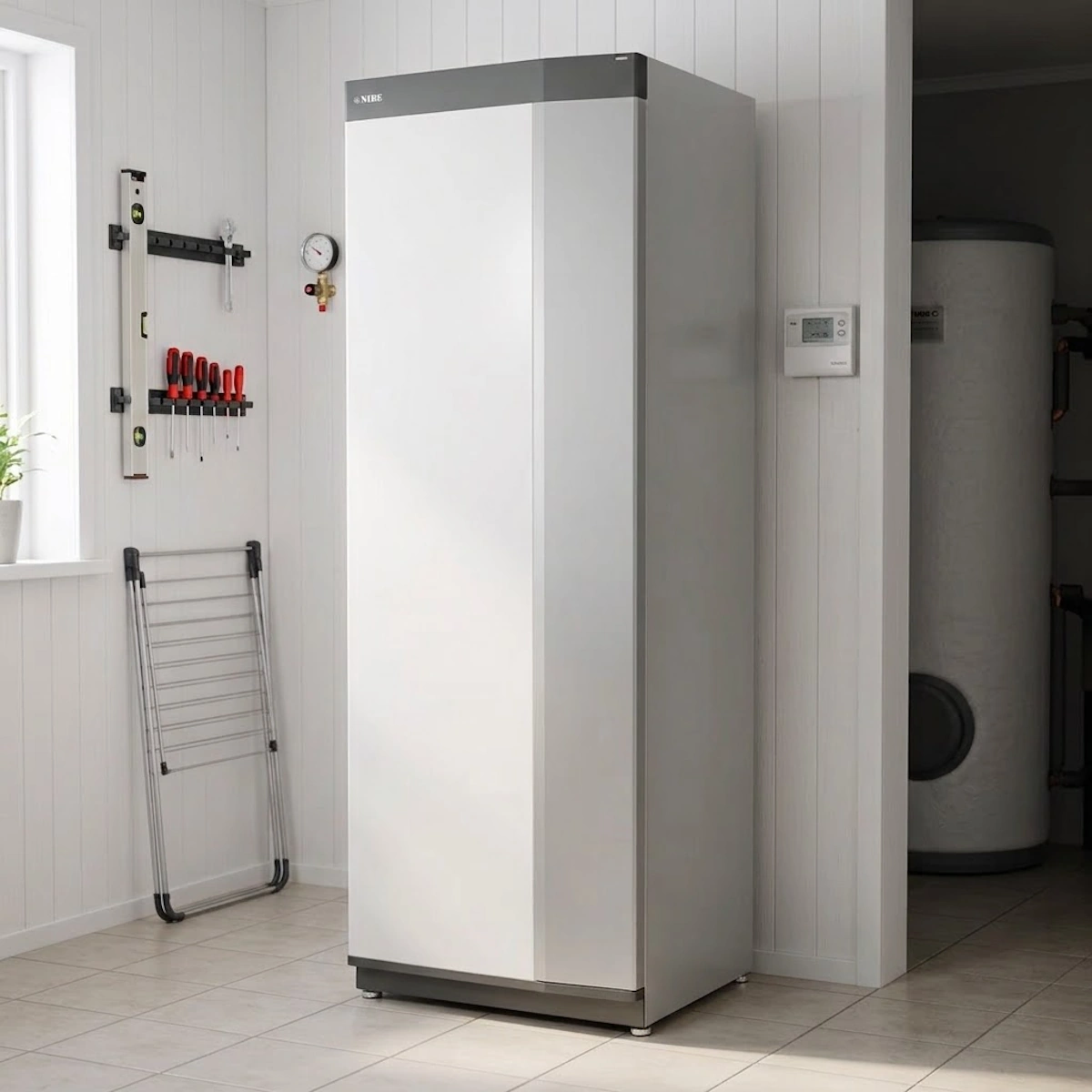

NIBE VVM S320 R Electric Boiler/Indoor Module For Air/Water Heat Pump

Description

NIBE VVM S320 R is a modern and highly efficient all-in-one indoor module and electric boiler, developed to be connected to NIBE air-to-water heat pumps to form a complete climate system. This R model is equipped with an integrated stainless steel hot water heater, which provides excellent corrosion protection and a long service life even in demanding water conditions. The system is delivered ready for installation with a built-in electric heater, self-regulating circulation pump, filling valve, pressure gauge, safety valve and expansion vessel.

NOTE! Velltra assures that all NIBE products marketed and sold by us are manufactured in Sweden and contain components of the highest quality, especially adapted for the Nordic market and its challenging climate.

High-capacity stainless steel hot water heater

The built-in 178-liter hot water heater is made of stainless steel and delivers a hot water capacity of up to 240 liters at 40 degrees. Stainless steel is an optimal material choice for areas with specific water qualities and offers reliable and hygienic hot water production with minimal maintenance over time.

Intelligent connectivity with myUplink and touch display

With built-in Wi-Fi connection, the NIBE VVM S320 R becomes a natural part of the connected home. The intuitive touchscreen colour display provides easy local control, while the myUplink mobile app enables complete remote monitoring and control. The system supports voice control and wireless smart home accessories that automatically optimise the indoor climate based on temperature, humidity and carbon dioxide levels in different rooms.

Smart Price Adaption and automatic weather control

With the Smart Price Adaption function, the heat pump adapts its operation to current electricity prices on the Nordic electricity exchange NordpoolSpot for hourly or quarter price contracts. This reduces operating costs by producing heat when electricity is most affordable. The integrated weather forecast control also receives meteorological data in advance and proactively adjusts heat production in anticipation of weather changes.

Flexibility, cooling and extended functions

The system's functionality can be easily supplemented with NIBE's range of accessories for ventilation, solar heating and active cooling. During the summer months, the system can switch over to distributing cooling air via fan coils, creating a comfortable indoor climate all year round.

Warranty and quality assurance

Please note that the manufacturer’s full warranty is not applicable for units bought in Sweden and installed outside Sweden.

Secure business and delivery with Velltra Velltra is a pioneer in heat pumps and has delivered thousands of units to satisfied customers throughout the EU over the years. When you shop with us, your investment is safe all the way. All our shipments are always insured for transport, which guarantees extra fast and smooth handling if transport damage should occur.

Technical specifications

• Model: NIBE VVM S320 R (Stainless steel version)
• Height: 1800 mm
• Width: 600 mm
• Depth: 615 mm
• Water heater material: Stainless steel
• Water heater volume: 178 liters
• Hot water capacity (40 °C): 240 liters
• Display: Color touch screen
• Network connection: Integrated WiFi for myUplink
• Compatibility: NIBE air-to-water heat pumps in the S-series and F-series
