NIBE KB 25 Filling Kit

Description

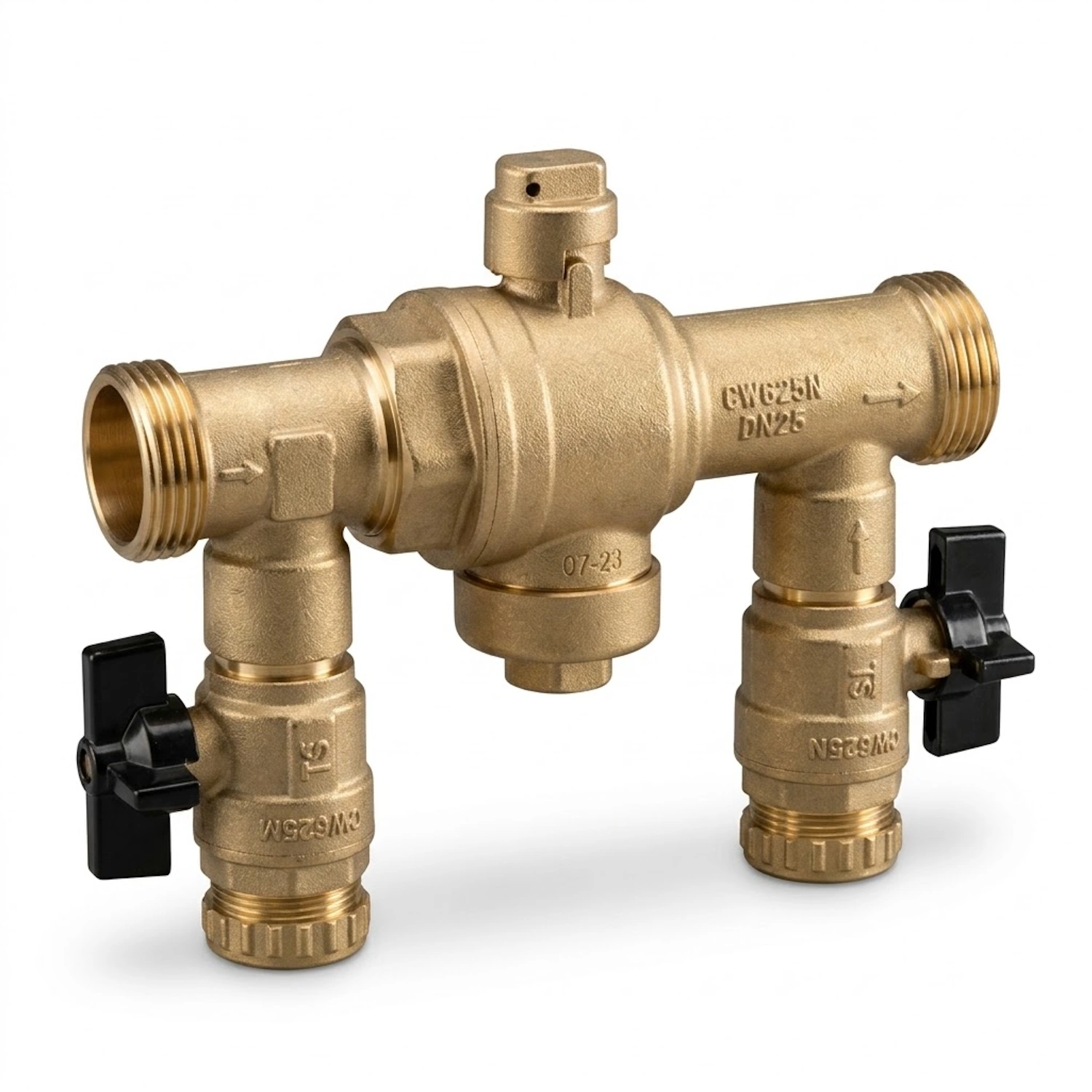

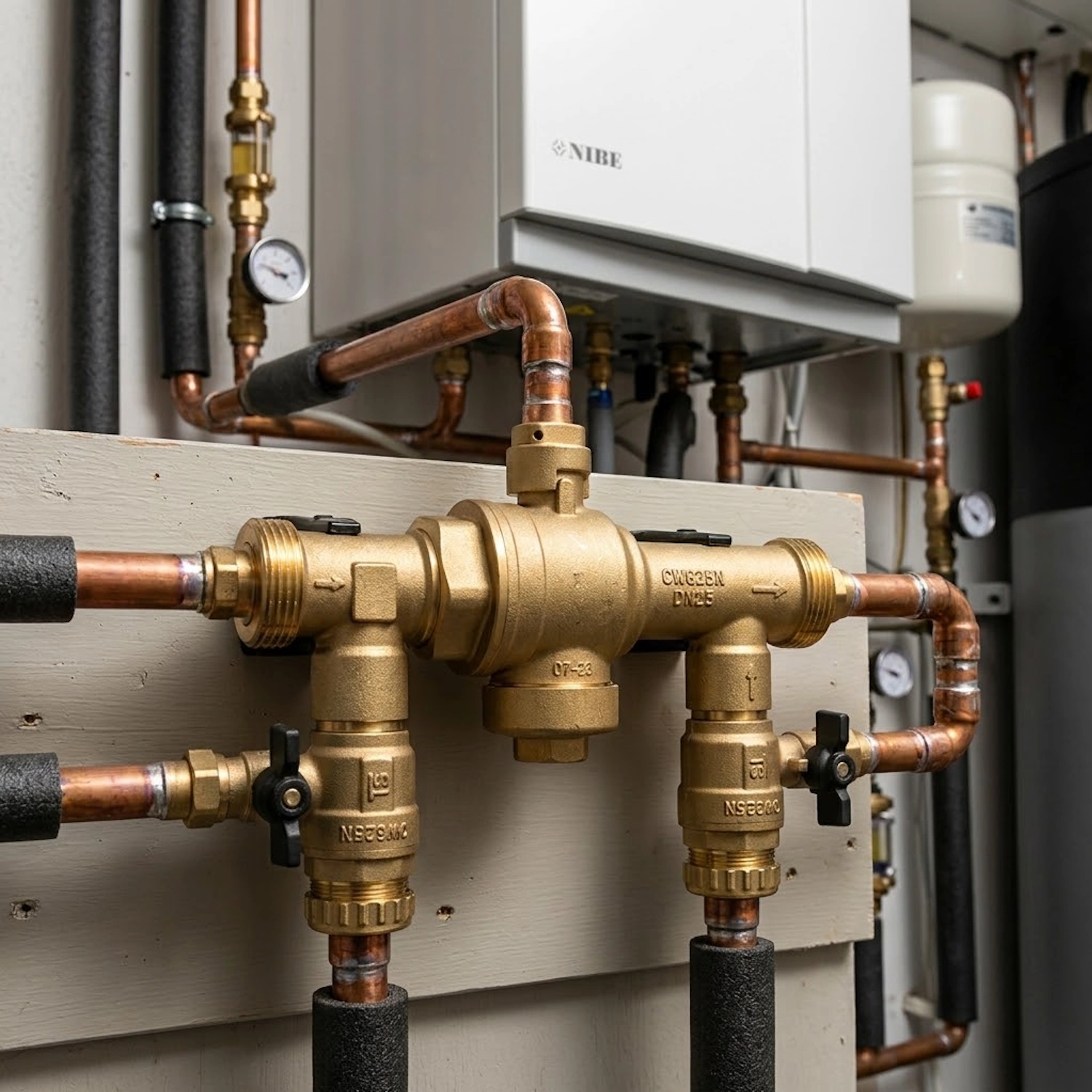

NIBE KB 25 is a complete filling coupler and a functional filling kit adapted for filling brine and brine liquid for ground source heat pumps and geothermal heating systems with an output of up to 12 kW. This filling valve facilitates installation, commissioning and service by ensuring a smooth flow of liquid to the collector hose while protecting the system against contamination.

Robust construction and reliable protection

The unit is equipped with an integrated dirt filter that effectively prevents particles from reaching the circulation pump and heat exchanger. The included molded EPS insulation minimizes energy losses and prevents condensation around the valve housing, which contributes to long-term reliable operation. The valve body is made of durable brass and designed to withstand operating pressures up to 10 bar, making it a safe and durable component in heat pump installations.

Key features and benefits

• Intended for filling brine and brine liquid in collector loops
• Adapted for geothermal and ground source heat pumps up to 12 kW
• Integrated dirt filter for protection against particles and contaminants
• Delivered with adapted EPS insulation for condensation protection
• Robust and corrosion-resistant brass construction

Technical specifications

• Product: NIBE KB 25 filling kit
• Connection dimension: R25
• Build-in length: 233 mm
• Maximum working pressure: 10 bar
• Capacity: Heat pumps up to 12 kW
• Valve body material: Brass
• Insulation: Moulded EPS
• Colour: Grey insulation and brass
• Function: Filling and venting of brine systems
