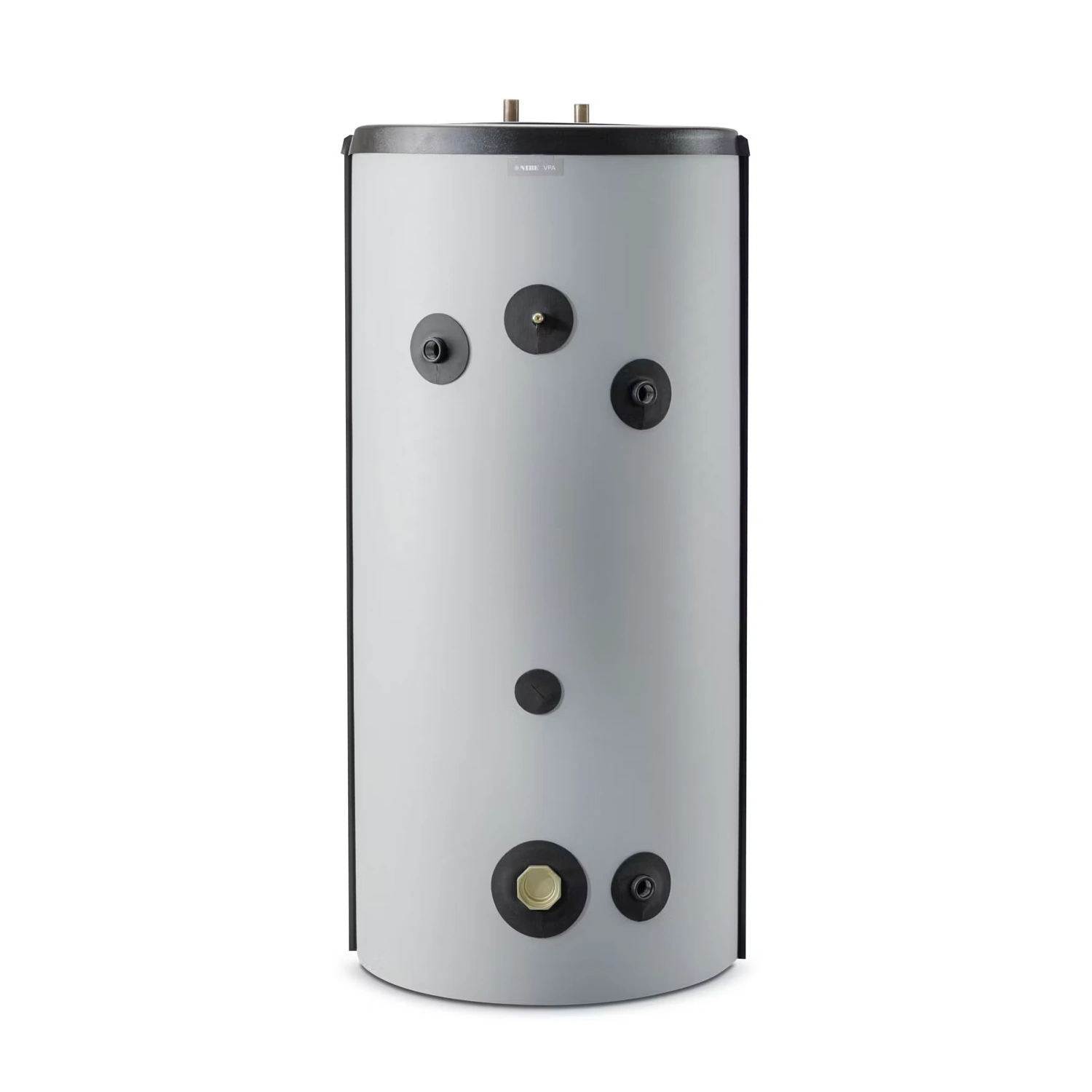

NIBE VPA 200/70 Double-Jacketed Water Heater

Description

NIBE VPA 200/70 is a double-jacketed water heater and storage tank with a large water reservoir, designed for connection to a heat pump or other external heat sources. The internal tank is copper-lined for proven and long-term corrosion protection. The water heater handles operating temperatures up to 90 °C and is equipped with connections for immersion heater and sensor tube for precise temperature control. The well-thought-out insulation minimizes heat loss and is also removable, which facilitates transport and placement in the property.

NOTE! Velltra assures that all NIBE products marketed and sold by us are manufactured in Sweden and contain components of the highest quality, especially adapted for the Nordic market and its challenging climate.

Efficient energy storage and hot water comfort

With a design based on double-jacketed technology, the NIBE VPA 200/70 functions both as a reliable hot water heater and as an integrated part of the property's heating system. The large jacket surface provides fast and even heat transfer from the heat pump to the tap water, which ensures good access to hot water even during high consumption. For systems with larger needs, there is also the option of series connection.

Flexible docking and immersion heater connection

The tank is equipped with a dedicated outlet for an immersion heater and a dip tube for temperature control via the heat pump's control center. This provides flexible operation where additional heat can be connected during extreme cold snaps or when extra peak heat is needed. The solution is ideal for both ground source heat pumps and air-to-water heat pumps and pellet or wood-fired systems.

Environmentally friendly and demountable insulation

To reduce operating costs, NIBE VPA is equipped with highly efficient and environmentally friendly insulation that keeps downtime losses at a very low level. The insulation can be easily removed when entering through narrow doorways or basement stairs, which makes installation work considerably easier.

Quality and Swedish security with a guarantee

NIBE guarantees robust Scandinavian quality and a long service life. Please note that the manufacturer’s full warranty is not applicable for units bought in Sweden and installed outside Sweden.

Safe business and delivery with Velltra Velltra is a pioneer in heat pumps and has over the years delivered thousands of units to satisfied customers across the EU. When you shop with us, your investment is safe all the way. All our shipments are always insured for transport, which guarantees extra fast and smooth handling if transport damage should occur.

Technical specifications

• Model: NIBE VPA 200/70
• Design: Double-jacketed accumulator tank and hot water heater
• Inner tank material: Sheet metal with copper lining
• Total volume: 260 liters (hot water heater approx. 204 liters, jacket approx. 76 liters)
• Hot water capacity 40 °C: 260 liters
• Energy efficiency class (domestic hot water): C
• Maximum operating temperature: 90 °C
• Maximum permissible operating pressure: 2.5 bar (outer jacket) / 10 bar (inner tank)
• Pipe connection: 28 mm
• Height: 1527 mm
• Diameter: 689 mm
• Net weight: 105 kg
• Color and surface finish: White, powder-coated steel sheet
