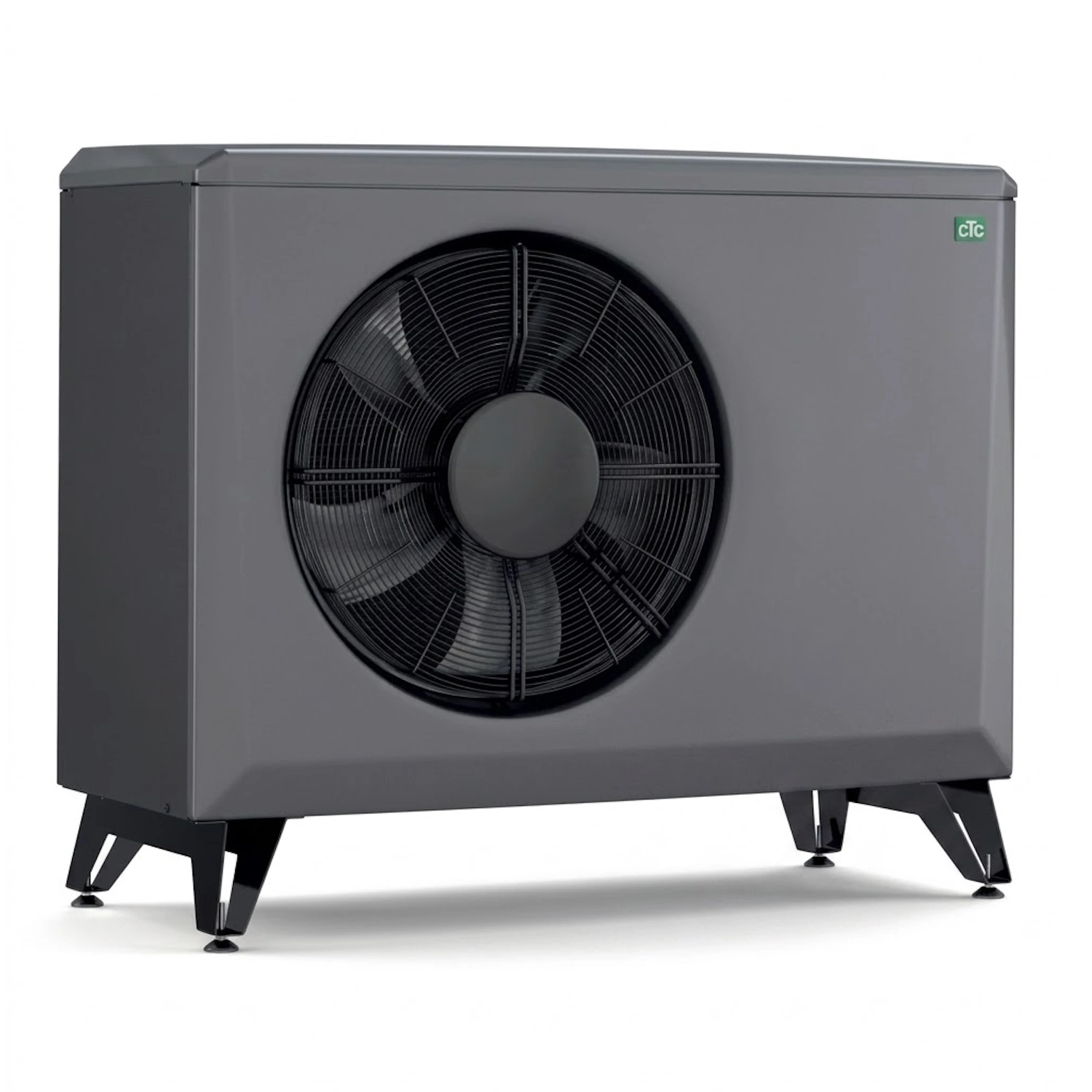

CTC EcoAir 610M Air/Water Heat Pump

Description

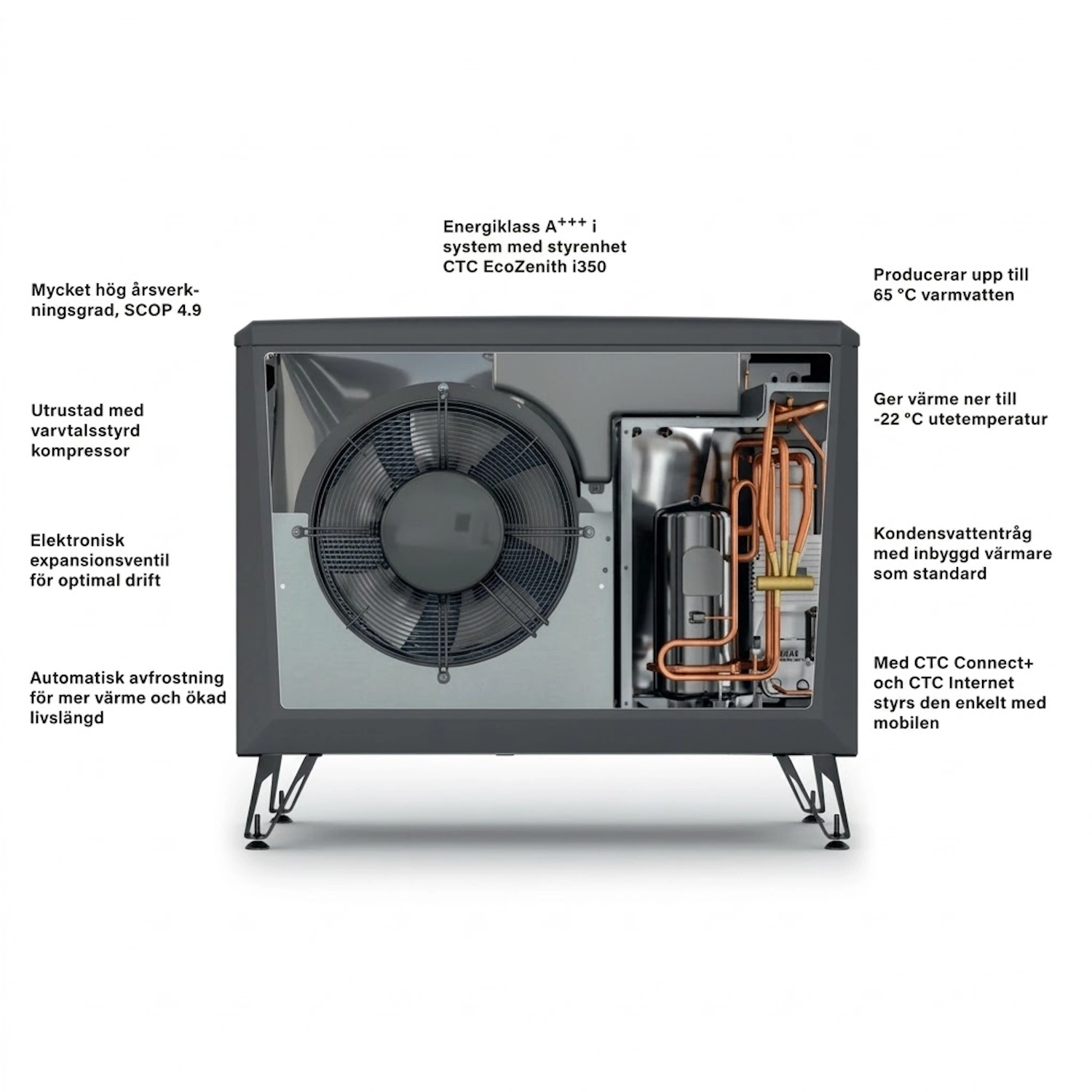

CTC EcoAir 610M is a highly efficient and speed-controlled air/water heat pump adapted to the Nordic climate. The intelligent inverter compressor continuously and automatically adapts its operation to the property's current power requirements throughout the year. When the heating requirement increases, the compressor speeds up, and when the requirement decreases, it speeds down. The stepless adaptation minimizes wear, optimizes electricity use and contributes to up to 80% lower heating costs.

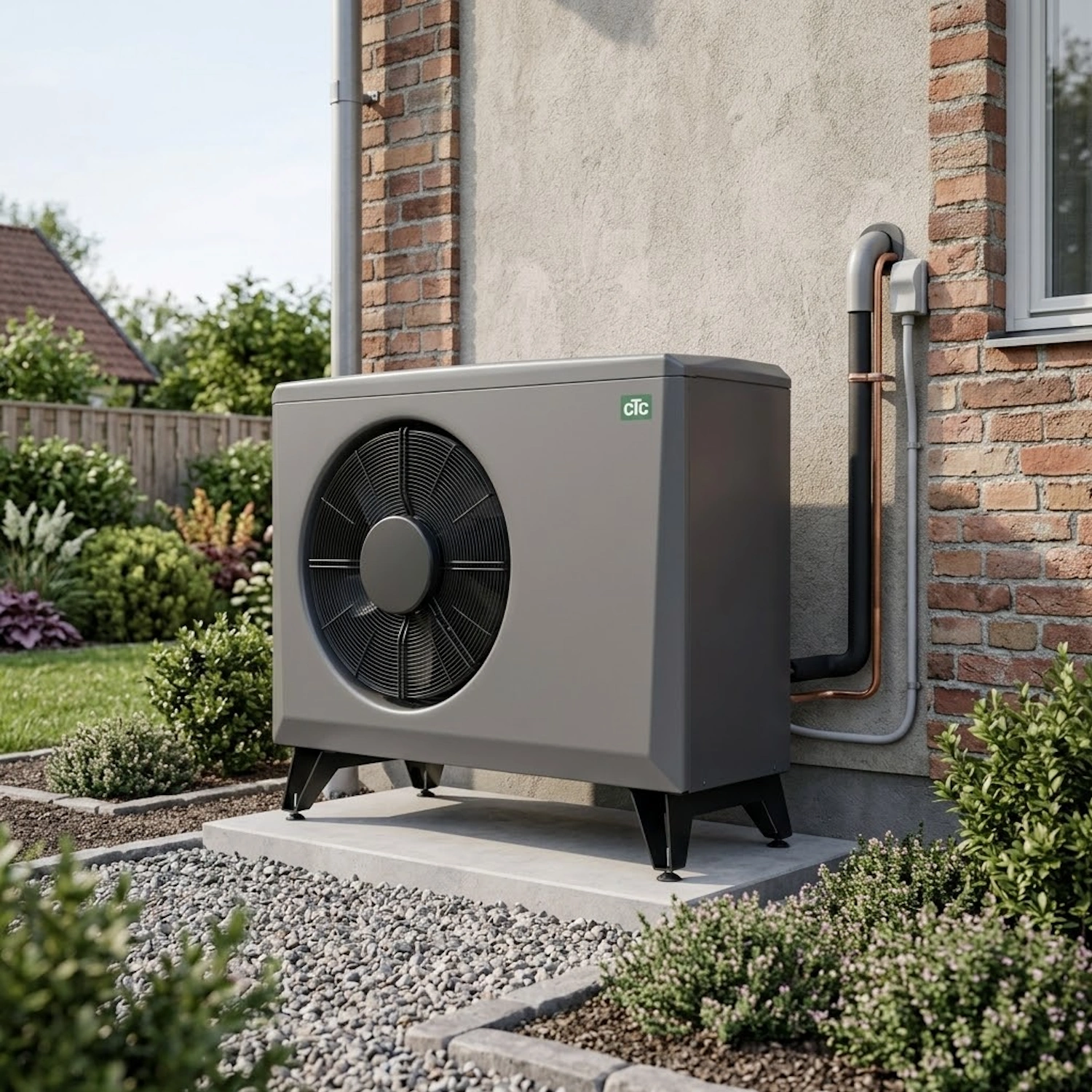

The heat pump harnesses the renewable energy in the outdoor air and transfers it to gentle heat and plenty of hot water without the need for boreholes or ground loops. The CTC EcoAir 610M can operate efficiently down to minus 22 degrees and delivers flow temperatures of up to 65 degrees. The unit operates exceptionally quietly thanks to careful acoustic damping and an aerodynamically optimized fan.

Well-thought-out design and reliable winter operation

To ensure trouble-free operation in winter, the CTC EcoAir 610M is equipped with demand-controlled automatic defrosting that provides maximum heating output and a longer service life. Under many outdoor pumps, condensation water easily freezes to ice, but this heat pump is delivered complete with an integrated, electrically heated condensation water tray as standard.

Flexible system integration and smart control

For optimal function and the highest possible efficiency, the CTC EcoAir 610M is installed together with an indoor module or control module.

• CTC EcoZenith i350 / i360: Indoor modules with integrated hot water preparation and a color touchscreen that makes temperature adjustments smooth and clear.
• CTC EcoLogic: Control module for flexible interconnection with existing boilers, storage tanks, solar panels or pool systems in up to four separate heating systems.

Technical specifications

• Power range: 2.5 to 10.0 kW (modulating inverter)
• Energy efficiency class heating system at 35 / 55 °C: A+++ / A+++ (together with control unit such as CTC EcoZenith i350)
• Energy efficiency class individual unit at 35 / 55 °C: A++
• Seasonal coefficient of performance (SCOP): 4.8 at average climate 35 °C (SCOP up to 4.9 depending on system conditions)
• COP (EN14511): 4.71 at W35 °C and outside air plus 7 °C (min rps)
• Operating range outdoor temperature: Down to -22 °C
• Maximum hot water temperature: Up to 65 °C
• Electrical data and connection: 400 V 3N~ 50 Hz
• Rated current (with speed control): 7.1 A (6.6 A)
• Recommended fuse: 10 A
• Protection class: IP X4
• Refrigerant: R407C (2.2 kg, GWP 1774, 3.903 tons CO2 equivalents)
• Maximum air flow: 3129 m³/h
• Sound power level LWA (EN12102): 53 dB(A)
• Sound pressure level LpA at 5 m: 34 dB(A)
• Sound pressure level LpA at 10 m: 28 dB(A)

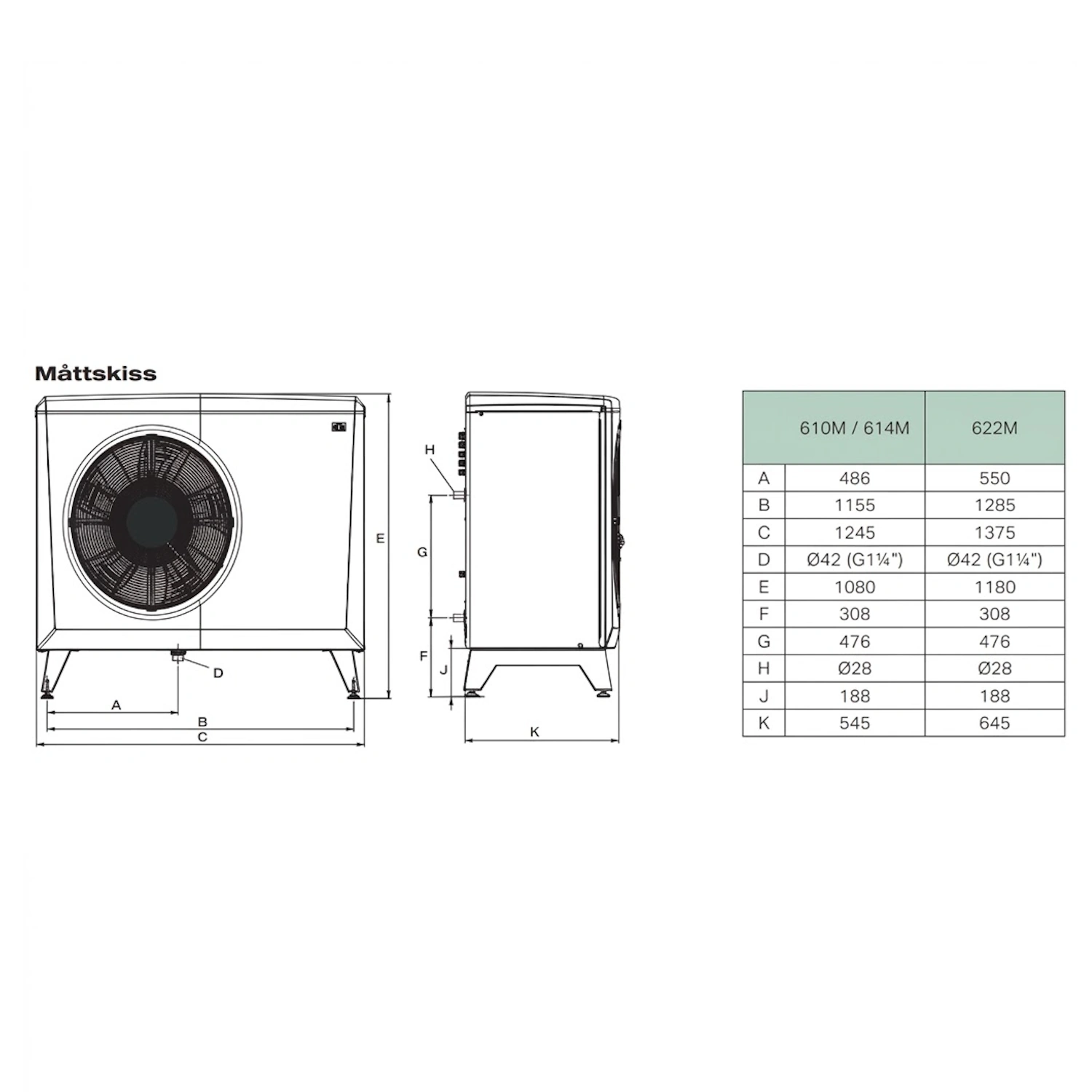

• Dimensions (depth x width x height): 545 x 1245 x 1080 mm
• Weight: 174 kg (packaged 204 kg)

Warranty and security

Please note that the manufacturer’s full warranty is not applicable for units bought in Sweden and installed outside Sweden. Velltra assures that all CTC products marketed and sold by us are manufactured in Sweden and contain components of the highest quality that are adapted for the Nordic market, i.e. No CTC products are imported that may have lower quality requirements that are adapted for other markets.

In addition to this, a 3-year product warranty and 3-year security insurance are included, which provides 6 years of overall security for private individuals and 5 years of security for legal entities. After that, Arctic offers annual extensions up to 16 years for air/water heat pumps.
