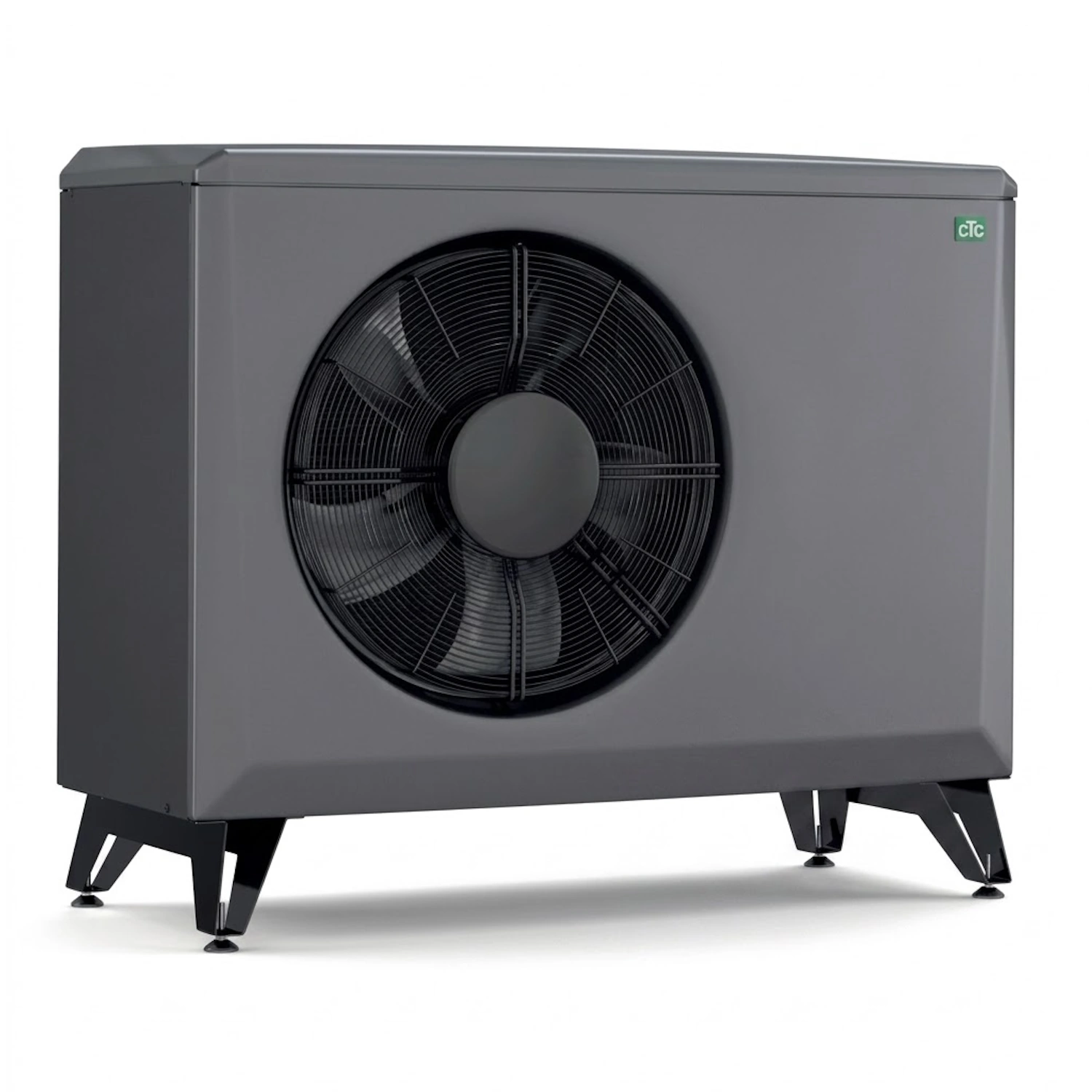

CTC EcoAir 622M Air/Water Heat Pump

Description

CTC EcoAir 622M is a speed-controlled air/water heat pump with high capacity, specially developed for larger villas, apartment buildings and smaller commercial and industrial properties. The modulating inverter compressor continuously adapts the output between 4.5 and 22 kW to the property's current heating needs in real time. The stepless adjustment minimizes unnecessary start and stop cycles, which reduces mechanical wear, extends the service life and optimizes energy use so that heating costs can be reduced by up to 80%.

The heat pump efficiently extracts the renewable energy in the outdoor air and transfers it to gentle heat and abundant hot water without the need for boreholes or ground loops. With a robust design adapted to harsh Nordic winter conditions, the unit delivers full heating comfort down to minus 22 degrees and provides supply temperatures of up to 65 degrees. The sound-dampened scroll compressor and the aerodynamic design of the fan also ensure very quiet and vibration-free operation.

Reliable winter operation and functional design

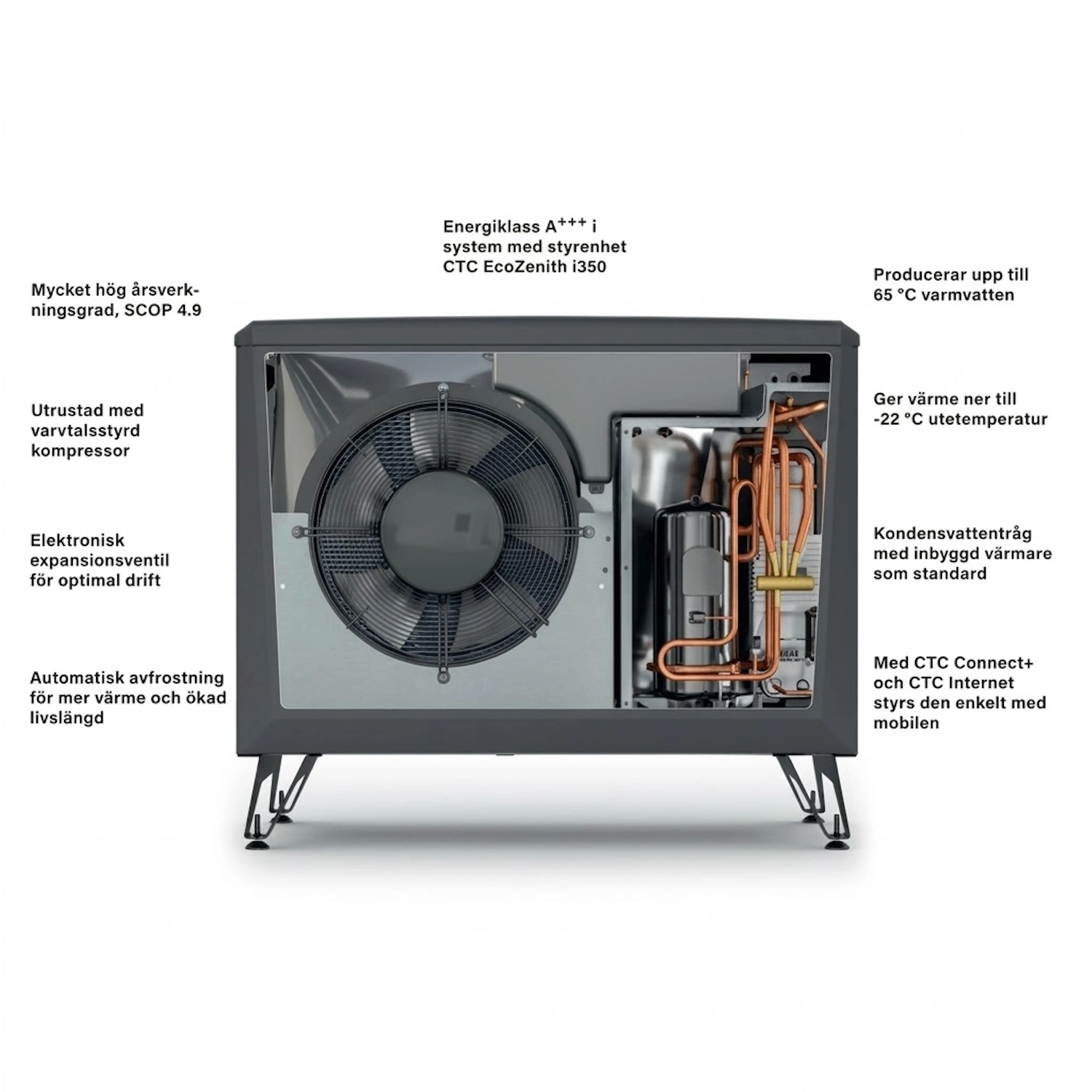

To ensure trouble-free operation in winter, the outdoor unit is equipped with demand-controlled automatic defrosting that maximizes output and saves energy. Condensation water is drained away via an integrated condensation water tray with built-in heater as standard, which prevents ice formation under the heat pump. The durable casing made of galvanized and painted steel sheet protects against the elements for a long time to come.

Flexible docking options and smart control

For optimal function and the highest possible savings, the CTC EcoAir 622M is docked with a suitable indoor or control module:

• CTC EcoZenith i555 Pro: Highly recommended for extra large hot water needs with a hot water capacity of over 600 liters.
• CTC EcoZenith i360: Indoor module with integrated hot water preparation and a color touch screen that makes temperature control and adjustment intuitive and clear.
• CTC EcoLogic: Advanced control system that enables control and monitoring of existing boilers, external buffer tanks, free cooling or pool systems in up to four different heating systems. For exceptionally large energy needs, up to ten units can be operated together in cascade.

Technical specifications

• Model: EcoAir 622M (Outdoor unit)
• Type: Outdoor air heat pump
• Power range: 4.5 to 22.0 kW (modulating inverter)
• Energy efficiency class heating system at 35 / 55 °C: A+++ / A+++ (together with control unit)
• Energy efficiency class single unit at 35 / 55 °C: A+++
• Seasonal coefficient of performance (SCOP) average climate at 35 / 55 °C: 4.9 / 3.8
• Seasonal coefficient of performance (SCOP) cold climate at 35 / 55 °C: 4.3 / 3.5
• COP (EN 14511): 5.07 at W35 °C and outdoor air plus 7 °C (min rps) / 2.32 at outdoor air minus 7 °C (max rps)
• Nominal heating capacity (EN 14511): 18.51 kW at plus 7/35 °C and 13.99 kW at minus 7/35 °C
• Nominal heating output Pdesignh (average climate / cold climate): 9 kW / 13 kW
• Hot water supply temperature: Up to 65 °C
• Outdoor temperature operating range: Down to minus 22 °C
• Electrical data and connection: 400 V 3N~ 50 Hz
• Rated current: 16.9 A (15.5 A with speed control in the control unit)
• Recommended fuse: 20 A (16 A with speed control in the control unit)
• Enclosure class: IP X4 / IP24 (approved for outdoor use)
• Refrigerant: R407C (2.7 kg, GWP 1774, equivalent to 4.790 tons of carbon dioxide equivalents)
• Maximum air flow: 5457 m³/h
• Sound power level LWA (EN 12102): 55 dB(A) at plus 7 °C and W35/55 °C
• Sound pressure level LpA at 5 m: 36 dB(A)
• Sound pressure level LpA at 10 m: 30 dB(A)

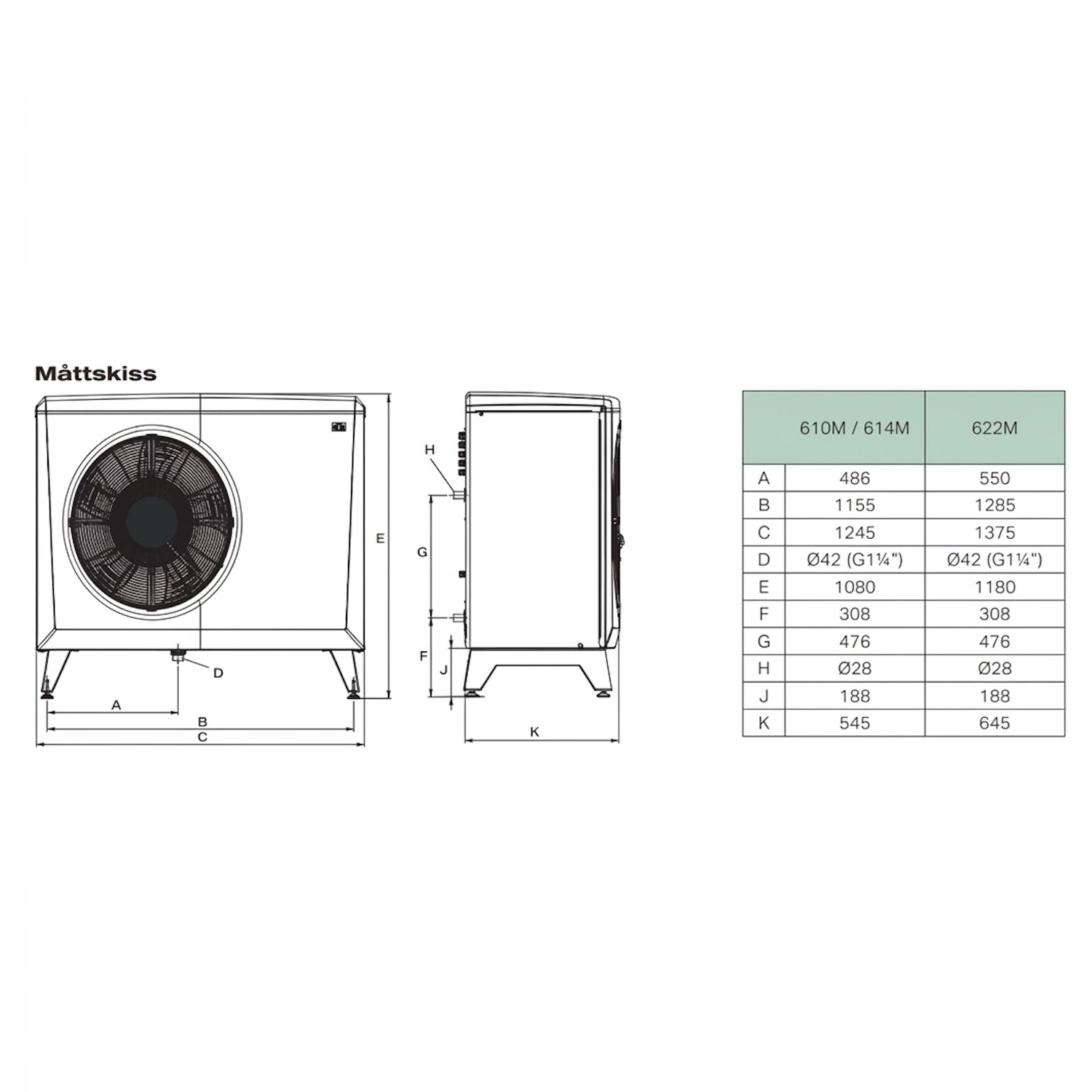

• Dimensions (depth x width x height): 645 x 1375 x 1180 mm
• Pipe connection: 28 mm
• Weight: 192 kg (packaged 226 kg)

Warranty and security

Please note that the manufacturer’s full warranty is not applicable for units bought in Sweden and installed outside Sweden. Velltra assures that all CTC products that are marketed and sold by us are manufactured in Sweden and contain components of the highest quality that are adapted for the Nordic market, i.e. No CTC products are imported that may have lower quality requirements that are adapted for other markets.
